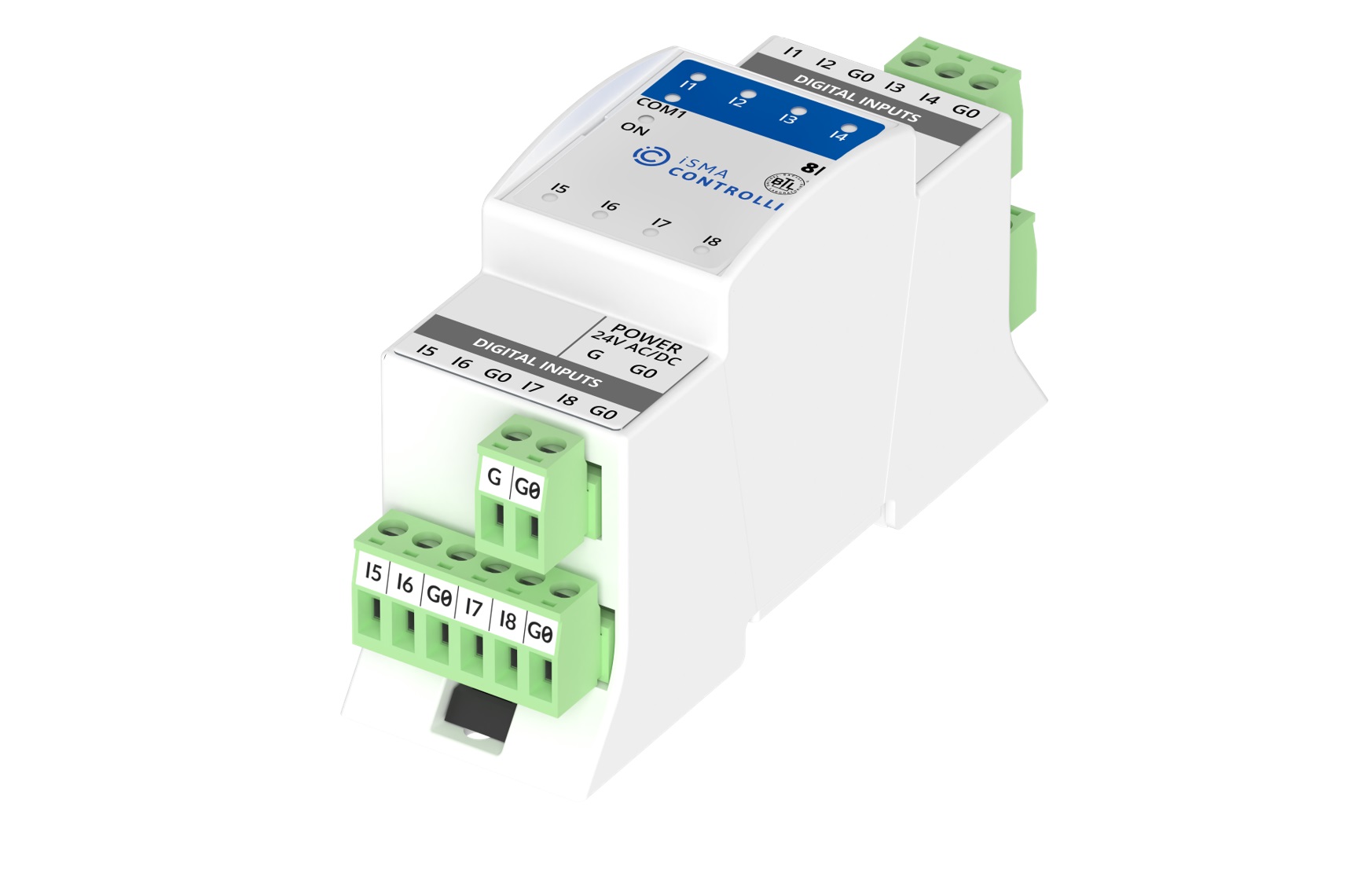

iSMA-B-8I | RS485 IO Module, 8DI
£186.00
iSMA-B-8I is one of our most popular IO modules. It can be used as an IO module or as a pulse counter in metering projects. Our clients use it for large submetering projects due to its cost as well as in data centre alarm monitoring.
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
iSMA-B-8I | RS485 IO Module, 8DI
This module is fully compatible with any Modbus or Bacnet system, including the following: Tridium Jace3, Jace6, Jace8000Compatible, Trend IQ3, IQ4 Bacnet IPCompatible, Siemens PX range, Cylon Bacnet controllers, Schneider Electric StruxureWare Bacnet controllers, OSS NeOSS building management controller, Priva Blue ID, Distech EC Bos, DELL EDGE GATEWAY 5000, Compatible with any Honeywell Centraline Hawk, Delta Controls Compatible IO Modules
Inputs & Outputs:
8x Digital Inputs (8DI)
- Dry contact inputs
- Fast pulse counter up to 100Hz
Platform
- Cortex-M3
Communication
- Interface RS-485 half-duplex
- Up to 99 devices on the bus
- Protocols: MODBUS or BACnet
- Baud rate: 2400 to 115200 bps
Power supply
- 24V AC/DC
Housing
- Dimension: 35x110x62 mm.
- Construction: plastic, self-extinguishing (PC/ABS)
- DIN rail mounting (DIN EN 50022 norm)
- Cooling: internal air circulation
Environments
- Operating temperature: -10C to 50C
- Storage temperature: -40C to 85C
- Relative humidity: 5 to 95%, no condensation
- Ingress Protection Rating: IP40 for indoor installation
Additional information
| Weight | 0.50 kg |
|---|
