iSMA-B-LP-H-1

£180.00

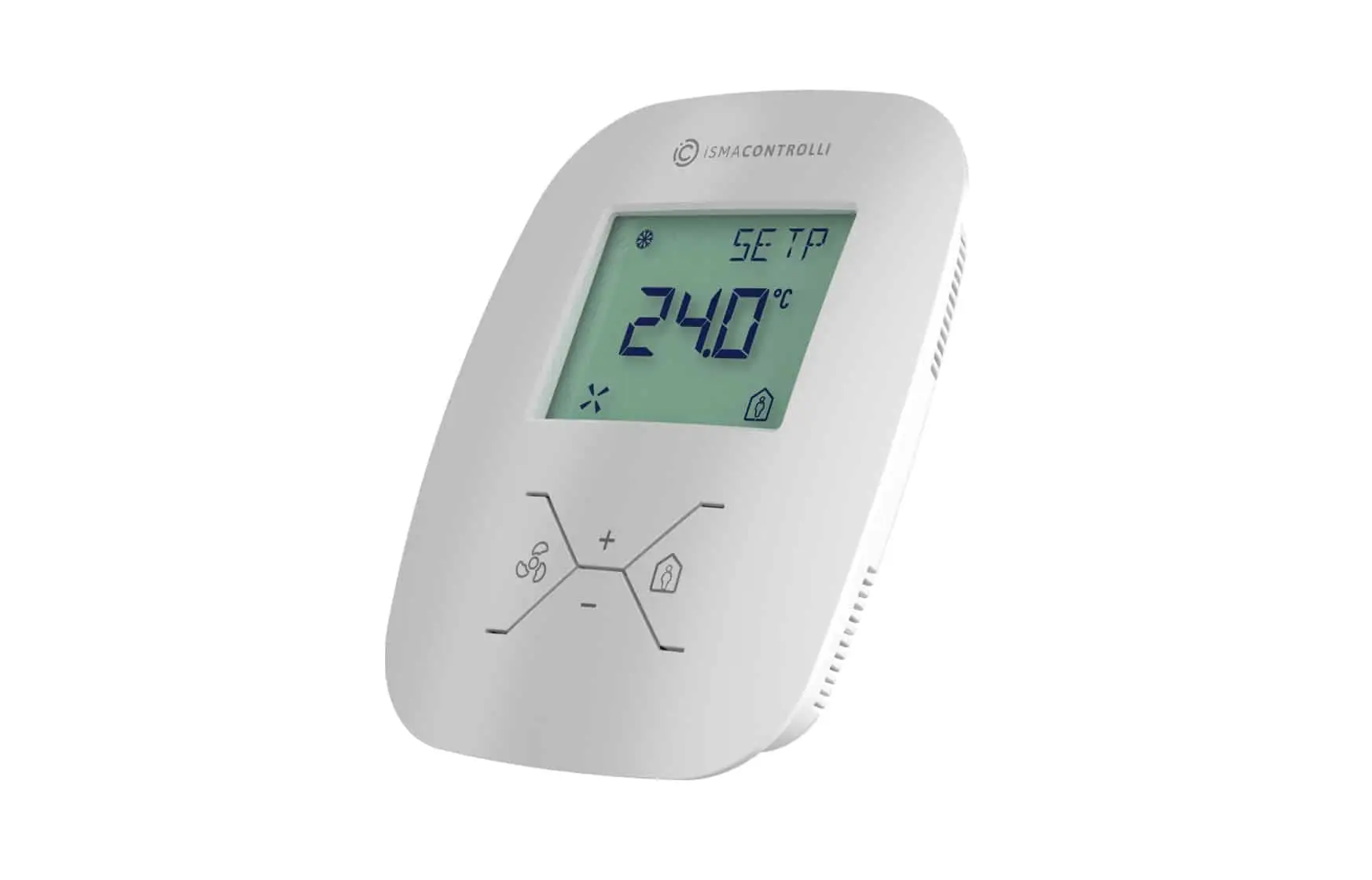

iSMA-B-LP-H-1 is a room unit with 2.3 LCD display and four function buttons.

- +

⚡ Electrical Calculator

🔌 Cable Size Reference

🌬 Unit Converter

🔋 Transformer VA & MCB Calculator

📊 Reference Guide

Current (A)Cable Size (mm²)
61
6-121.5
12-252.5
25-324
32-406
40-6410
You must consider Ambient Temperature, Location and Thermal insulation in contact with cable.
Category: Tags: , Brand:

Description

iSMA-B-LP-H-1 is a room unit with a 2.3 LCD display and four function buttons. Additionally, the room unit has built-in temperature and humidity sensors.

iSMA-B-LP-H-1 is powered with 24 V AC/DC and has the built-in ¬†RS485 port (Modbus RTU/ASCII). Using an open communication protocol allows the room unit to connect to any controller that supports Modbus RTU/ASCII. Together with the iSMA-B-FCU controller, the room unit allows changing basic parameters, such as the temperature setpoint, fan speed, FCU mode, and others.

Thanks to the built-in USB port, firmware updates and room unit configuration can be performed without a power supply. iSMA-B-LP-H-1 has a modern design and is available in different colours (white is the standard colour) upon the client’s request.

HVACProducts.co.uk

iSMA-B-LP_Datasheet_V1.3-2
iSMA-B-LP_Installation_instruction_V1.0-1

Additional information

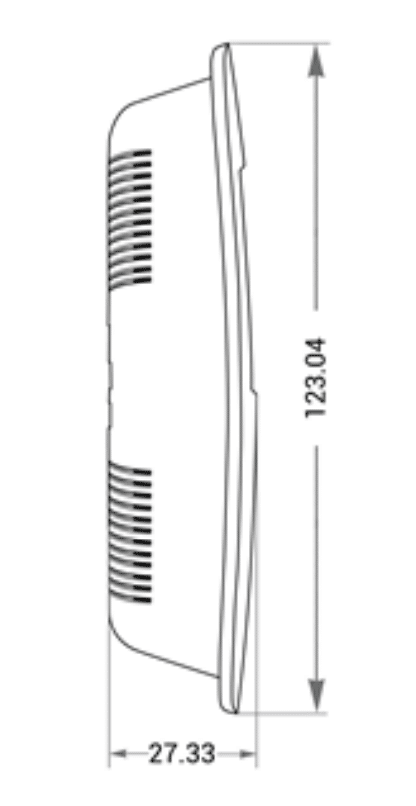

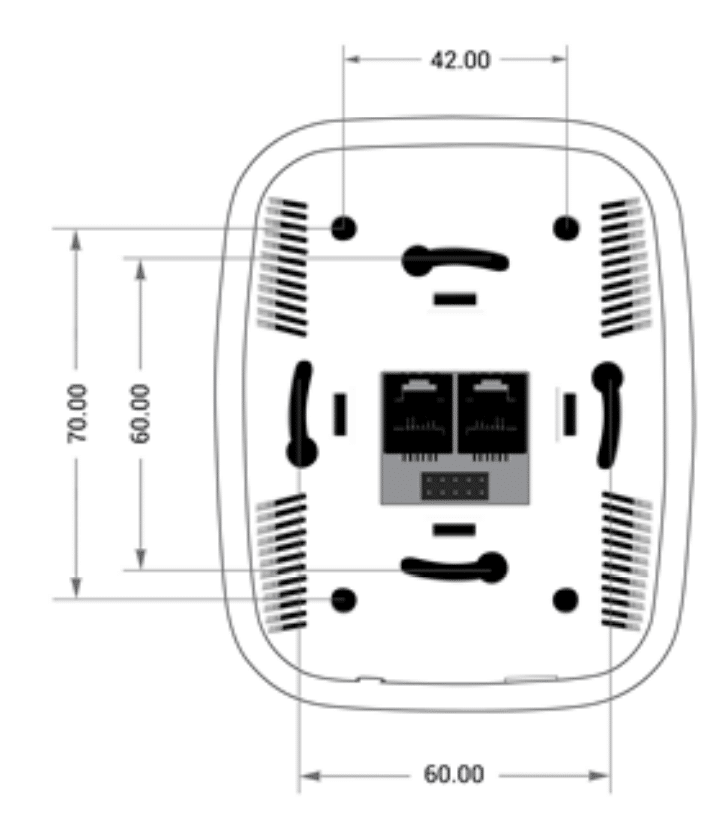

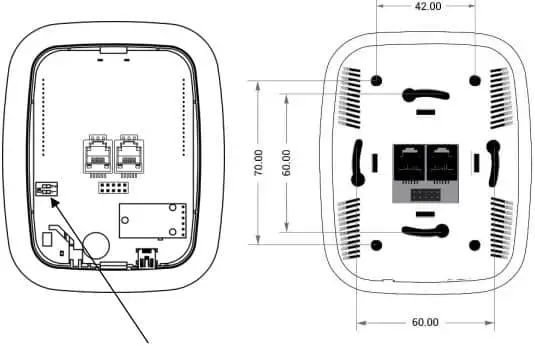

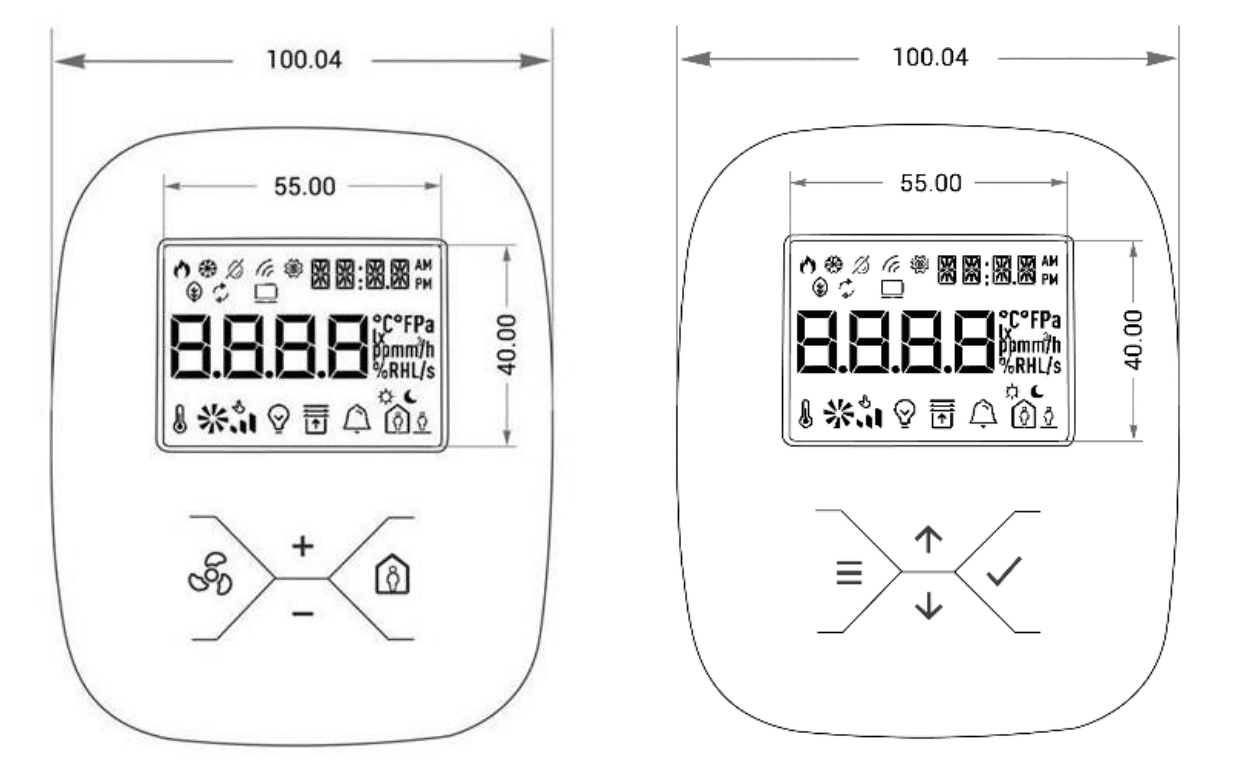

Dimensions 8.6 × 8.6 × 1.45 cm
Colour

TP-DISP-W – White, TP-DISP-B – Black
