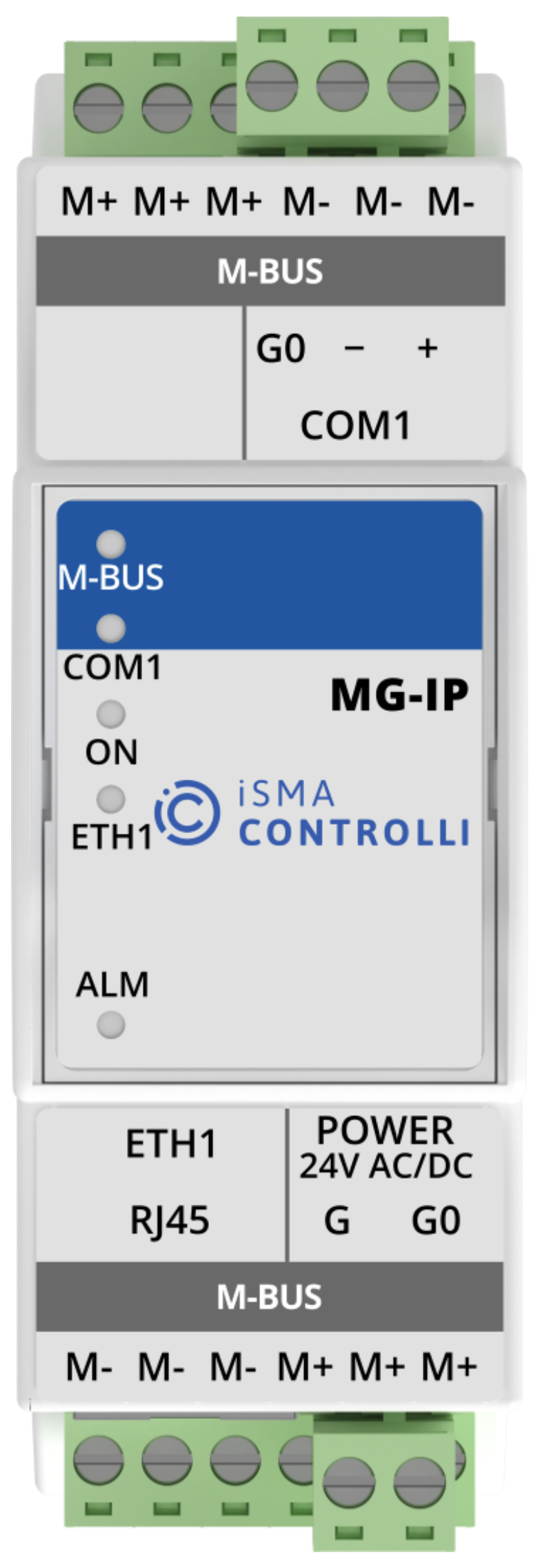

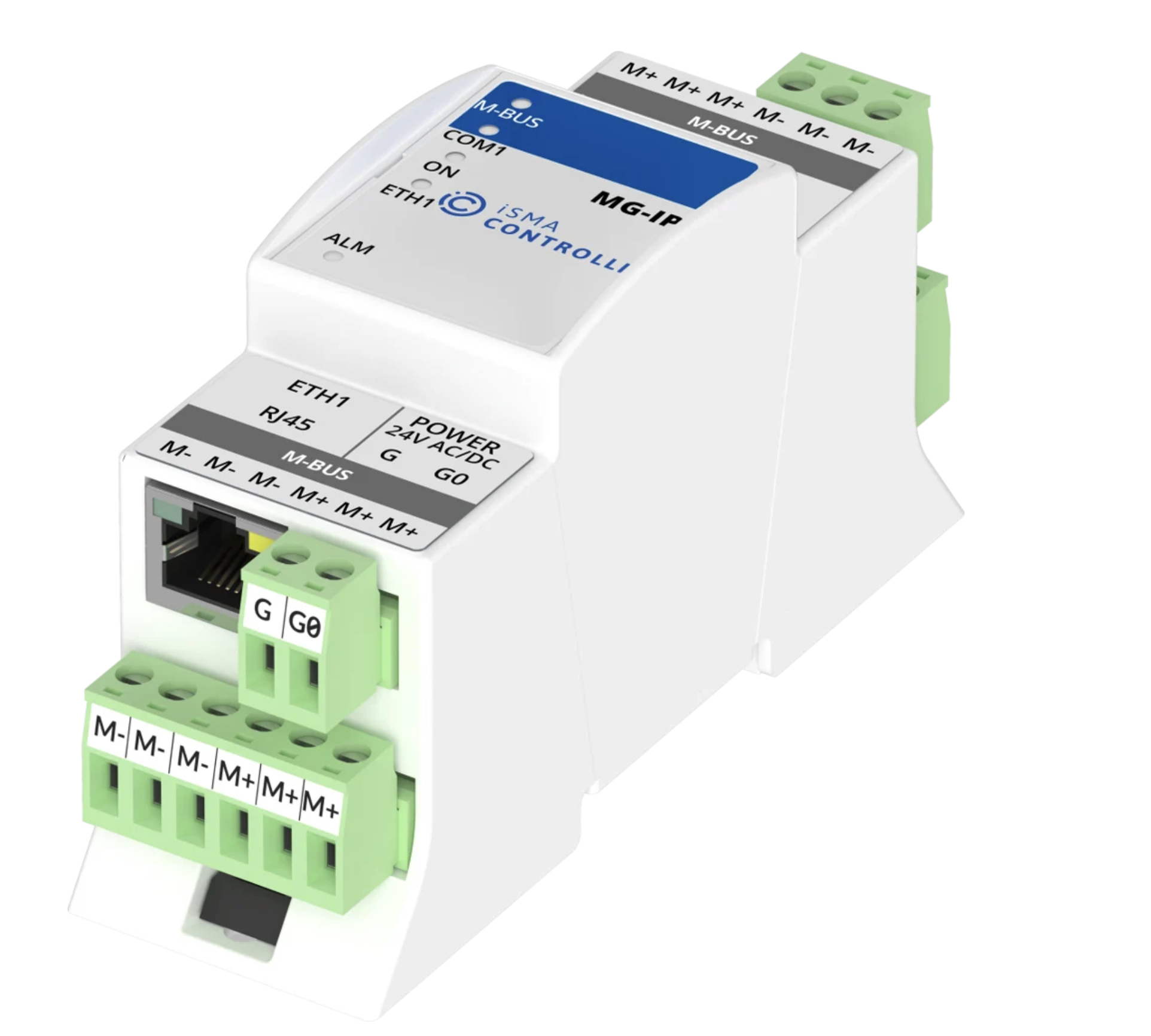

iSMA-B-MG-IP

Our new iSMA-B-MG-IP has been designed to simplify the connection between the meter installation and the BMS. By applying the most popular interfaces for M-Bus and Modbus meters. iSMA-B-MG-IP allows handling up to 188 meters of various types simultaneously.

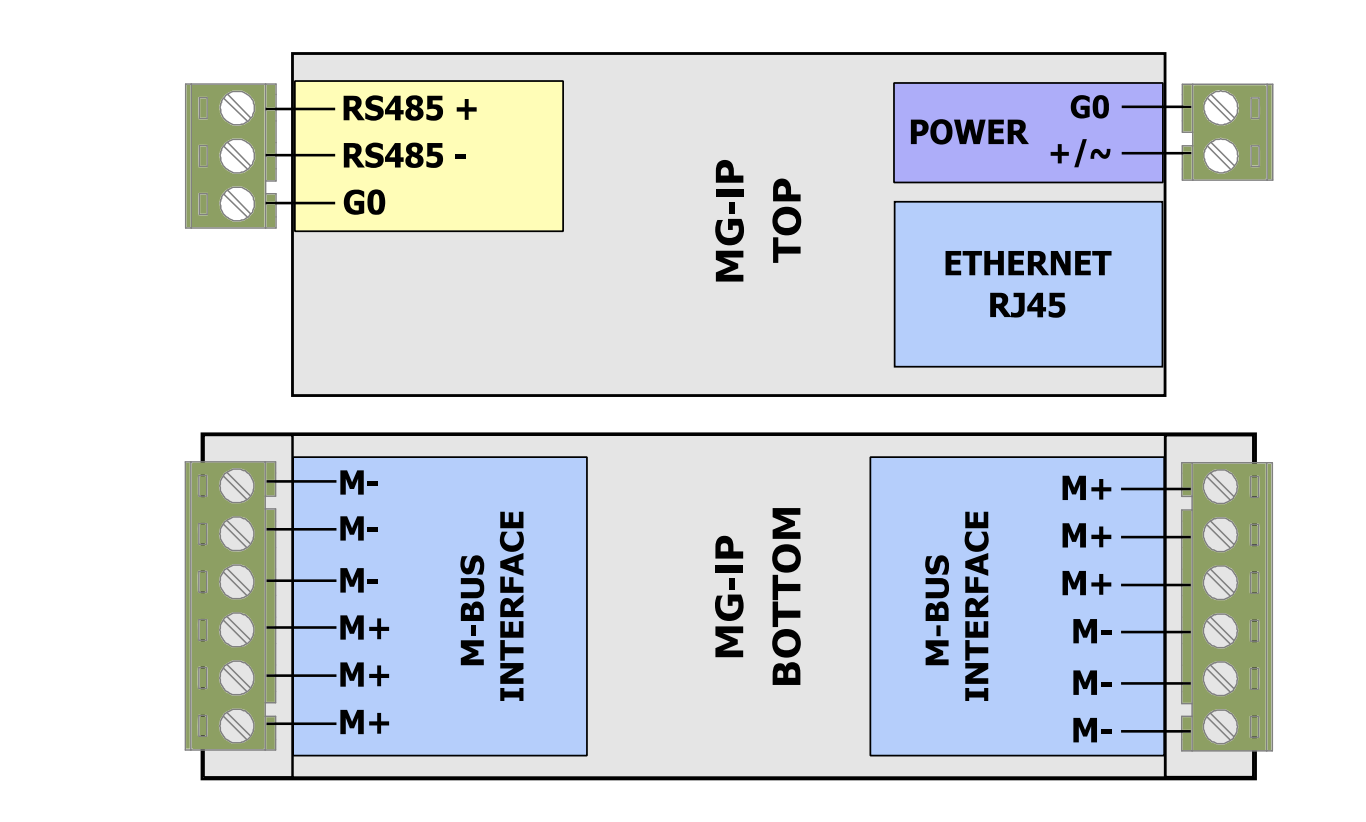

The M-Bus interface supports communication and power supply for up to 60 M-Bus meters. The RS485 interface supports up to 128 Modbus devices. The device address and baud rate for Modbus are set by using DIP switches. The built-in TCP/IP interface enables the use of the existing LAN infrastructure and allows building scattered-meter monitoring systems.

iSMA-B-MG-IP device configuration is possible via the built-in web services and a free tool such as iSMA_Configurator_Datasheet_DBL632en_V1.6.

Key Features

• M-Bus TCP/IP and UDP/IP to M-Bus gateway
• Modbus TCP/IP to Modbus RTU/ASCII gateway
• Up to 188 meters (devices) of various types (60 Mbus and 128 Modbus)
• Two independent gateways operating simultaneously in one device
• Built-in power supply for up to 60 M-Bus meters (devices)
• Direct connection for up to 6 M-bus branches
• Built-in Mini USB port for configuration and firmware updates
