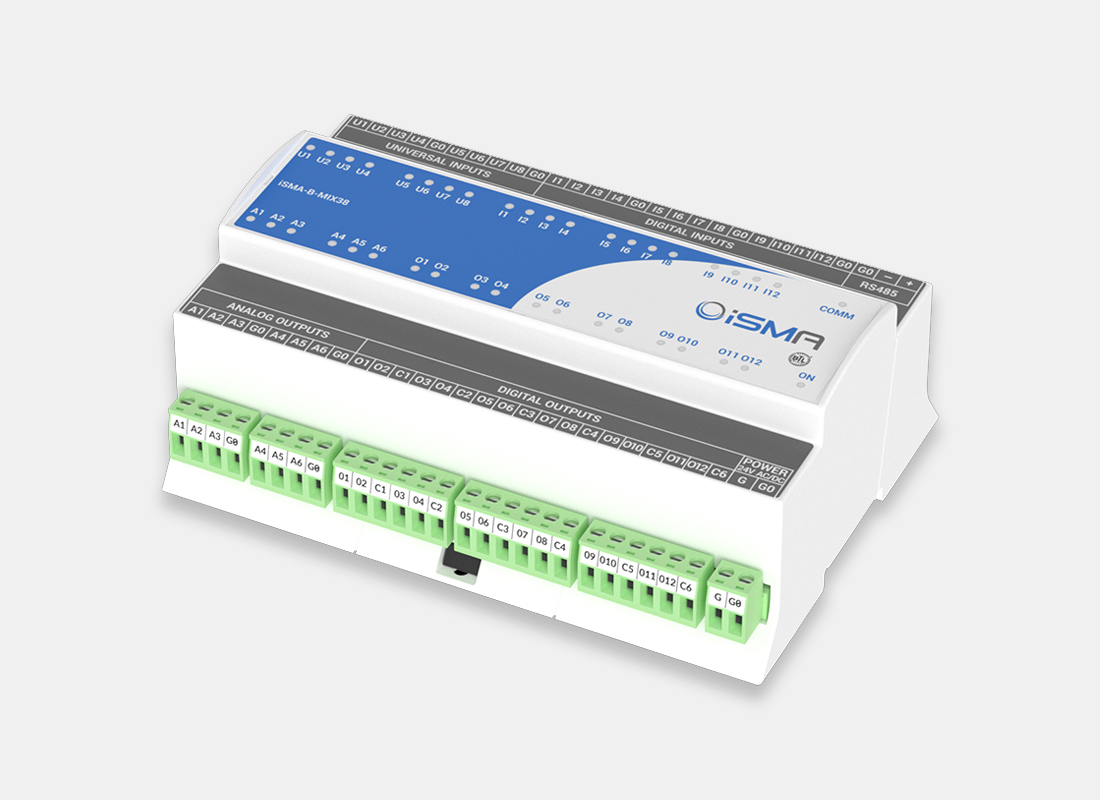

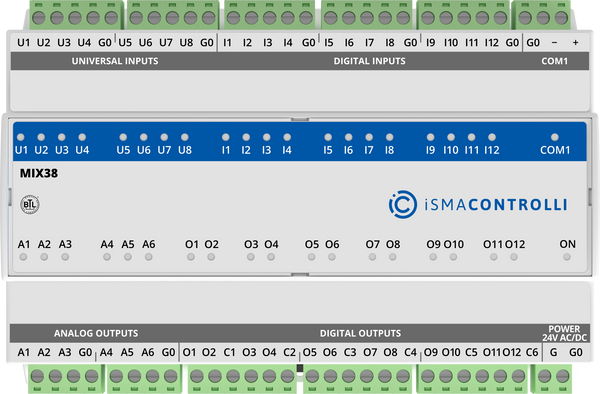

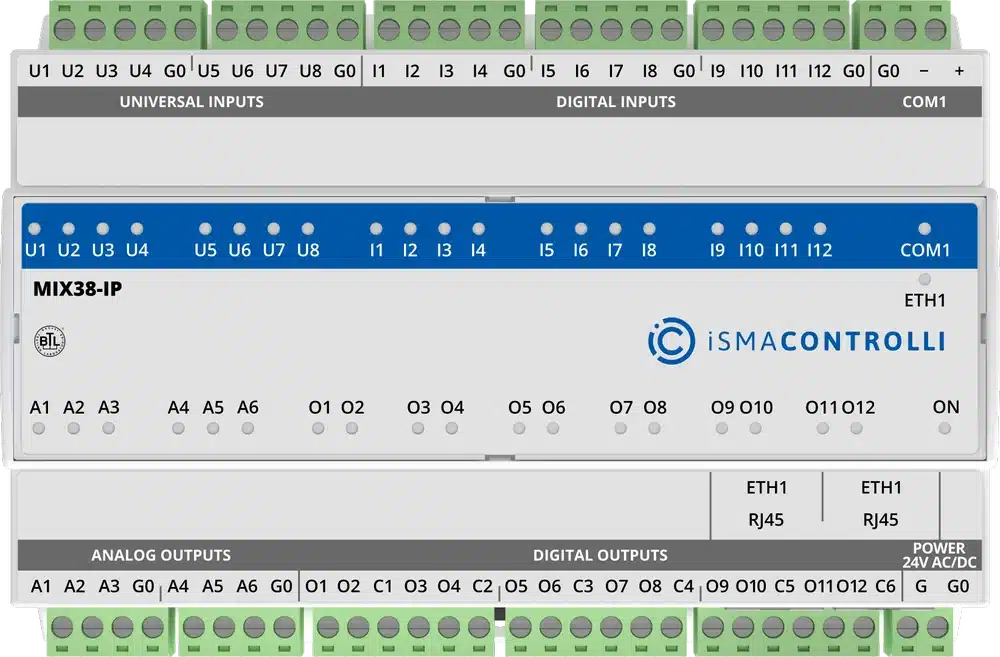

iSMA-B-MIX38

One of the easiest to set up and most flexible IO Modules on the market. This module provides the best value per point with the lowest footprint and will make you deliver any BMS project on time and on budget. The module has 8 Universal Inputs, 12 Digital Inputs, 6 Analogue Outputs, and 12 Digital Outputs, and is ideal for larger projects.

This module is fully compatible with any Modbus or Bacnet system, including the following: Tridium Jace3, Jace6, Jace8000 Compatible, Trend IQ3, IQ4 Bacnet IP Compatible, Siemens PX range, Cylon Bacnet controllers, Schneider Electric StruxureWare Bacnet controllers, OSS NeOSS building management controller, Priva Blue ID, Distech EC Bos, DELL EDGE GATEWAY 5000, Compatible with any Honeywell Centraline Hawk, Delta Controls Compatible IO Modules

Inputs & Outputs

8xUniversal Inputs (8UI)
All universal inputs have 16-bit resolution, which supports the following types of inputs:

• Temperature input support the following types of sensors: 10K3A1, 10K4A1, Carel 10K, 20K6A1, 2.2K3A1, 3K3A1, 30K6A1, SIE1, TAC1, SAT1, Pt1000, Ni1000
• For sensor Pt1000 and Ni1000 use only 16bit resolution
• Voltage input 0-10VDC: input resistance 100k accuracy 0,1% measurement resolution 3mV@12bit and 1mV@16bit
• Current input 0-20mA -Required external resistor: 200, sold separately
• Resistive input 0-1000k: measurement resolution for 20k load 20@12bit and 1@16bit
• Dry contact input

12xDigital Inputs (12DI)

• Dry contact inputs
• Fast pulse counter up to 100 Hz

6xAnalog Outputs (6AO)
All analogue outputs are equipped with a 12-bit ADC that provides 10 mV resolution and accuracy of less than 0,5%. They support the following output types:

• Output 0-10V DC, maximum load up to 20mA
• PWM: 0,01Hz, 0,1Hz, 1Hz, 10Hz, 100Hz

12xDigital Outputs (12DO)

• Relay output (NO) max. 3A, 250 VAC/30 VDC

Platform

• Cortex-M3

Communication

• Interface RS-485 half-duplex
• Up to 99 devices on the bus
• Protocols: MODBUS or BACnet
• Baud rate: 2400 to 115200 bps

Power supply

• 24V AC/DC

Housing

• Dimension: 160x110x62 mm.
• Construction: plastic, self-extinguishing (PC/ABS)
• DIN rail mounting (DIN EN 50022 norm)
• Cooling: internal air circulation

Environments

• Operating temperature: -10C to 50C
• Storage temperature: -40C to 85C
• Relative humidity: 5 to 95%, no condensation
• Ingress Protection Rating: IP40 for indoor installation
