Cable, FCU Controllers, Room Controllers
iSMA-B-RJ12-RJ45
Price range: £14.00 through £21.00
Please select the cable length from the options below.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description

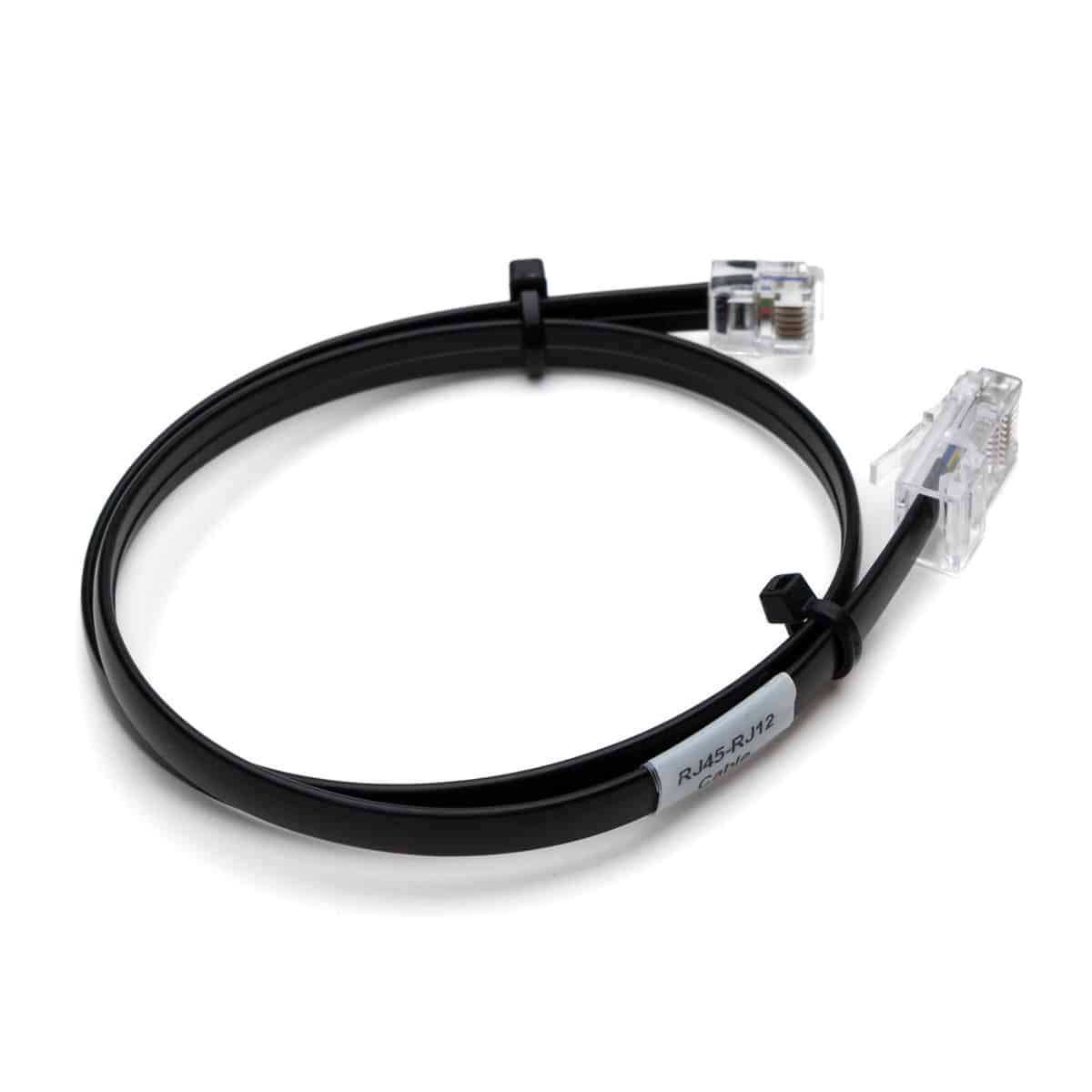

iSMA-B-RJ12-RJ45 is used to link the touch point back to the FCU controller.
The LP display range from iSMA uses an RJ12 connector, but the TP new range supports an RJ45 or a separate 4-wire connector.
Here is a quick reference for the pinouts
You have a fan coil controller and maybe an LP display, both of which use an RJ12 6-wire connector.

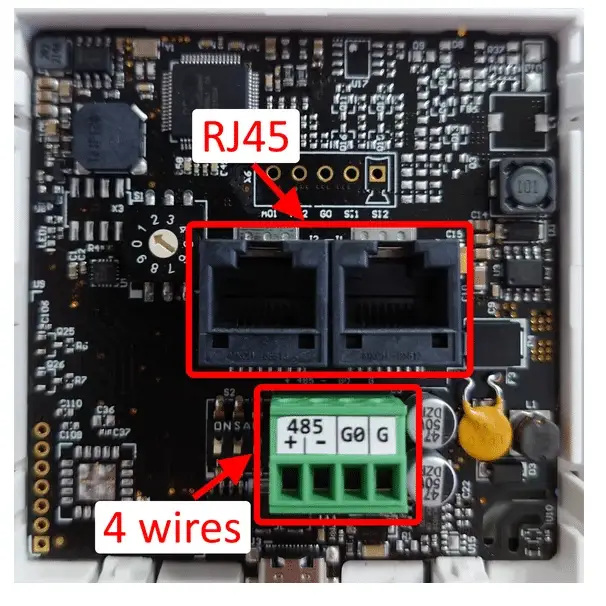

You get your new TP display, and you have an RJ45 connector, or you can split the wires and connect the G, G0, + and –
bmsparts.co.uk
Here is a reference for you of the pinouts of the RJ12 connector and the new RJ45 connector, without having to check the docs.
bmsparts.co.uk
Additional information
| Cable Length |
10 Meters, 15 Meters, 20 Meters, 5 Meters |
|---|
