Liquid Differential Pressure Sensor 0/10Vdc
£340.00
Please select the pressure range from the below options
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description

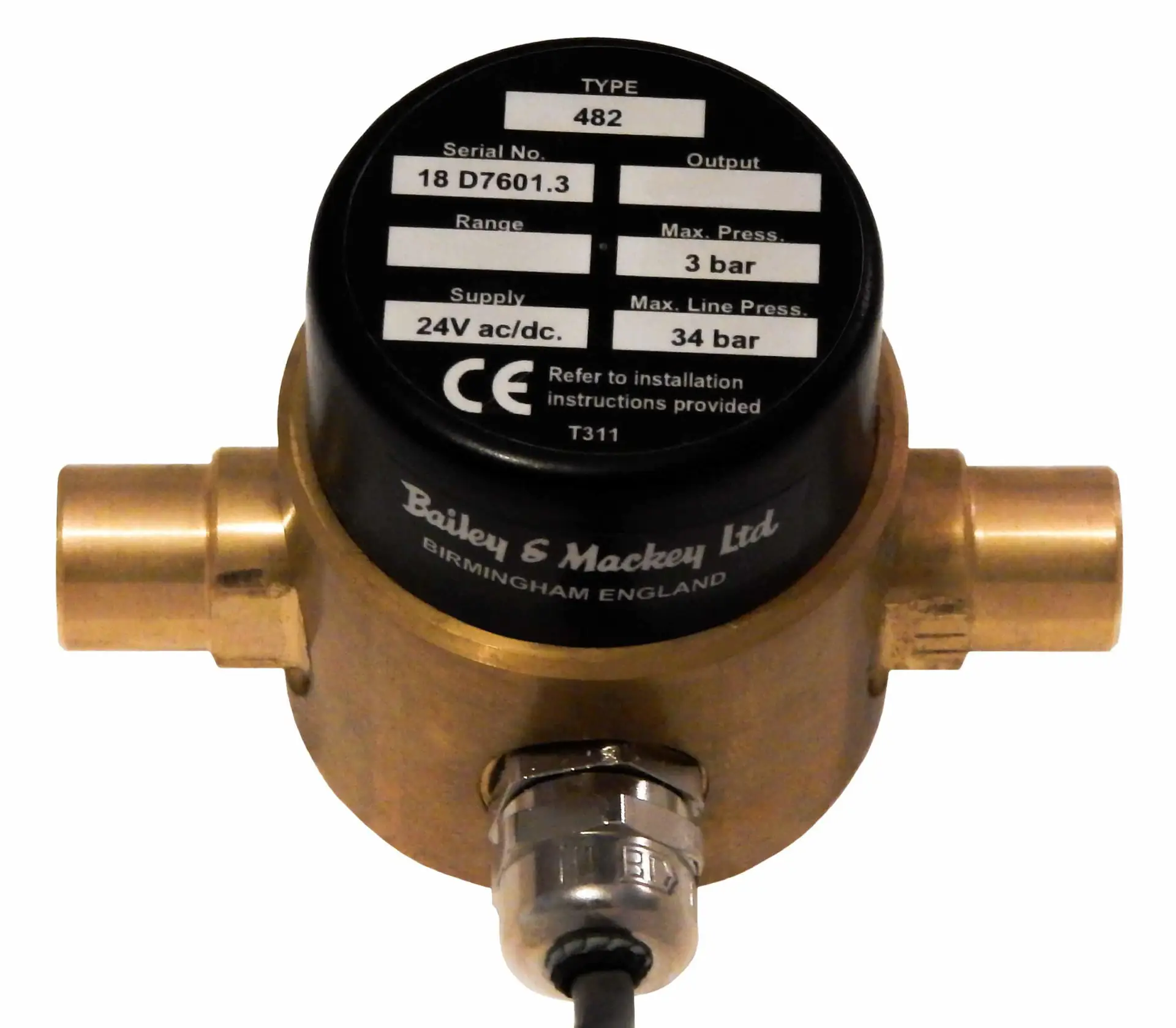

The 482 range of Liquid DP sensors uses a piezo-resistive sensor and incorporates zero and span adjustment.
They are ideal for use in areas requiring precise pressure measurement, low hysteresis, and long-term stability in all applications where air, oil, or water is to be monitored.
Specification

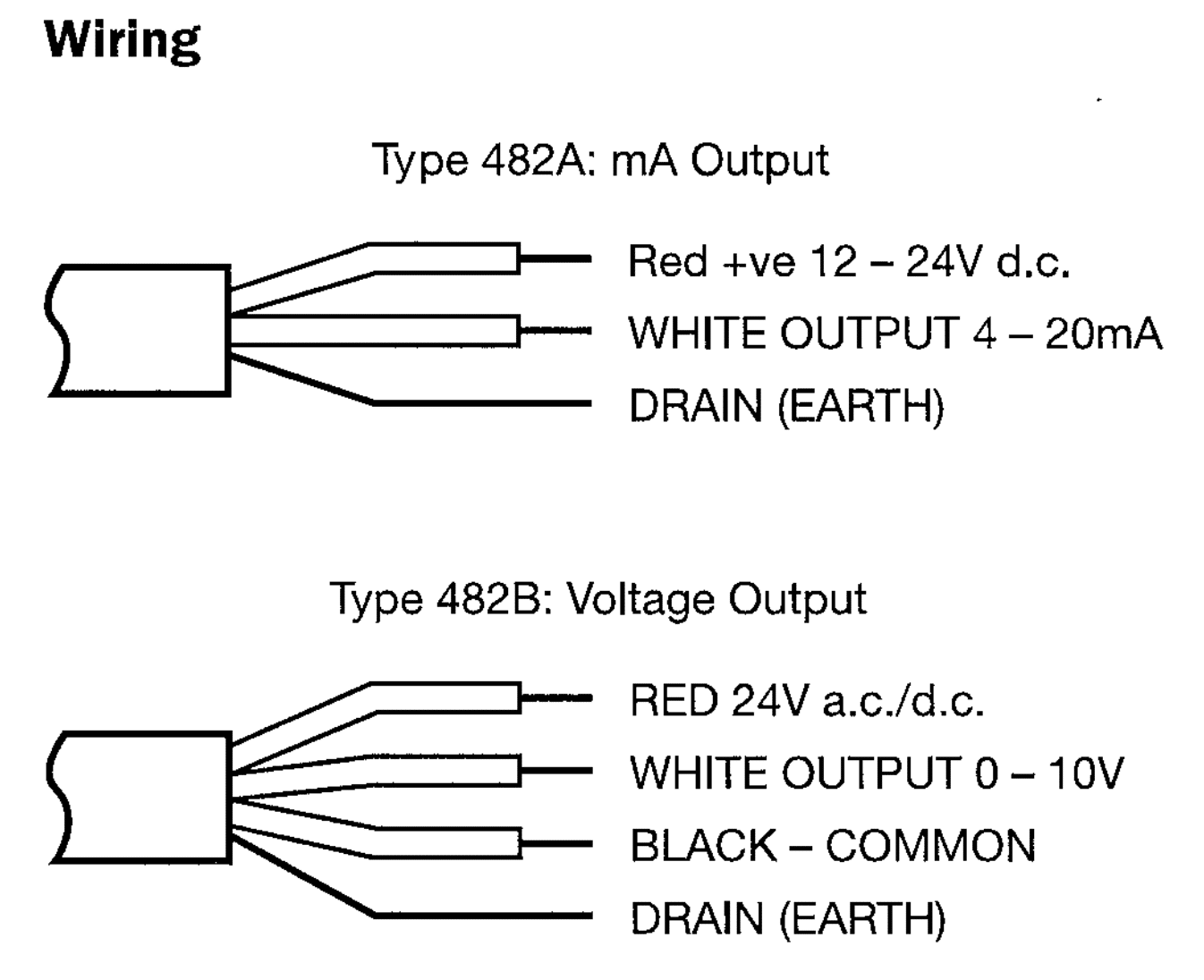

Output Signal: 0…10Vdc 3 wire
Power Supply: 24Vac/dc
Pressure Ranges: Select Range
Over Pressure: 1.5 x FS
Accuracy: 0.25% FS
Repeatability: 0.2% FS/Year typical
Pressure Connection: ⅛” BSP female
Temperature: -20…+80˚C
Humidity: 0…80% RH
Additional information
| Weight | 0.39 kg |
|---|---|
| Dimensions | 16 × 11 × 6 cm |
| Pressure |
0-0.4 Bar, 0-1 Bar, 0-2 Bar, 0-4 Bar, 0-7 Bar, 0-10 Bar |
