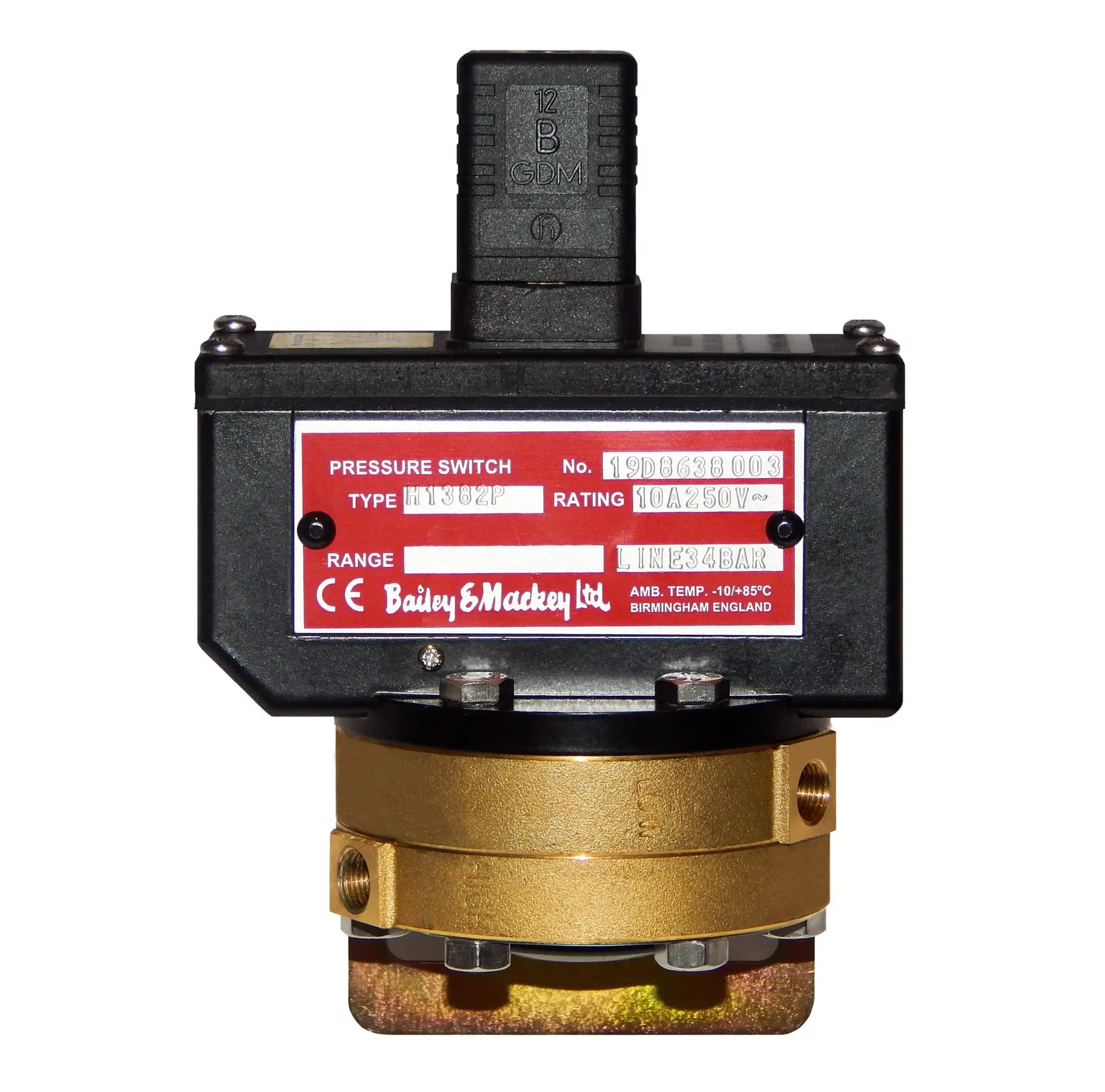

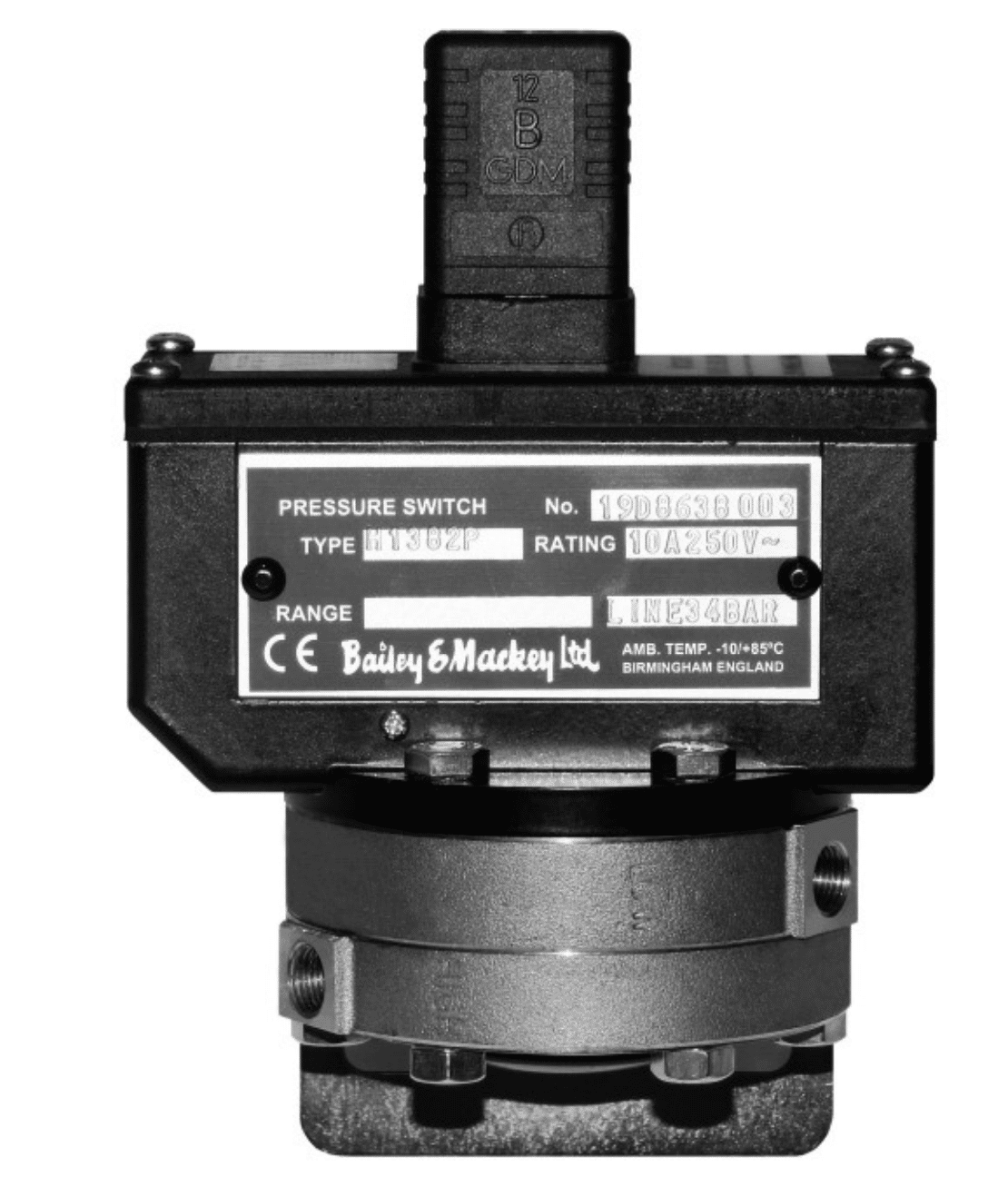

Liquid Differential Pressure Switch
£290.00
Please select the required pressure range from below
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
This series of pressure switches is used to monitor the difference between two pressures. For example, they can be used to monitor filter conditions and signal when the filter is becoming blocked. They can also be used as flow monitoring switches if used across orifice plates etc.
Max. Line Pressure
Pressure range >250mbar …………….34 bar
Pressure range <125 mbar …….….….. 14 bar
Electrical Ratings
10 amp at 250V 50Hz Inductive load
1 amp at 30V dc Inductive load
For other voltages and currents, please consult our technical department.
Overload

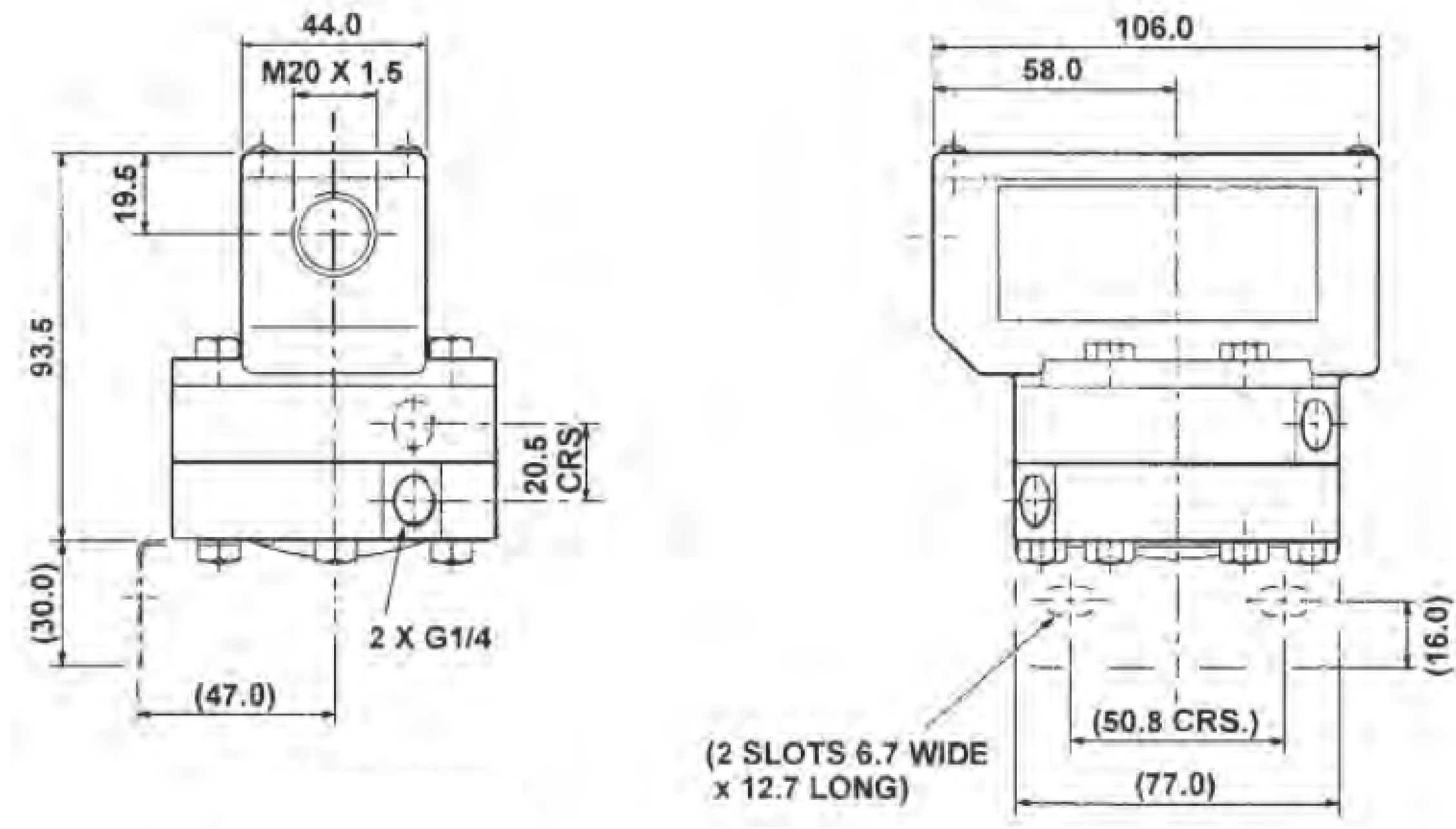

Dimensions of the diaphragm housing are such that the movement of the diaphragm is stopped when the diaphragm exceeds the range.
This ensures that the differential pressure switches will accept the accidental application of 4 times the range without damage except for a possible setting shift of up to 2 % of the range.
It is possible to modify these switches to accept full line pressure on one side of the diaphragm.
Manual
Differential Pressure Switches Series 1000
Business & Industrial > Automation Control Components
Additional information
| Weight | 0.39 kg |
|---|---|
| Dimensions | 16 × 11 × 6 cm |
| Pressure |
0.07-1 Bar, 0.2-4 Bar, 0.5-11 Bar, 2-28 Bar, 5-125 MBar, 15-250 MBar, 25-400MBar |
