Liquid Pressure Switch -0.5-6 bar
£41.00

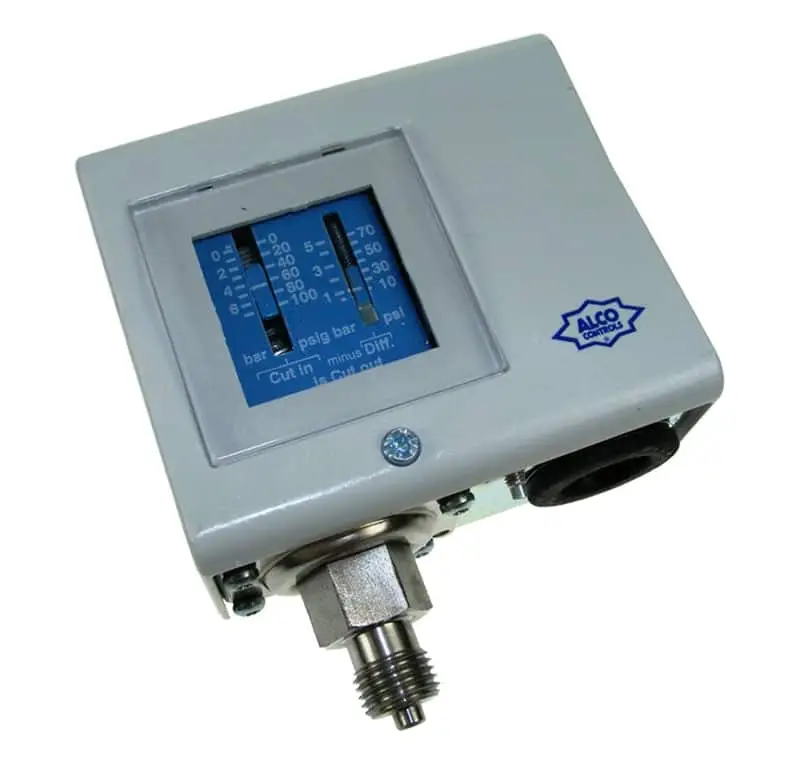

PS1 Liquid Pressure Switch -0.5-6 bar
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
The PS1 is a cost-effective pressure switch suitable for monitoring pumps, chillers, valves, and other equipment. The unit has an adjustable setpoint with an adjustable differential and has a gauge to show the liquid pressure.
Specification
Range: 0.5…6 bar
Differential: 0.5…4 bar
Pressure Connections: ¼” BSP male
Contact Rating: 12Amps @ 230Vac
Protection: IP44
Ambient Temperature: -50…+70°C
Liquid Temperature: -50…+70°C
Dimensions: 80 x 63 x 48mm
Additional information
| Weight | 0.40 kg |
|---|---|
| Dimensions | 8 × 7 × 5 cm |
| Pressure | 20-300Pa, 50-500Pa, 200-1000Pa |
