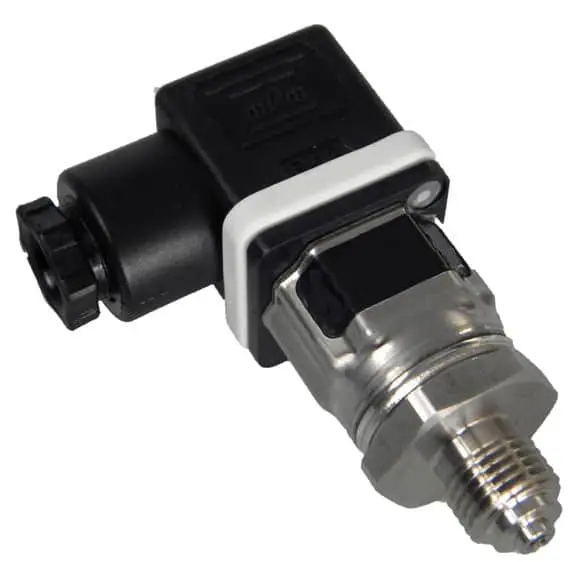

Liquid Static Pressure Sensor 4-20mA

The PT603 range of Liquid Pressure sensors uses a piezo-resistive sensor and incorporates an IP65 connector for wiring with a ¼” BSP threaded connection. They are ideal for applications requiring precise pressure measurement, low hysteresis, and long-term stability, including those that monitor air, oil, or water.

Specification

Output Signal:                    4-20mA 2-wire
Power Supply:                     24Vdc
Load Resistance:                > 50KΩ
Pressure Ranges:               0-0.1, 0-0.25, 0-0.5, 0-1, 0-4, 0-6, 0-10 and 0-25 Bar
Accuracy:                                0.2% FS
Repeatability:                       0.1% FS/Year typical
Pressure Connection:      ¼” BSP male
Temperature:                       -10…+80°C
Humidity:                                 0…80% RH
Wiring:                                    IP65 Hirschmann Connector
