The Link Touch range is a range of industrial touch screens designed especially for Building Automation projects.

The Link Touch displays come with a pre-installed app that makes it easy to configure them with your building automation system.

You can also keep your installation safe thanks to password protection and Kiosk mode, designed to keep outside interference at bay.

The app also has pop-up management, so you can easily see any pop-up messages.

Moreover, if power goes down, the app has an Auto Login feature that automatically reconnects your Link Touch to the building system.

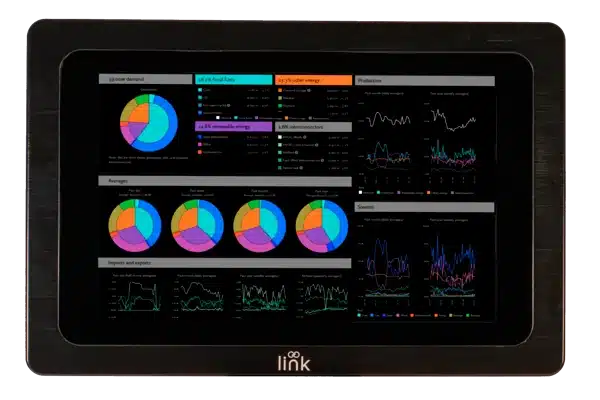

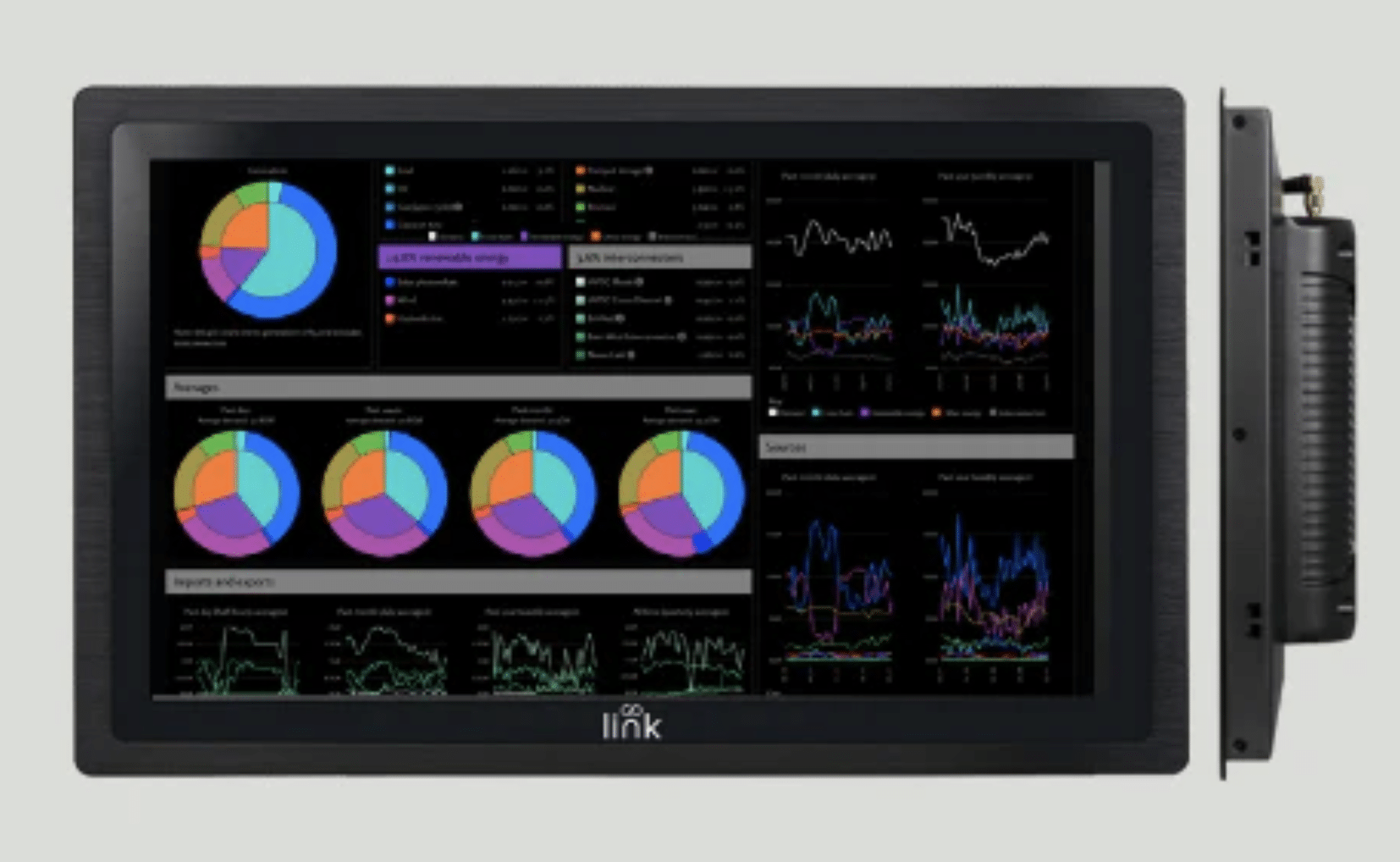

This LNK-T15-IP-WEB is the 15-inch version. It is ideal for any panel project, as it fits most graphics with a resolution of 1920 x 1080

It has a dual-core processor, making it super responsive, so you are not left hanging and waiting each time you navigate your graphics.

Key Features:

Ethernet IP, and WiFi
WiFi: 802.11b/g/n 2.4G and 5G
CPU: RK3399 dual core Cortex A72 + quad core Cortex A53,64 bit, 1.8 GHz
GPU: Mali T864 GPU
Size: 15.6 inch
Aspect ratio: 16:10
15.6 Resolution 1920 x 1080
Android 7.1.2
Capacitive Touch Screen
Panel Mount
Memory: eMMC 32 GB
RAM: 4 GB dual-channel DDR3

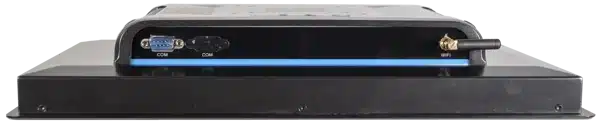

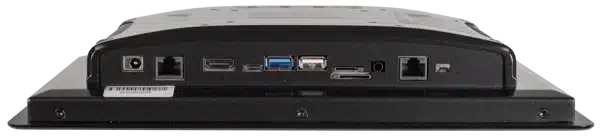

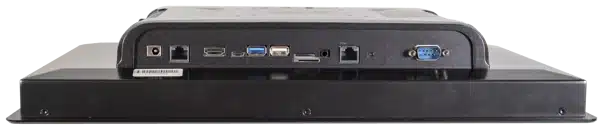

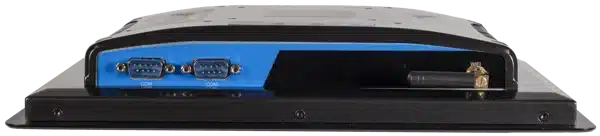

I/O: USB2.0 x1, USB3.0 x1, Type C x1, COM232 x1, OTG x1, TF/SIM x1, DC12V x1, HDMI out x1, RJ45 gigabit x1, Audio 3.5mm out x1
Certifications: CE, FCC, RoHS, ISO

Current (A)	Cable Size (mm²)
6	1
6-12	1.5
12-25	2.5
25-32	4
32-40	6
40-64	10
You must consider Ambient Temperature, Location and Thermal insulation in contact with cable.

LNK-T15-IP-WEB PANEL MOUNT Industrial BMS / BAS Touch Screen Display
