OB115-MOD Meter with Split CT works with GivEnergy System- Modbus RTU – ID1 Address

Meter with CT, also known as the GivEnergy EM115 and the OB115-MOD 100 Amp Single Phase Electric Meter. MID Certified. RS485 Modbus.

The OB115-MOD (EM115, known as GivEnergy) is a single-phase Modbus energy meter with a CT clamp that can be used for direct metering up to 100A. Ideal for PV energy metering, this product offers bi-directional energy measurement and direct/CT connection. The meter features an LCD display with a clear green backlight.

SPECIFICATION

• MID approved when used with solid core CT to Appendix “B” And “D” Certification
• Single-phase metering 1 DIN modules
• Direct metering up to 100A
• LCD display, 6 integer 2 decimal, meter display when power fails
• Clear green backlit display
• 50 pulse output
• Modbus RTU with 16-bit CRC
• 1,2,3, and 4 tariff meter option
• Accuracy class B according to EN50470-3
• Accuracy class 1 according to IEC62052-21
• Memory back-up (EEProm)
• Import/export / generation and consumption
• NET metering to comply with OFGEM regulations on co-located storage
• With bi-directional energy measurement, this meter is ideal for solar PV energy metering
• Split CT options

Downloads:

Software OB115_MOD.Display
PDF GivEnergy EM115 Meter with CT Overview

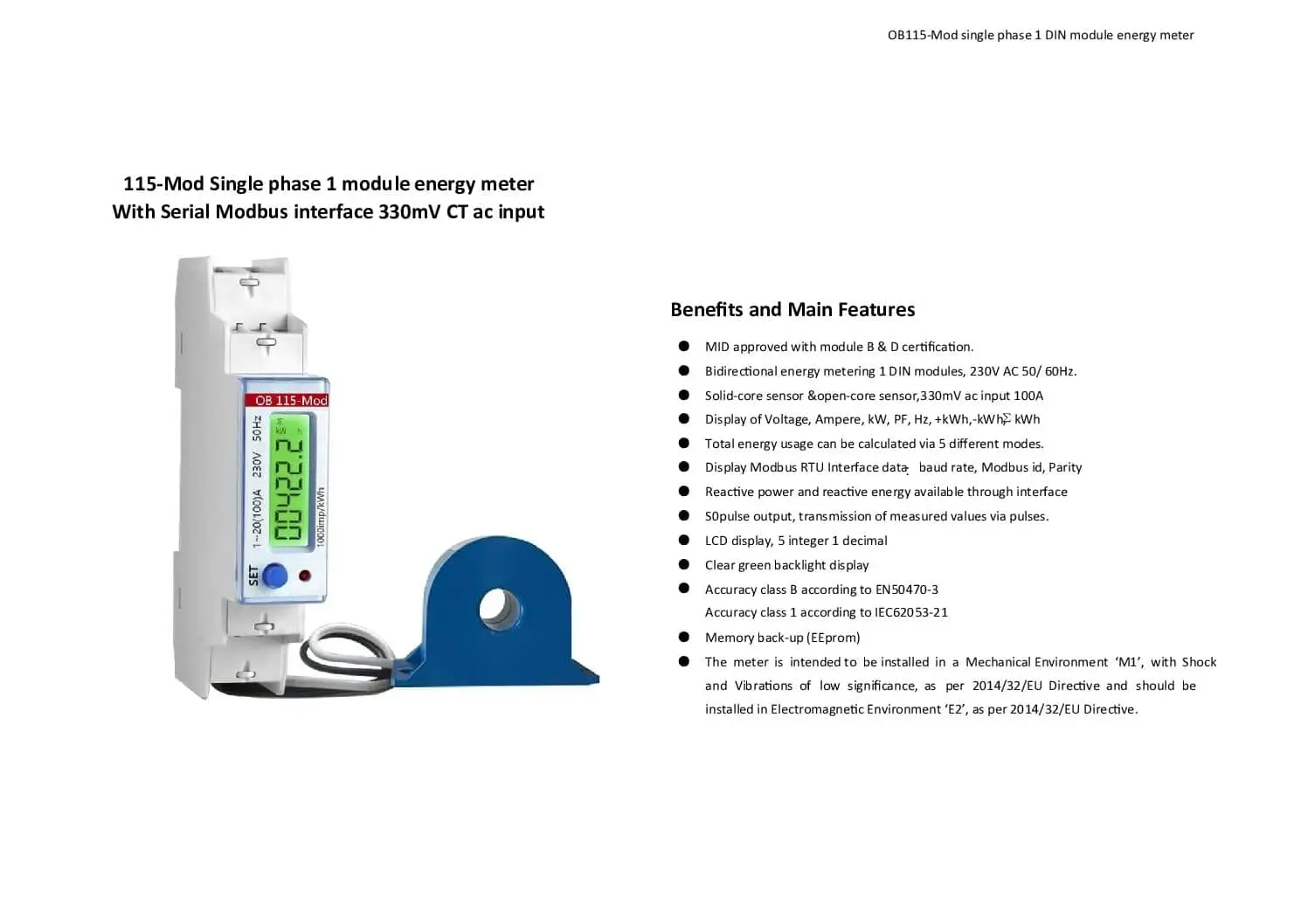

PDF EM115-Mod_User_Manual
PDF GivEnergy EM115 Meter Catalogue Page
