Panel Indicators

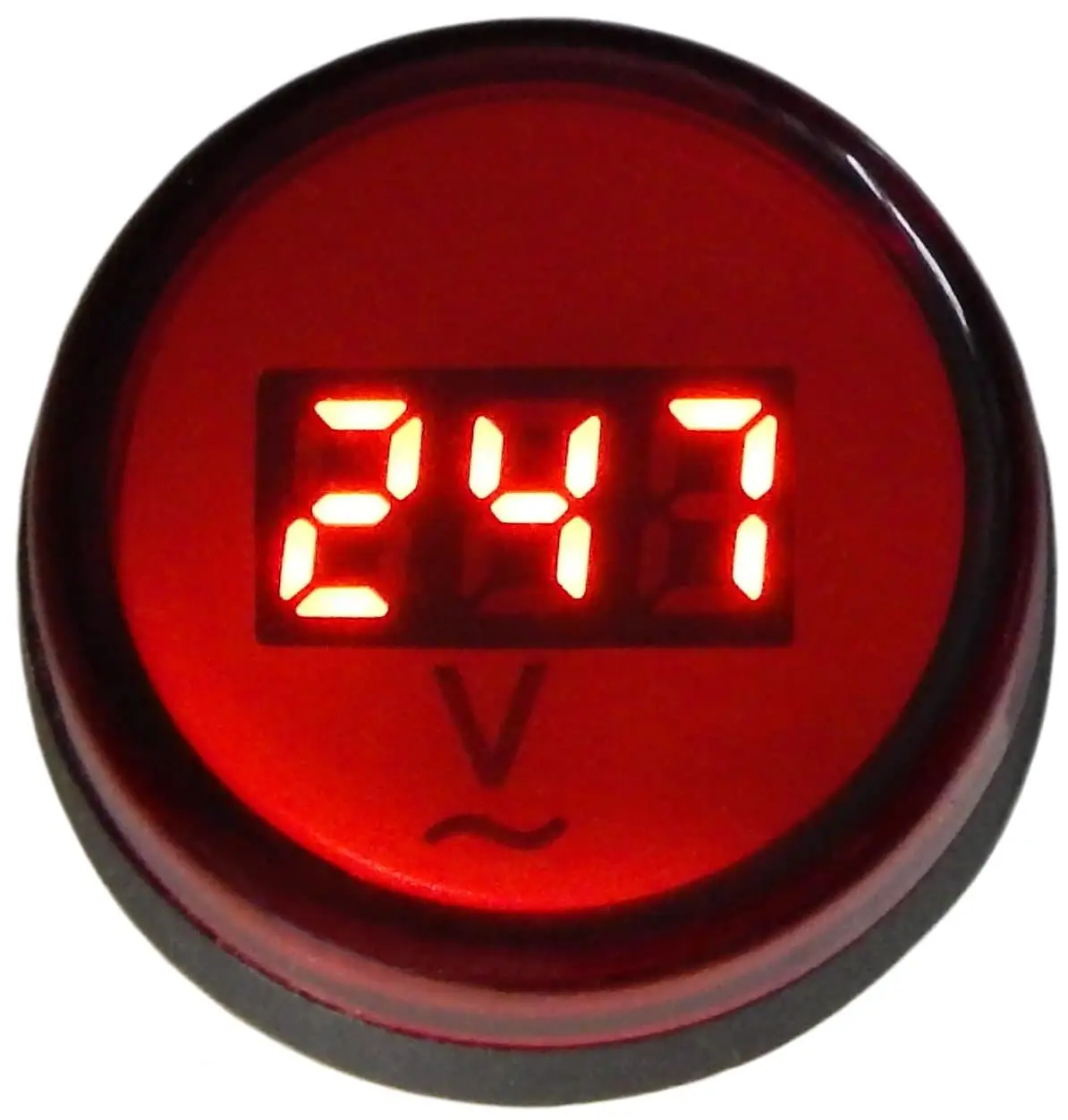

Panel Lamp Volt Meter Red – Select Voltage when ordering
£14.00
Please select the voltage
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
These miniature panel indicators are an ideal low-cost solution for displaying Voltage and Current on the door of a control panel. They are available in 5 colours for up to 500Vac and 120Vdc. The Current meter comes with a 50Amp solid-core CT.
Frequency: 50/60Hz
Supply Current: < 20mA
Mounting Hole: 22mm
CT Lead Length: 80cm
Additional information
| Weight | 0.1 kg |
|---|---|
| Select Voltage |
20-110Vac, 8-120Vdc, 80-500Vac |
