Radar Level Sensor
£950.00 Exc. VAT Exc. VAT

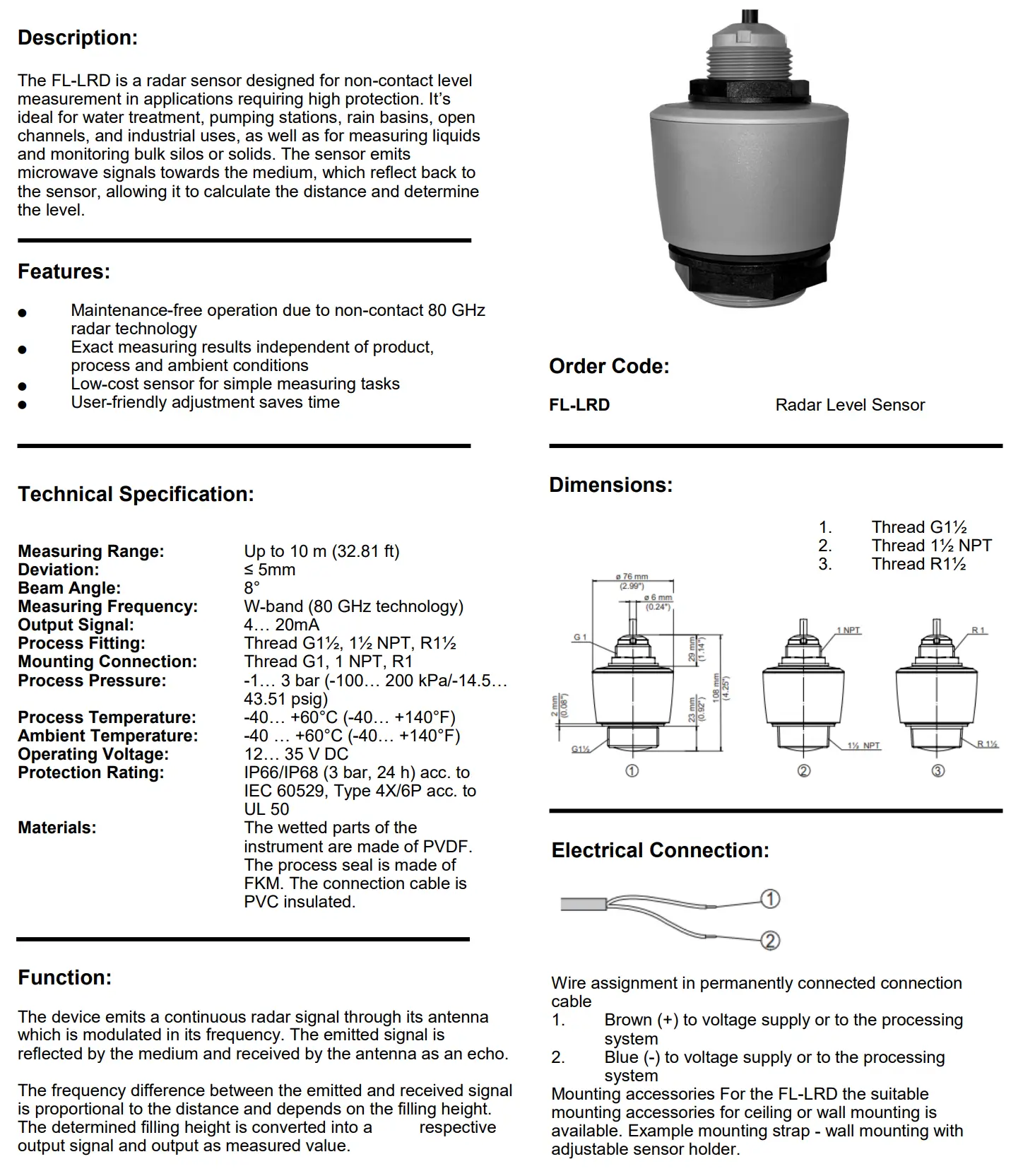

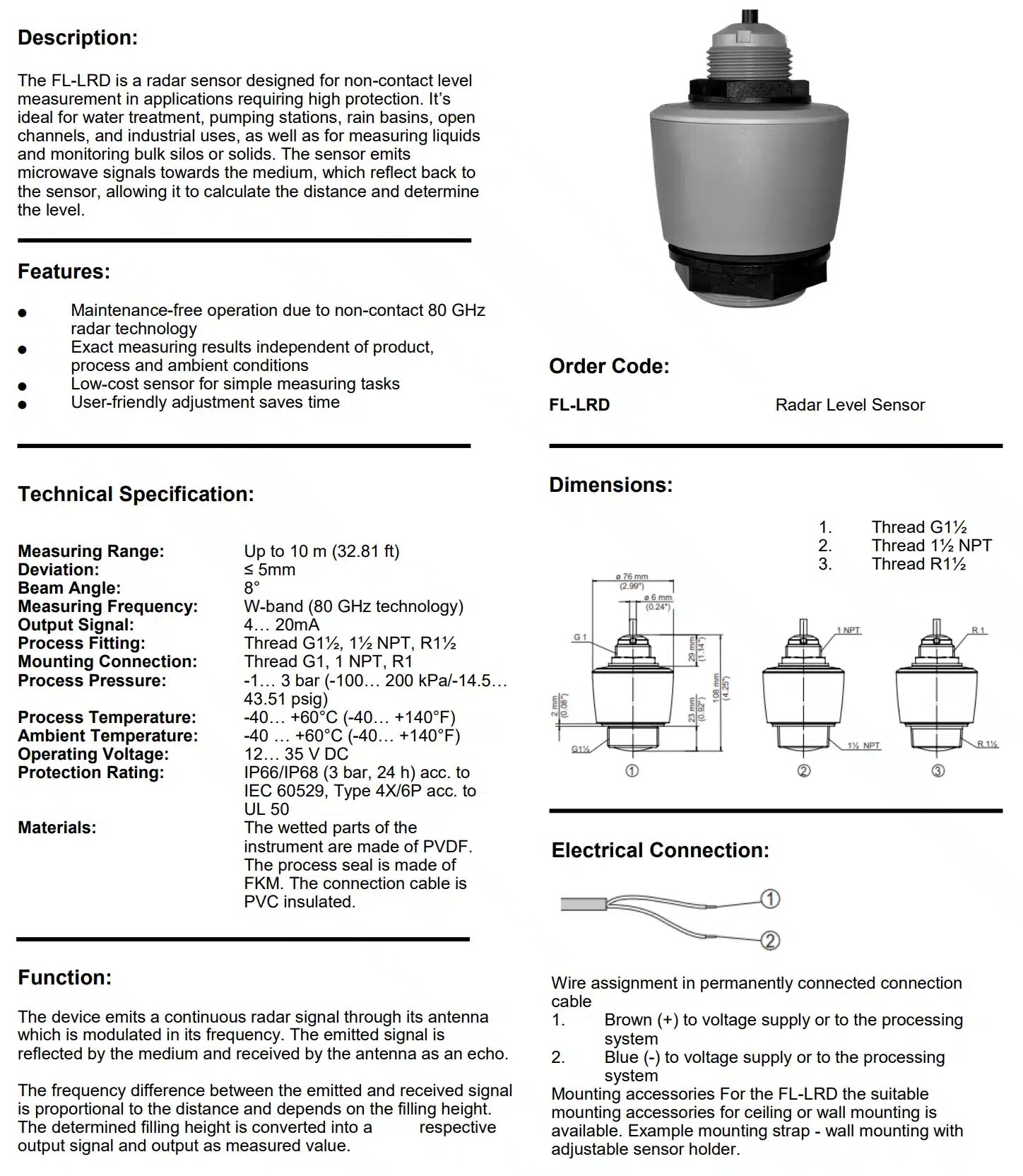

Radar Level Sensor
The FL-LRD is a radar sensor designed for non-contact level measurement in applications requiring high protection. It’s ideal for water treatment, pumping stations, rain basins, open channels, and industrial uses, as well as for measuring liquids and monitoring bulk silos or solids. The sensor emits microwave signals towards the medium, which reflect back to the sensor, allowing it to calculate the distance and determine the level.
- Maintenance-free operation due to non-contact 80 GHz radar technology
- Exact measuring results independent of product, process, and ambient conditions
- Low-cost sensor for simple measuring tasks
- User-friendly adjustment saves time
Specification
Measuring Range:Â Â Â Â Â Â Â Â Â Â Â Up to 10 m (32.81 ft)
Deviation:                          ≤ 5mm
Beam Angle:                 8°
Measuring Frequency:Â Â Â Â Â Â W-band (80 GHz technology)
Output Signal:               4… 20mA
Process Fitting:               Thread G1½, 1½ NPT, R1½
Mounting Connection:Â Â Â Â Â Â Thread G1, 1 NPT, R1
Process Pressure:           -1… 3 bar (-100… 200 kPa/-14.5… 43.51 psig)
Process Temperature:       -40… +60°C (-40… +140°F)
Ambient Temperature:      -40 … +60°C (-40… +140°F)
Operating Voltage:           12… 35 V DC
Protection Rating:            IP66/IP68 (3 bar, 24 h) acc. to IEC 60529, Type 4X/6P acc. to UL 50
Materials:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â The wetted parts of the instrument are made of PVDF. The process seal is made of FKM. The connection cable is PVC-insulated.
| Weight | 0.85 kg |
|---|---|
| Dimensions | 9.7 × 7.9 × 6.5 cm |
