ROOM CO2 TEMPERATURE & HUMIDITY SENSOR (0-10V CO2, DUAL 0-10V AND 10K3A1 TEMP AND 0-10V HUMIDITY) – NO LED
£202.80
The Gen 3 sensors feature a sleek, modern design, creating our slimmest room sensor to date.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 12 | 1 |
| 16 | 1.5 |
| 20-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description

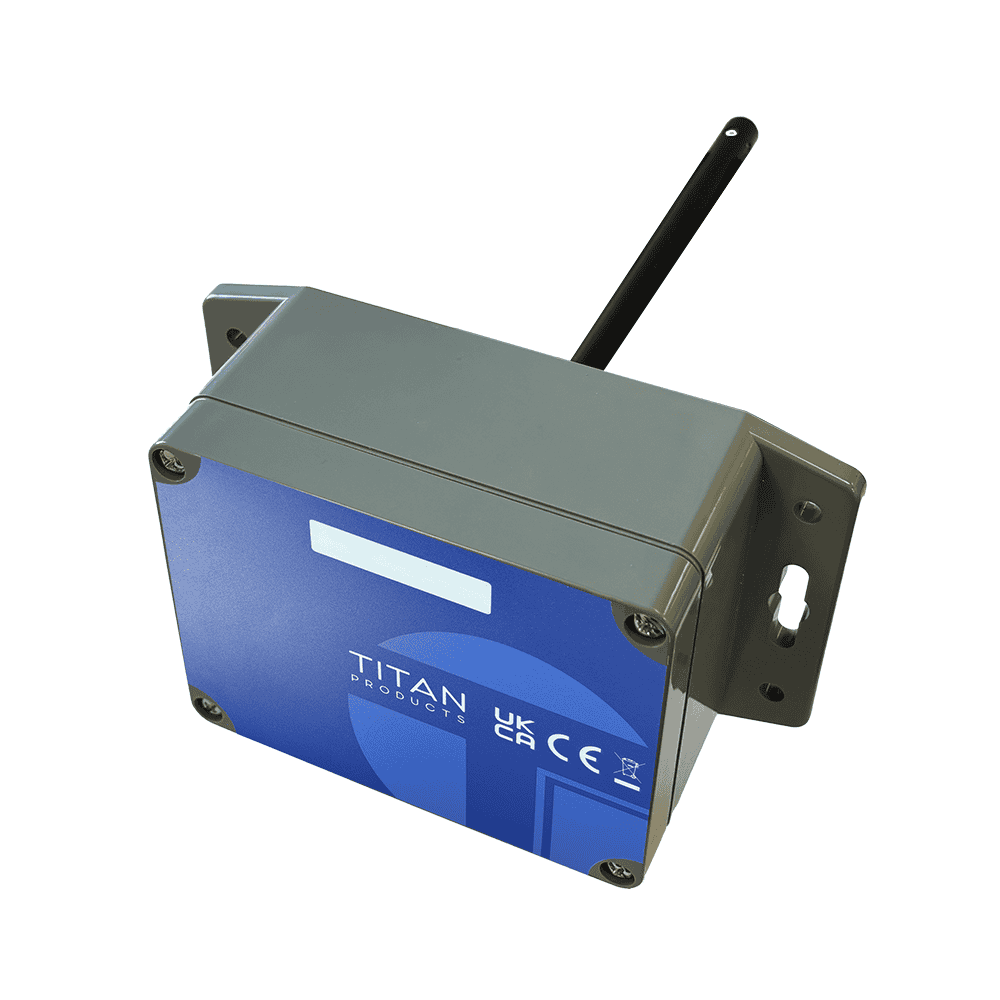

Duct CO2, Humidity & Temperature Sensor (TP-DS-CO2RHT)
Duct CO2 Sensors measure carbon dioxide levels in extract duct systems. Using automatic calibration technology, the sensor provides a 0-10V signal proportional to CO2 concentration in the ductwork, as well as 0-10V signals for relative humidity and temperature.
Featuring a robust housing for duct applications, the TP-DS-CO2RHT uses NDIR technology for CO2 measurement and provides 0-10V signals for CO2, relative humidity, and temperature conditions in the measured space, and incorporates a second resistive 10K3A1 temperature output, with other thermistor types available on request.
These sensors are great for schools, offices, libraries and public buildings and the duct CO2 sensor links into our BACnet natural ventilation and multi-purpose controllers.
The sensor enclosures are IP65 rated.
Key Benefits:
- Accurate measurement of temperature, humidity & CO2
- Automatic calibration technology
- Robust housing designed to be mounted in ductwork
- IP65-rated sensor enclosure
- Quick and simple installation
Additional information
| Output Type |
0-10V, 4-20mA |
|---|---|
| Colour |
White, Black |
