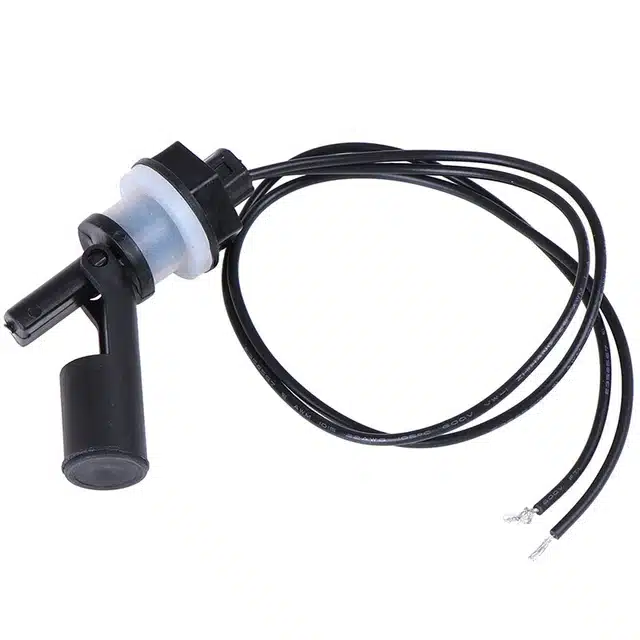

Side Mounted Level Switch
£25.00
Side Mounted Level Switch
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
A range of Level Switches designed for high and low liquid level detection in tanks and vessels. Units consist of a lever-arm reed-switch assembly and a tank-fixing assembly. Units fit from the inside of the tank, tighten onto a back nut, and are available for top or side mounting.
Specification
Contact Form: Installation dependent
Switching Voltage Max. V: 240Vac / 200Vdc
Switching Current Max. A: 0.5
Carry Current Max. A: 1.0
Switching Capacity Max. VA: 50W
Contact Resistance Max. mOhms: 200
Lead Wire: XLPE AWG22
Reversible Switch Action: YES
Operating Pressure Max. Kg/cm²: 4.0
Operating Temperature Deg.˚C: -20˚C…+80˚C
Material: Polypropylene
Suitable Specific Gravity: 0.75
Mounting Hole Diameter: 16.0mm
Additional information
| Weight | 0.7 kg |
|---|---|
| Dimensions | 9.7 × 7.9 × 6.5 cm |
