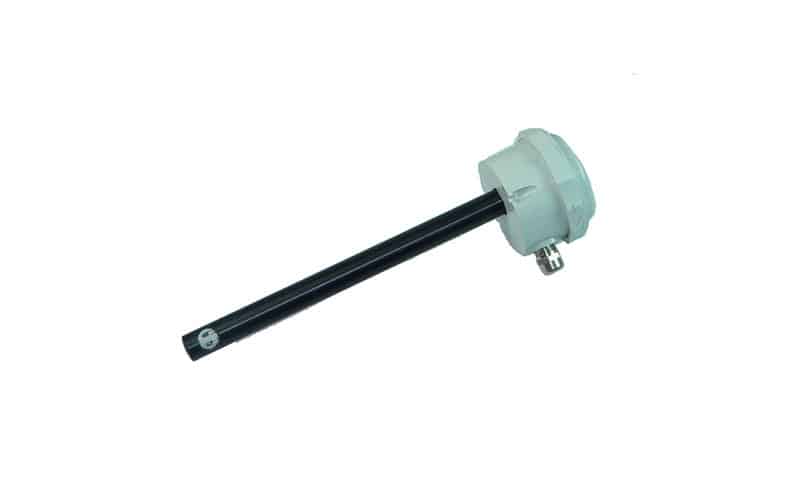

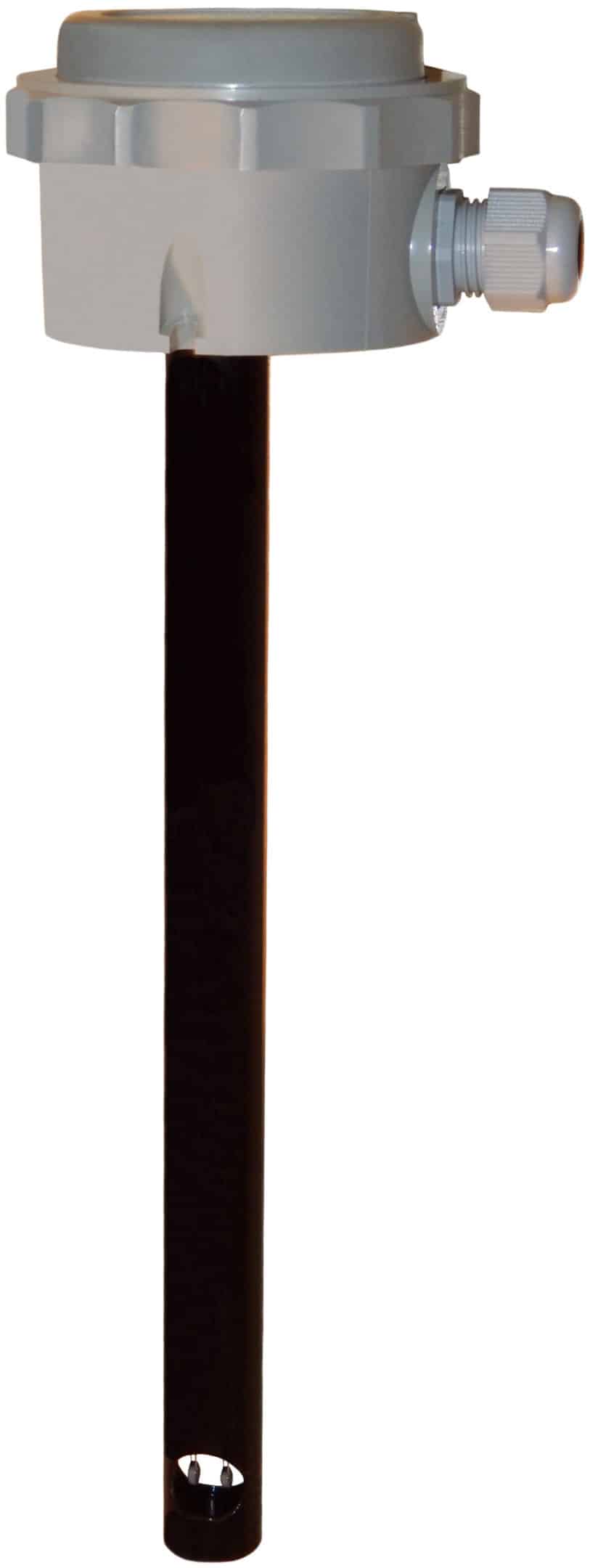

Single Point Duct Air Velocity Sensor 0…16 m/s – 0…10Vdc output – AV16

The AV range of Air Velocity Sensors is designed to measure air velocity in HVAC ducts and provide a linear 0… 10 Vdc output signal across the range.
The unit operates on a thermal principle based on the cooling effect of airflow

Specification

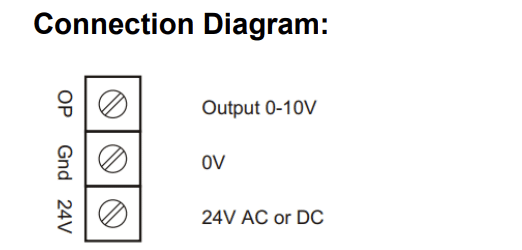

Power Supply:                 24Vac/dc
Output Signal:                 0…10Vdc
Accuracy:                         ± 1% at mid-range at 20˚C.
Response Time:              < 2 seconds

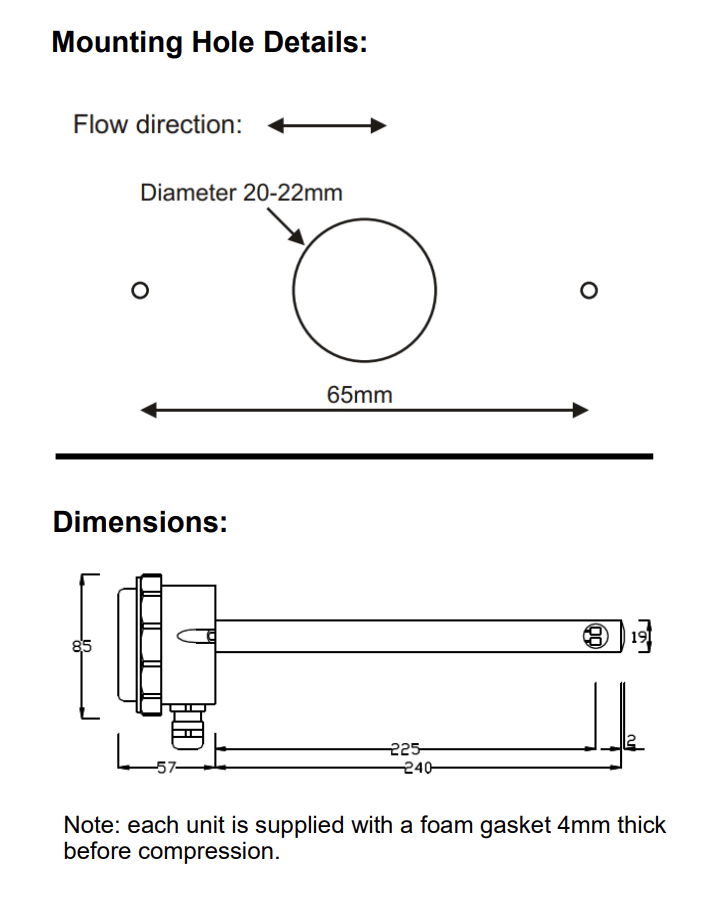

Probe:                              19mm diameter aluminium x 238mm long.
Temperature:                  -10…+60˚C
Humidity:                          0…80% RH
