Single Stage Controller -5° to +95°C
£105.00

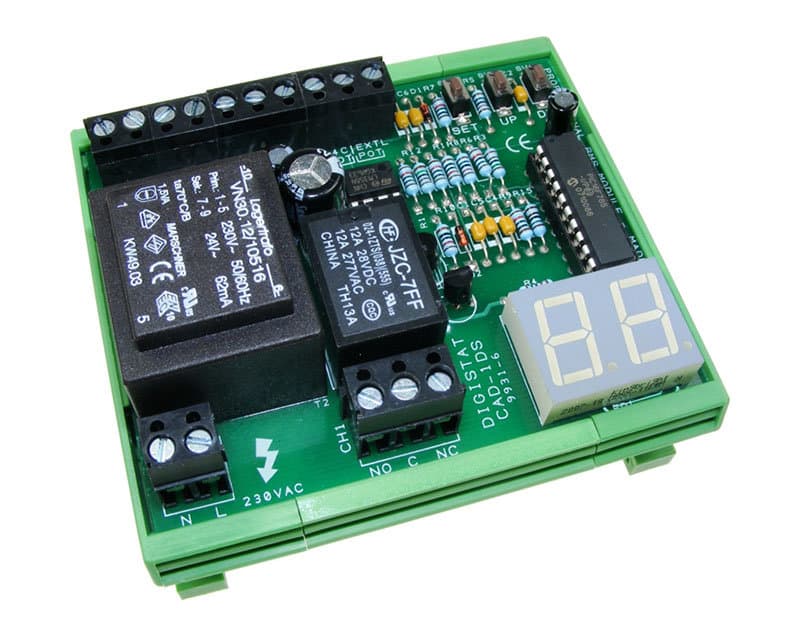

The CAD-1DS is a DIN rail-mountable single-channel electronic thermostat compatible with Building Management Systems.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
The CAD-1DS is a DIN rail-mountable single-channel electronic thermostat compatible with Building Management Systems. The unit monitors air or liquid temperatures and controls one user-programmable switching relay in response. Remote Setpoint Adjuster CAD-POT.
Product Code: CAD-1DS
Input Supply: 24Vac/dc ± 15% 35mA max.230Vac 1VA
Sensor Type: Any 10KΩ Type T sensor from our range
Temperature Range: -5˚C to +95˚C
Differential: 1 – 10˚C
Output Signal: 1 x C/O relay contact 10(5)A @ 240Vac
Mounting: DIN rail carrier 91 x 82 x 51mm
Terminals: Rising clamp suitable for 0.5 – 2.5mm²
Ambient: -20˚C to +50˚C
PDF Datasheet
Additional information
| Cable Length |
10 Meters, 15 Meters, 20 Meters, 5 Meters |
|---|
