Six Channel Digital Input Multiplexer (Voltage) – IODIM6-MI-V
£72.45
Six Channel Digital Input Multiplexer (Voltage) – IODIM6-MI-V
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description

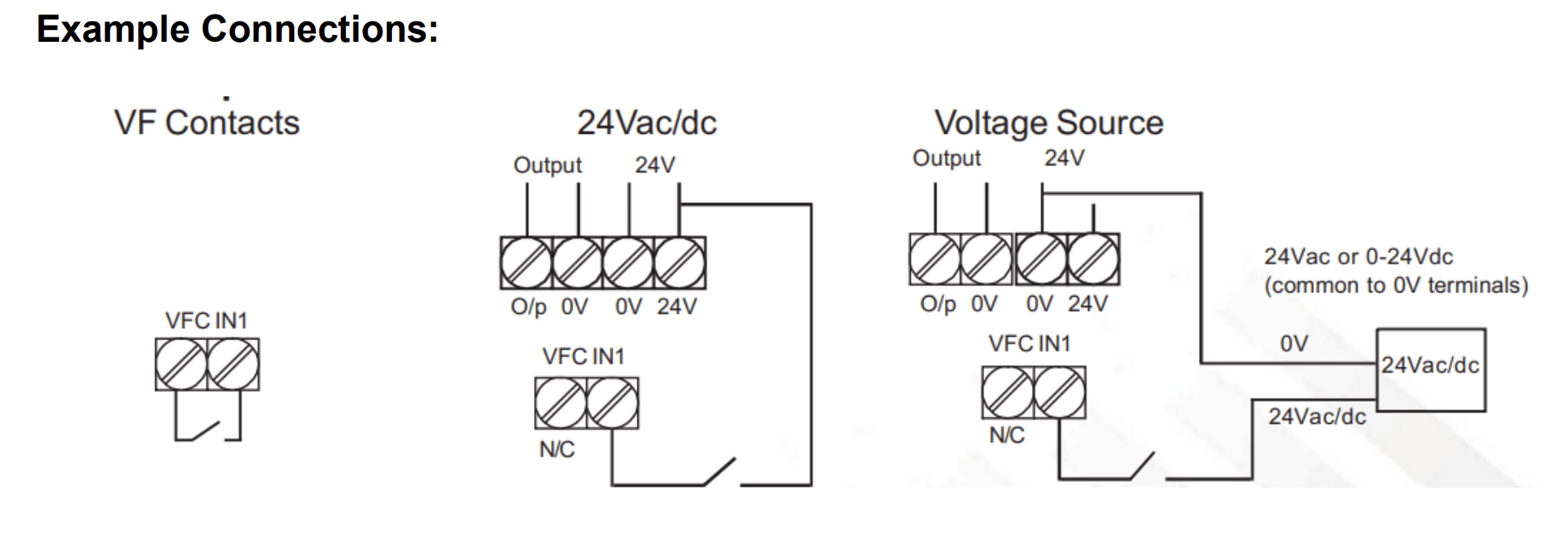

The IODIM6-MI multiplexes 6 VFC or 24 Vac/dc signals into a single analogue output.
0-10Vdc, 2-10Vdc, 4-20mA, and 0-20mA output variants are available, making the unit compatible with a wide range of BMS equipment.

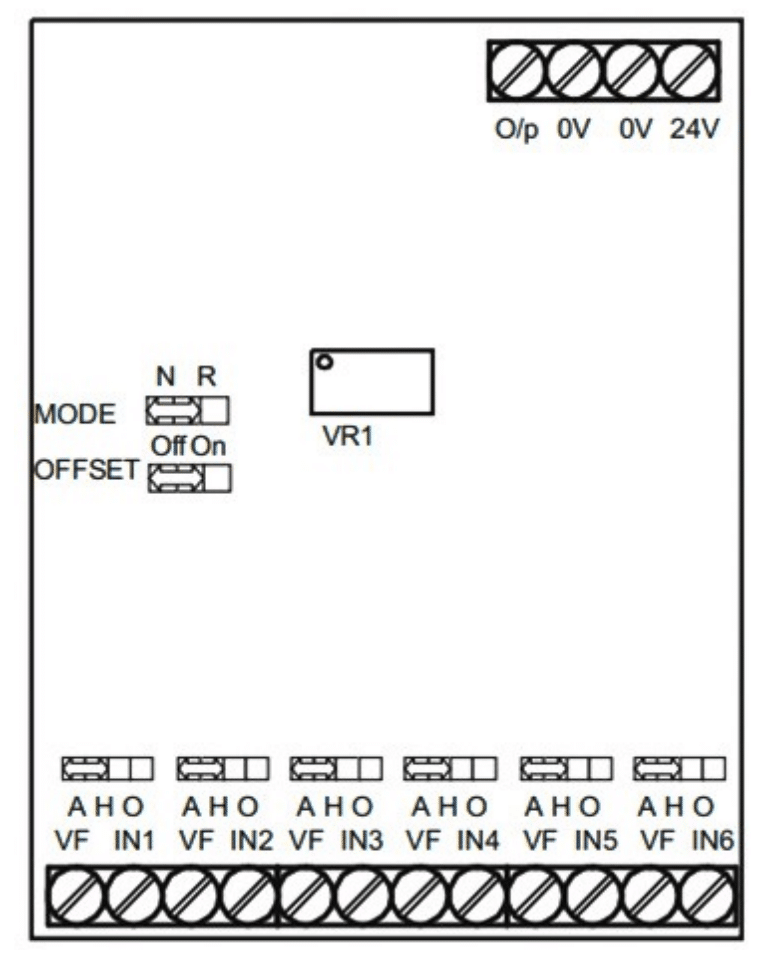

The input registers are active when the contact is closed. Additionally, jumpers are fitted to allow each
input to be manually overridden for commissioning and testing purposes.
The output sequence can also be reversed, as required by some controllers and control strategies.
Additional information
| Weight | 0.85 kg |
|---|---|
| Dimensions | 6 × 8 × 5 cm |
| Amps | 4A, 6A, 8A |
