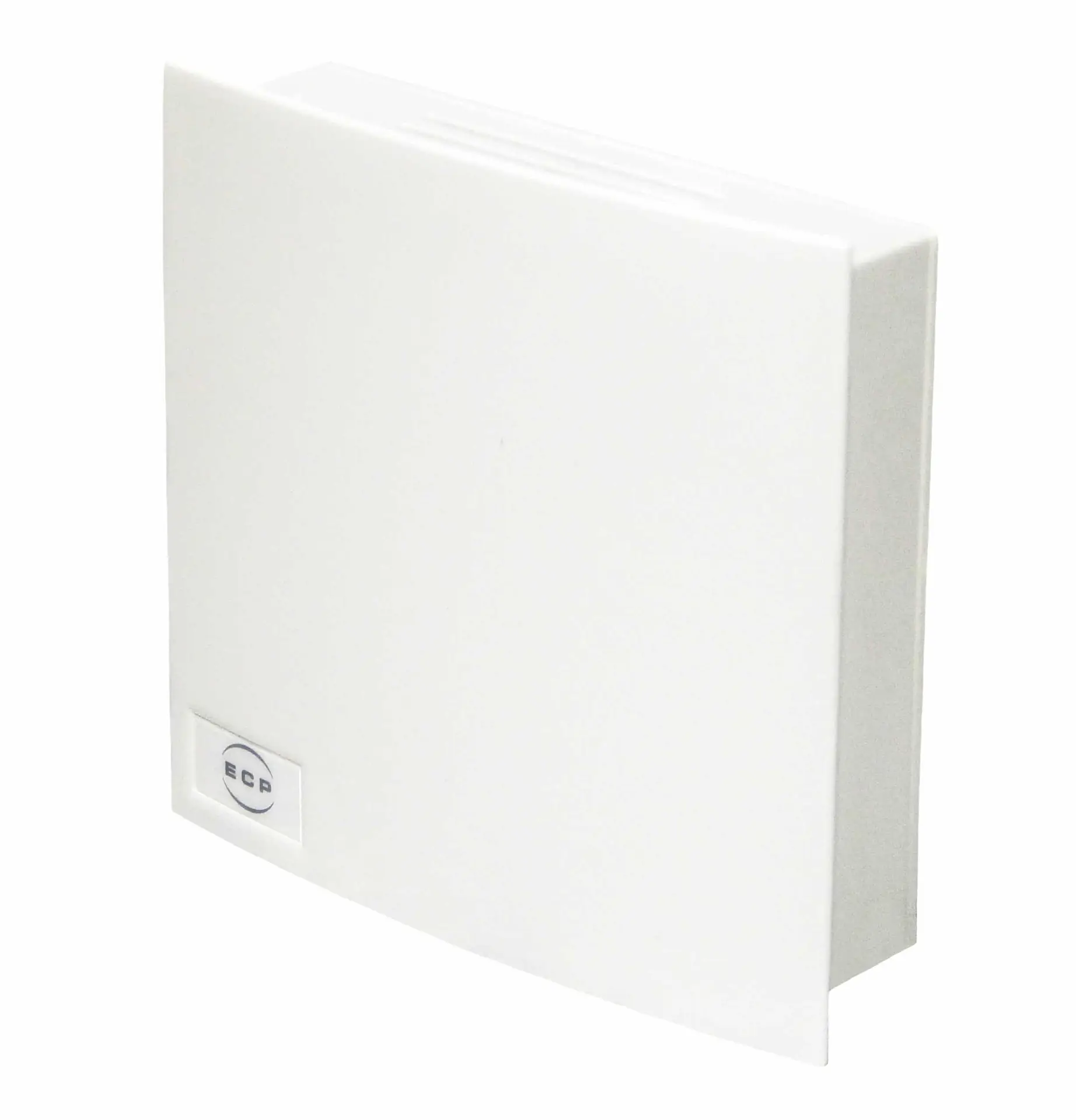

Space Temperature Sensor

The TE-R range of space temperature sensors is designed to interface with a wide variety of HVAC control equipment. Units are available with a high-quality thermistor element or a platinum element. The housing is designed for both direct surface mounting and fixing holes for standard recessed patress and conduit boxes. The housing is designed to maximise airflow, thereby providing fast response times and returning values indicative of the space in which it is installed.

Specification

Sensor Type:        Thermistor 10K3A1, 10K4A1, 1.8K, 20K6A1, 30K6A1, 3K3A1, 50K6A1, NI1000, PT100, PT1000 and SAT1
Accuracy:               ± 0.2°C, 0…70°C
Housing: Flame-retardant ABS
Colour:                      White
Protection:             IP30
Terminals:               Rising clamp 0.5-2.5mm² cable
Ambient:                -20°C to +60°C, 0-95% RH non-condensing
Dimensions:           85(H) x 85(W) x 30mm approx.

Temperature Resistors Chart
