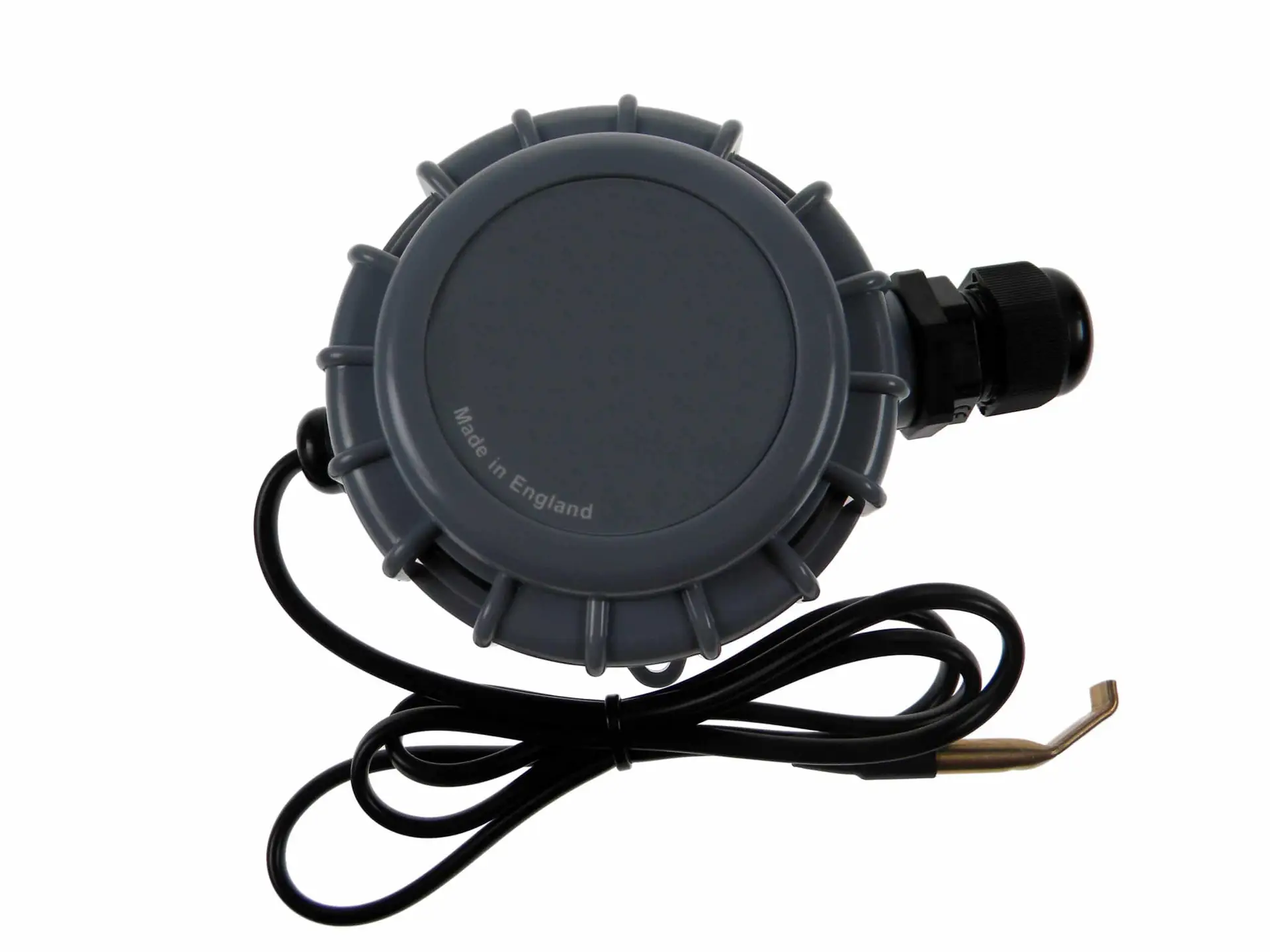

Strap On Temperature Sensor with IP65 Housing

The TE-S range of strap-on temperature sensors is designed to interface with a wide variety of HVAC control equipment. Units are available with a high-quality thermistor element or a platinum element. The housing features a quick-release lid for ease of installation, and the sensor is housed in a shaped copper lug for surface-temperature measurement.

Specification

Sensor Type:        Thermistor 10K3A1, 10K4A1, 1.8K, 20K6A1, 30K6A1, 3K3A1, 50K6A1, NI1000, PT100 (2 & 3 wire), PT1000 and SAT1
Accuracy:             ± 0.2°C, 0…70°C
Housing:                Flame retardant ABS
Probe:                     6mm diameter shaped copper 50mm long with a flat edge for pipe mounting and with 1-meter cable from housing.
Protection:           IP65
Terminals:             Rising clamp 0.5-2.5mm² cable
Ambient:              -20°C to +85°C, 0-95% RH non-condensing

Temperature Resistors Chart
