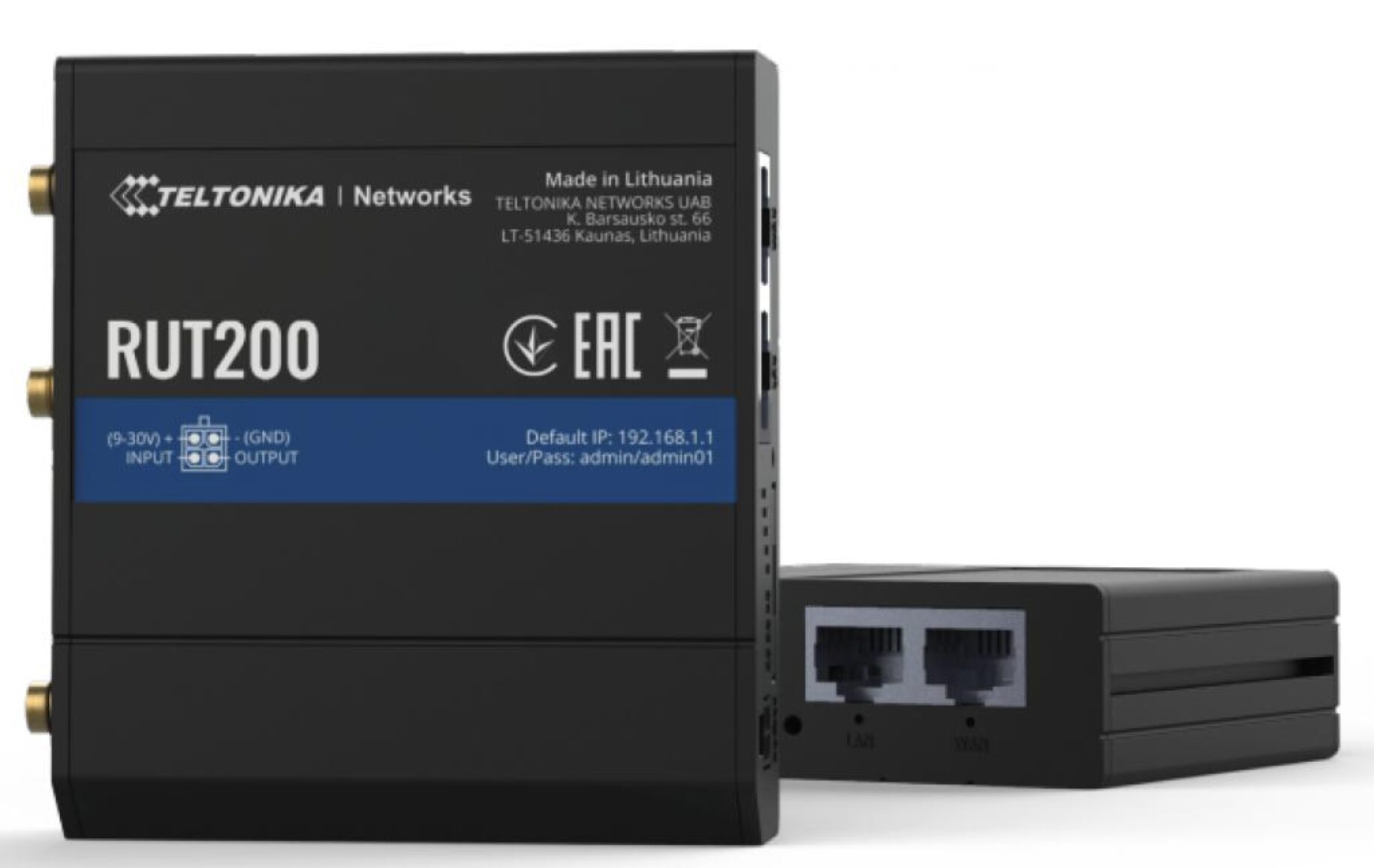

Teltonika RUT200 4G LTE Cat 4, 4G, 3G, 2G Industrial Router

£127.00

Teltonika RUT200 eSIM 4G LTE Cat 4G, 3G, 2G Industrial Router. RUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rugged conditions common in industries such as automation, transportation, and manufacturing. This model is equipped with 4G LTE, Wi-Fi, and two Ethernet ports, making it ideal for quickly setting up primary and backup connectivity and supporting remote management.

- +
Category: Tags: , , , , , , , , ,

RUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rugged conditions common in industries such as automation, transportation, and manufacturing. This model is equipped with 4G LTE, Wi-Fi, and two Ethernet ports, making it ideal for quickly setting up primary and backup connectivity and supporting remote management.

Industrial connectivity

Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, RUT241 delivers uninterrupted connectivity with automatic WAN failover. Its industrial design, compact size, multiple connectivity interfaces, and compatibility with RMS make this device an excellent fit for numerous IoT and M2M solutions.

Hardware

Mobile 4G/LTE (Cat 4), 3G, 2G
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
Storage 16 MB, NOR Flash
Powering options 4-pin industrial DC power socket, 9 – 30 VDC

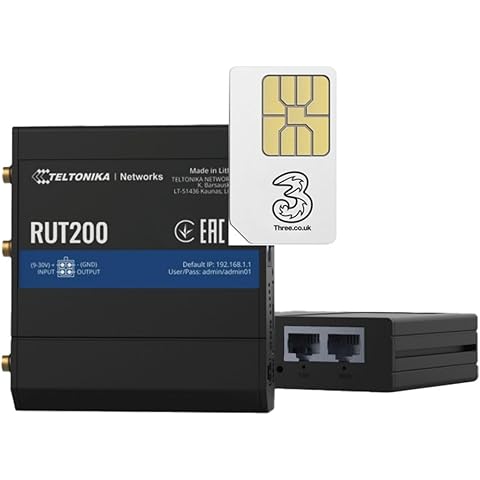

SIM 1 x External SIM holder (2FF)

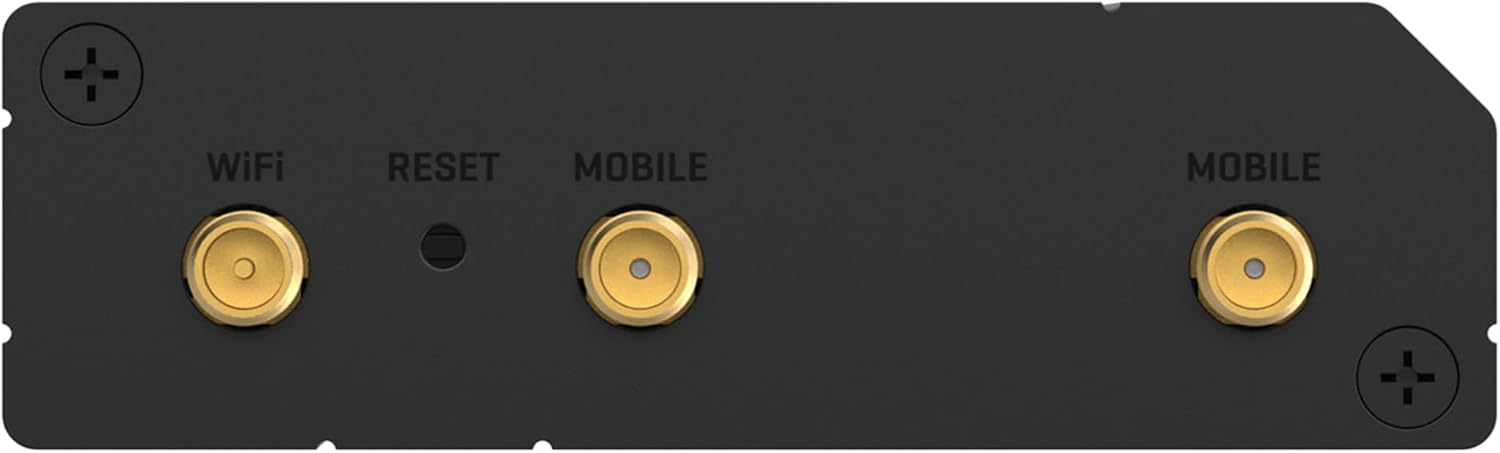

Antenna connectors 2 x SMA for Mobile, 1 x RP-SMA for Wi-Fi
Ethernet 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN
Wi-Fi IEEE 802.11b/g/n, Access point (AP), Station (STA)
Inputs/Outputs On 4pin socket: 1 x Digital input, 1 x Digital open collector output
Status LEDs 3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power
Operating temperature -40 °C to 75 °C
Housing Aluminium housing with DIN rail mounting option, plastic panels
Dimensions (W x H x D) 83 x 25 x 74 mm
Weight 125 g
Supported frequencies 4G (LTE-FDD): B1, B3, B7, B8, B20, B28A; 3G: B1, B8; 2G: B3, B8

Software

Operating system RutOS (OpenWrt based Linux OS)
Mobile features Status, SMS, USSD, Black/White list, Multiple PDN, Band management, SIM PIN code management, APN, Bridge, Passthrough
Network features VoIP passthrough support, Network Management, Connection monitoring, Firewall, Firewall status page, Ports management, Network topology, Hotspot, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, SSHFS, VRF support
Security Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control
VPN and tunneling OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, ZeroTier, WireGuard, Tinc
Monitoring and Management WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
Cloud solutions RMS, ThingWorx, Cumulocity – Cloud of Things, Azure IoT Hub
Services OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS
Weight 1 kg
Amps

4A, 6A, 8A
