| Brand |
Teltonika |
| Model name |
RUT241 eSIM |
| Special feature |
Compact |
| Frequency band class |
Single-Band |
| Wireless communication standard |
802.11n, 802.11b, 802.11g |
| Compatible devices |
Industrial equipment |
| Frequency |
2.4 GHz |
| Recommended uses for the product |
Travel/Outdoor |
| Included components |
Router RUT241, 9 W PSU, 2x Mobile antennas (swivel, SMA male), 1x Wi-Fi antenna (swivel, RP-SMA male), Ethernet cable (1.5 m), SIM Adapter kit, Quick Start GuideRouter RUT241, 9 W PSU, 2x Mobile antennas (swivel, SMA male), 1x Wi-Fi antenna (swivel, RP-SMA male), Ethernet cable (1.5 m), SIM Adapter kit, Quick Start Guide |
| Connectivity technology |
4G, 3G, Wi-Fi, 2G, LTE |
Industrial connectivity

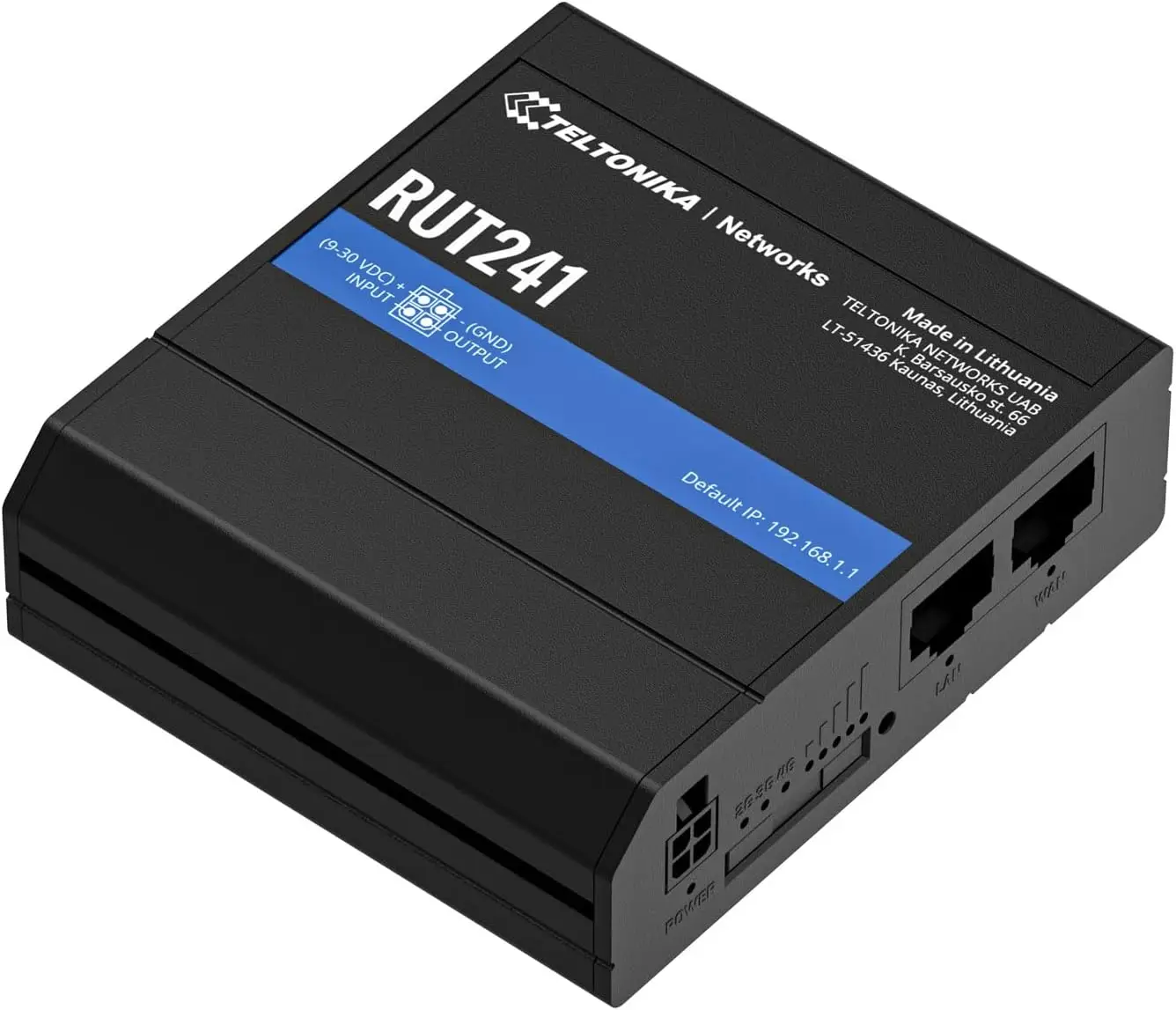

Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, RUT241 delivers uninterrupted connectivity with automatic WAN failover. Industrial design, compact size, multiple connection interfaces, and compatibility with RMS make this device an excellent fit in numerous IoT and M2M solutions.
| Mobile |
4G/LTE (Cat 4), 3G, 2G |
| CPU |
Mediatek, 580 MHz, MIPS 24KEc |
| RAM |
128 MB, DDR2 |
| Storage |
16 MB, NOR Flash |
| Powering options |
4-pin industrial DC power socket, 9 – 30 VDC |
| SIM |
1 x External SIM holder (2FF) |
| Antenna connectors |
2 x SMA for Mobile, 1 x RP-SMA for Wi-Fi |
| Ethernet |
2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN |
| Wi-Fi |
IEEE 802.11b/g/n, Access point (AP), Station (STA) |
| Inputs/Outputs |
On 4pin socket: 1 x Digital input, 1 x Digital open collector output |
| Status LEDs |
3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power |
| Operating temperature |
-40 °C to 75 °C |
| Housing |
Aluminium housing with DIN rail mounting option, plastic panels |
| Dimensions (W x H x D) |
83 x 25 x 74 mm |
| Weight |
125 g |
| Supported frequencies |
4G (LTE-FDD): B1, B3, B7, B8, B20, B28A; 3G: B1, B8; 2G: B3, B8 |
| Operating system |
RutOS (OpenWrt-based Linux OS) |
| Mobile features |
Status, SMS, USSD, Black/White list, Multiple PDN, Band management, SIM PIN code management, APN, Bridge, Passthrough |
| Network features |
VoIP passthrough support, Network Management, Connection monitoring, Firewall, Firewall status page, Ports management, Network topology, Hotspot, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, SSHFS, VRF support |
| Security |
Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control |
| VPN and tunnelling |
OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, ZeroTier, WireGuard, Tinc |
| Monitoring and Management |
WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| Cloud solutions |
RMS, ThingWorx, Cumulocity – Cloud of Things, Azure IoT Hub |
| Services |
OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS |
