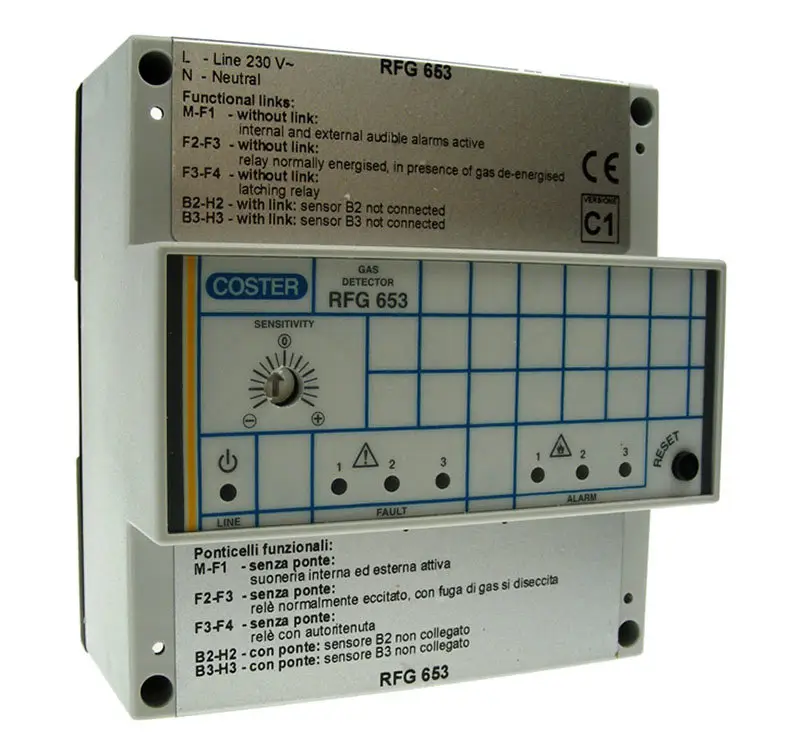

Three Channel Gas Leak Detection Controller GLD653 / RFG653
£509.25 Exc. VAT
The GLD gas leak detection range is suitable for use in Boiler Rooms and other Commercial applications, providing safety and shut-down functions in the event of gas leakage. Control units are available in 1, 2 or 3 channels for connection to 1, 2 or 3 remote sensors. They are mounted in DIN rail housings, with the option of panel- or wall-mount enclosures. Output relays to operate auxiliary devices such as Solenoid Gas Valves or Sirens, and fault remote signalling are fitted to all units. Power supply is 230VAC or 12-24VDC, and sensors are available for Natural Gas, LPG/Propane, and Carbon Monoxide.
The GLD gas leak detection range is suitable for use in Boiler Rooms and other Commercial applications, providing safety and shut-down functions in the event of gas leakage. Control units are available in 1, 2 or 3 channels for connection to 1, 2 or 3 remote sensors. They are mounted in DIN rail housings, with the option of panel- or wall-mount enclosures. Output relays to operate auxiliary devices such as Solenoid Gas Valves or Sirens, and fault remote signalling are fitted to all units. Power supply is 230VAC or 12-24VDC, and sensors are available for Natural Gas, LPG/Propane, and Carbon Monoxide.
Specification
Power Supply: GLD361: 230Vac ± 10% @ 50Hz GLD65*: 12V ± 10%
Power Consumption: GLD361: 3VA GLD65*: 7VA
Relay Outputs: GLD361: 5(1)A @ 250V SPDT GLD65*: 2 x 5(1)A @ 250V SPDT
Pre-alarm Thresholds…
Natural Gas: 0.3% to 0.8% (3000 to 8000ppm)
LPG: 0.14% to 0.35% (1400 to 3500ppm)
CO: 0.012% to 0.03% (120 to 300ppm)
Alarm Thresholds…
Natural Gas: 0.5% to 1.25% (5000 to 12500ppm)
LPG: 0.22% to 0.56% (2200 to 5600ppm)
CO: 0.02% to 0.05% (200 to 500ppm)
Sensors…
Natural Gas: GLD150
LPG: GLD250
CO: GLD350
Materials: Base – Nylon, Cover – ABS
Ambient…
Storage: -25˚C to +60˚C
Operating: 0˚C to +45˚C
| Weight | 0.4 kg |
|---|
