TPZ-Net Wireless Room CO2 Humidity & Temp Sensor – With LED
£208.00
The Gen 3 sensors feature a sleek, modern design, creating our slimmest room sensor to date.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 12 | 1 |
| 16 | 1.5 |
| 20-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Featuring a sleek, modern, and slimline design, the TP-RS-CO2RHT-TPZ Gen 3 humidity and temperature sensor measures internal CO2, relative humidity, and temperature conditions and wirelessly transmits the environmental conditions to a parent Titan TPZ-Net coordinator for on-premise BMS integration.
The battery-powered sensors eliminate the need for wiring to the unit, making installation extremely simple and cost-effective. The sensor delivers this data according to a preset timing schedule or after a specific change in the measured value (COV).

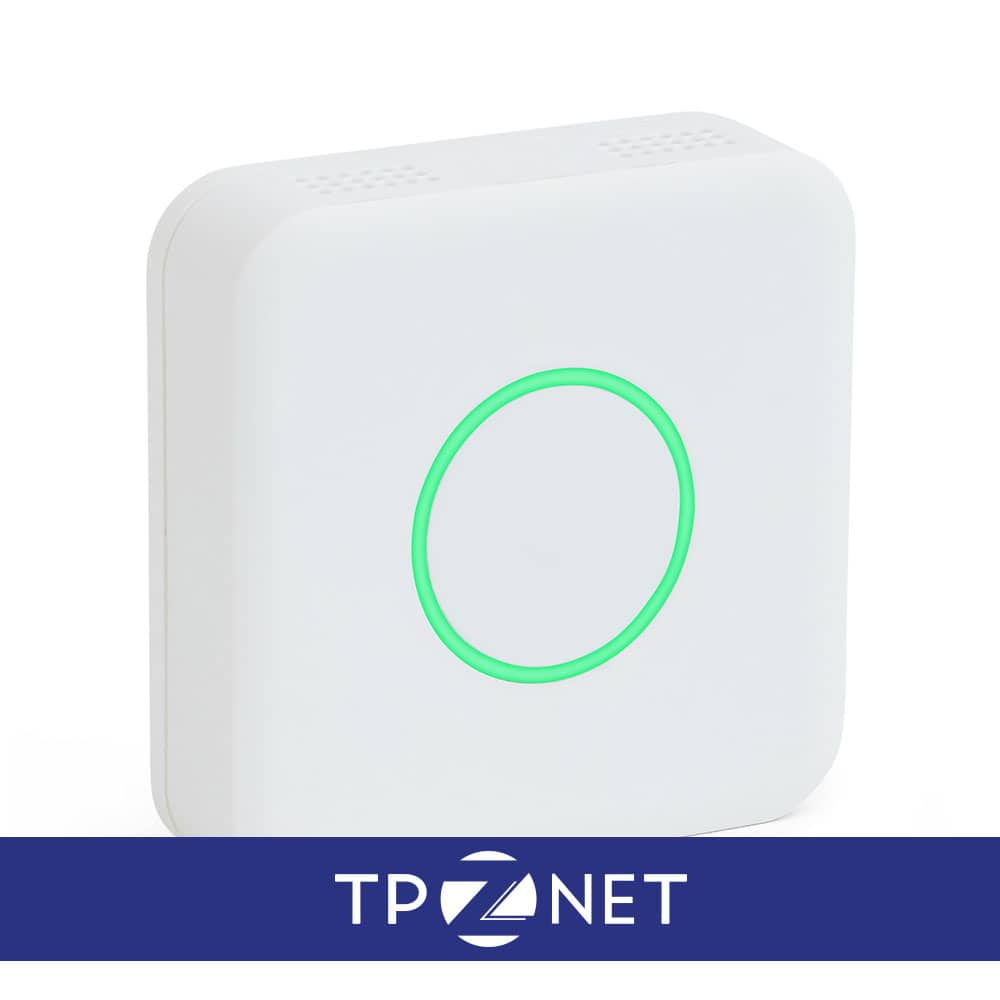

The LED HALO can provide a simple yet informative visual indication of CO2 levels within the space, allowing the end user to understand them at a glance.
Designed for commercial, educational, and retail applications, the TPZ-Net sensor data is exposed to a BACnet MS/TP or Modbus network via the TPZ-Net coordinator, allowing full integration with a building management system (BMS).
All room housings in the Gen 3 product line incorporate certified Polygiene® product protection, designed to proactively inhibit bacterial growth on the sensor surface.
Self-healing, mesh networking can be added to the network to further robustify the network topology by installing TPZ-Net repeaters.
It is strongly recommended to conduct a site survey before installing any wireless sensors.
Key Benefits:
- Zigbee wireless technology
- Up to 60m signal strength
- Easy setup through PC software
- Up to 99 sensor points per coordinator from 30 TPZ-Net devices
- Polygiene® anti-microbial product protection
- Designed and manufactured in the UK
Additional information
| Output Type |
0-10V, 4-20mA |
|---|---|
| Colour |
White, Black |
