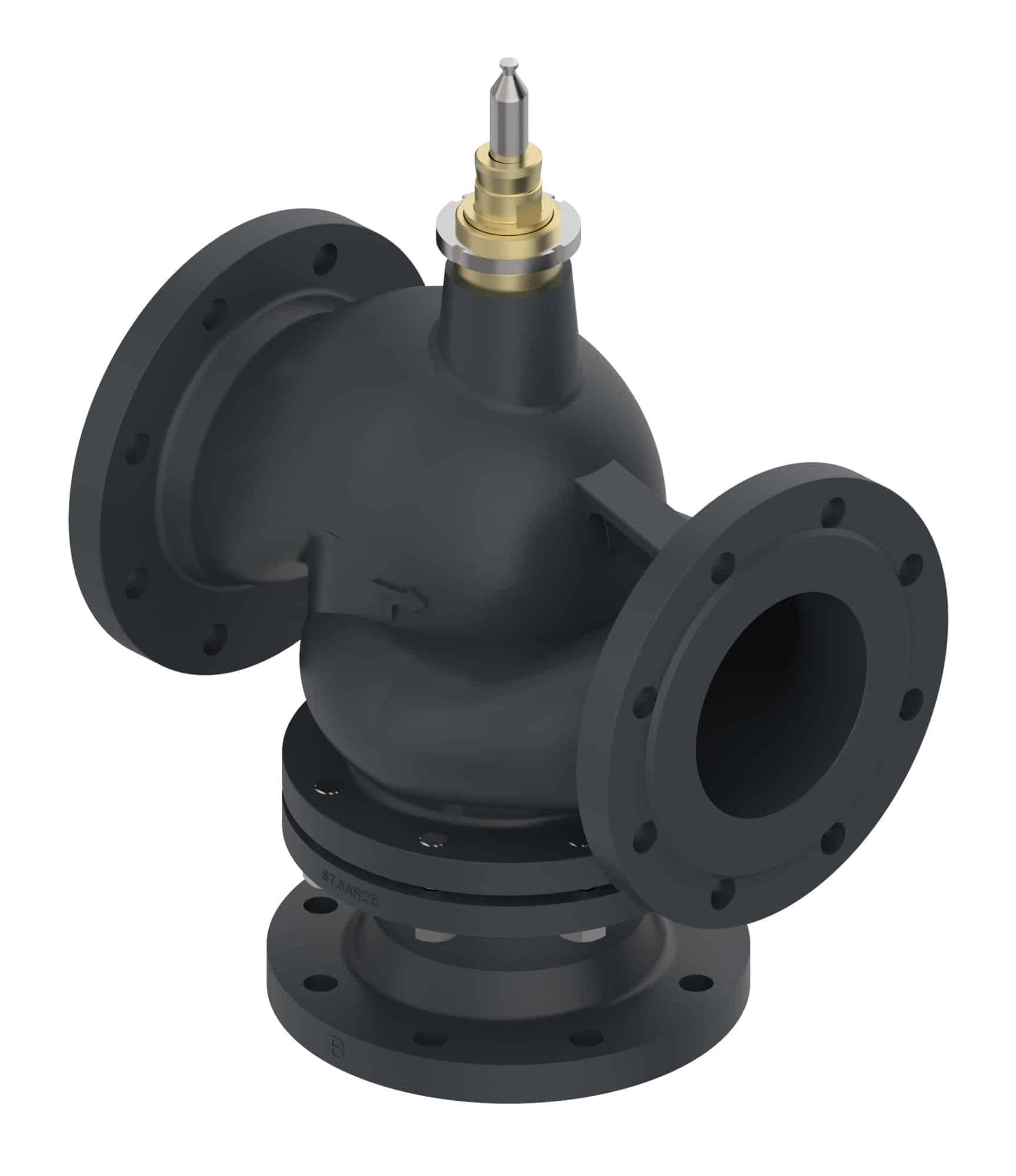

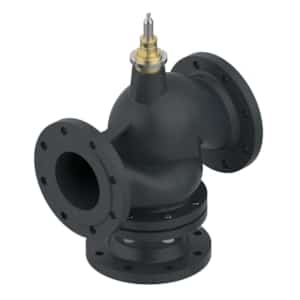

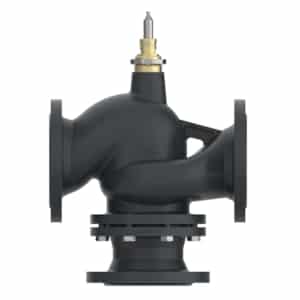

VF 3 PN16 150/320 3-way seated flange
| Gross weight |
90.5 Kilogram |
| Net weight |
90.5 Kilogram |
| Volume |
196.08 Liter |
| EAN |
5702421509654 |
| Type |
VF 3 |
| Product group |
Other valves |
| Application |
Heating and cooling |
| Application alternative VSP |
District heating |
| Cavitation factor |
0.4 |
| China RoHS compliance |
Out of scope |
| Closing differential pressure (diverting) [bar] [Max] |
0.6 bar |
| Closing differential pressure (mixing) [bar] [Max] |
1.5 bar |
| Connection types |
Flange |
| Contains batteries |
No |
| Control ratio |
100:1 |
| Description |
VF 3 PN16 150/320 3-way seated flange |
| Diameter [mm] |
150 mm |
| EU RoHS compliance |
Out of scope |
| Flow characteristic |
Equal percentage |
| Function |
Mixing valve |
| Kvs values [m³/h] |
320 m³/h |
| Leakage through port max. [% Kvs] |
0.05 |
| Media pH [Max] |
10 |
| Media pH [Min] |
7 |
| Media temperature [°C] [Max] |
200 °C |
| Media temperature [°C] [Min] |
-10 °C |
| Medium alternative |
Glycolic water up to 50% |
| Number of ports |
3 |
| Permissible media |
District heating/cooling circulation water |
| PN alternative VSP |
10 |
| Pressure nominal [bar] |
16 bar |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| SCIP dossier no. |
aee43d66-523a-47df-9250-578f405f6feb |
| SCIP dossier product name |
VF 3 PN16 150/320 3-WAY SEATED FLANGE |
| Stroke [mm] |
40 mm |
| Stuffing box sealing material |
PFTE |
| Valve body material |
Ductile cast iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone material |
GGG 40 |
| Valve stem material |
Stainless steel |
