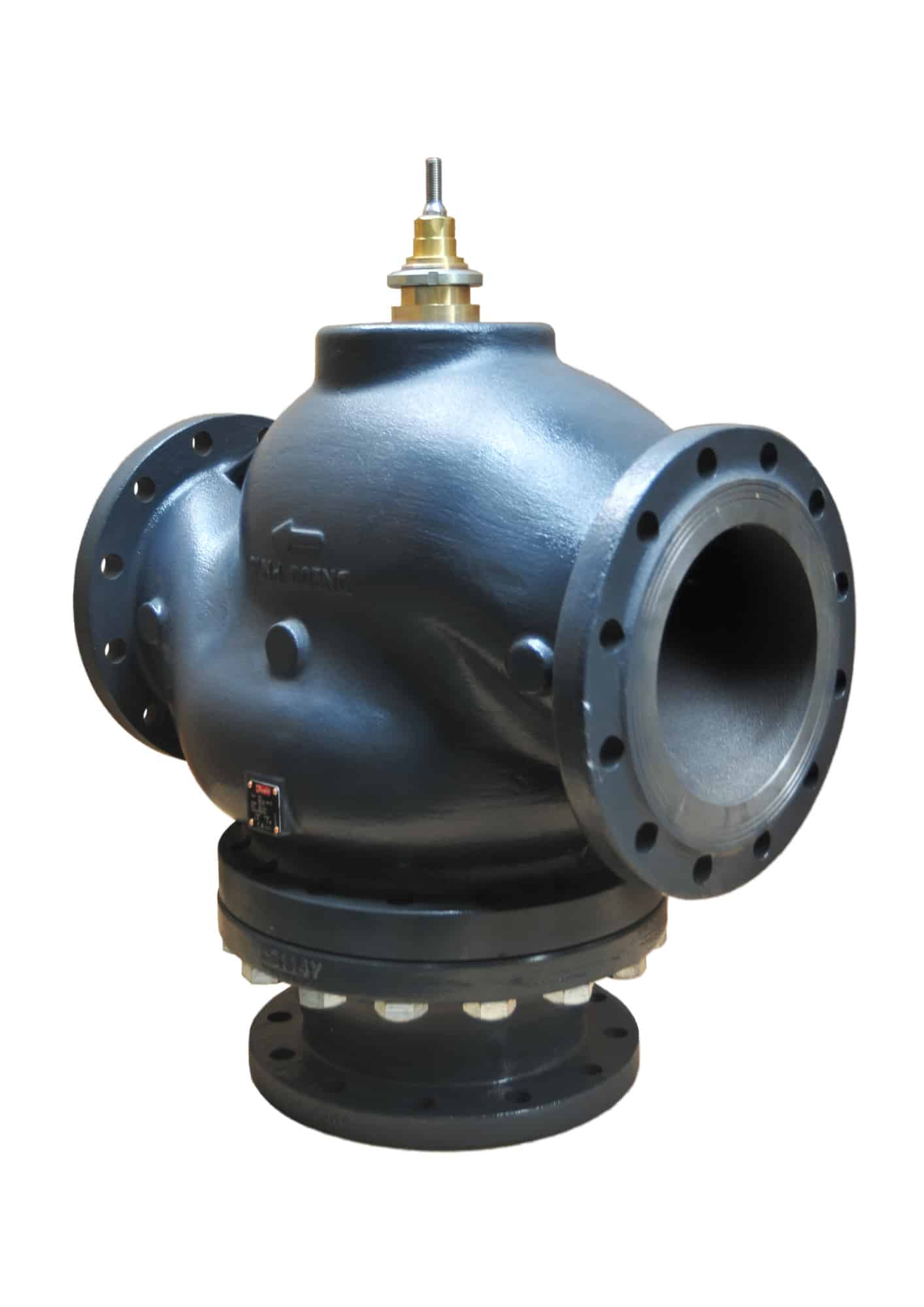

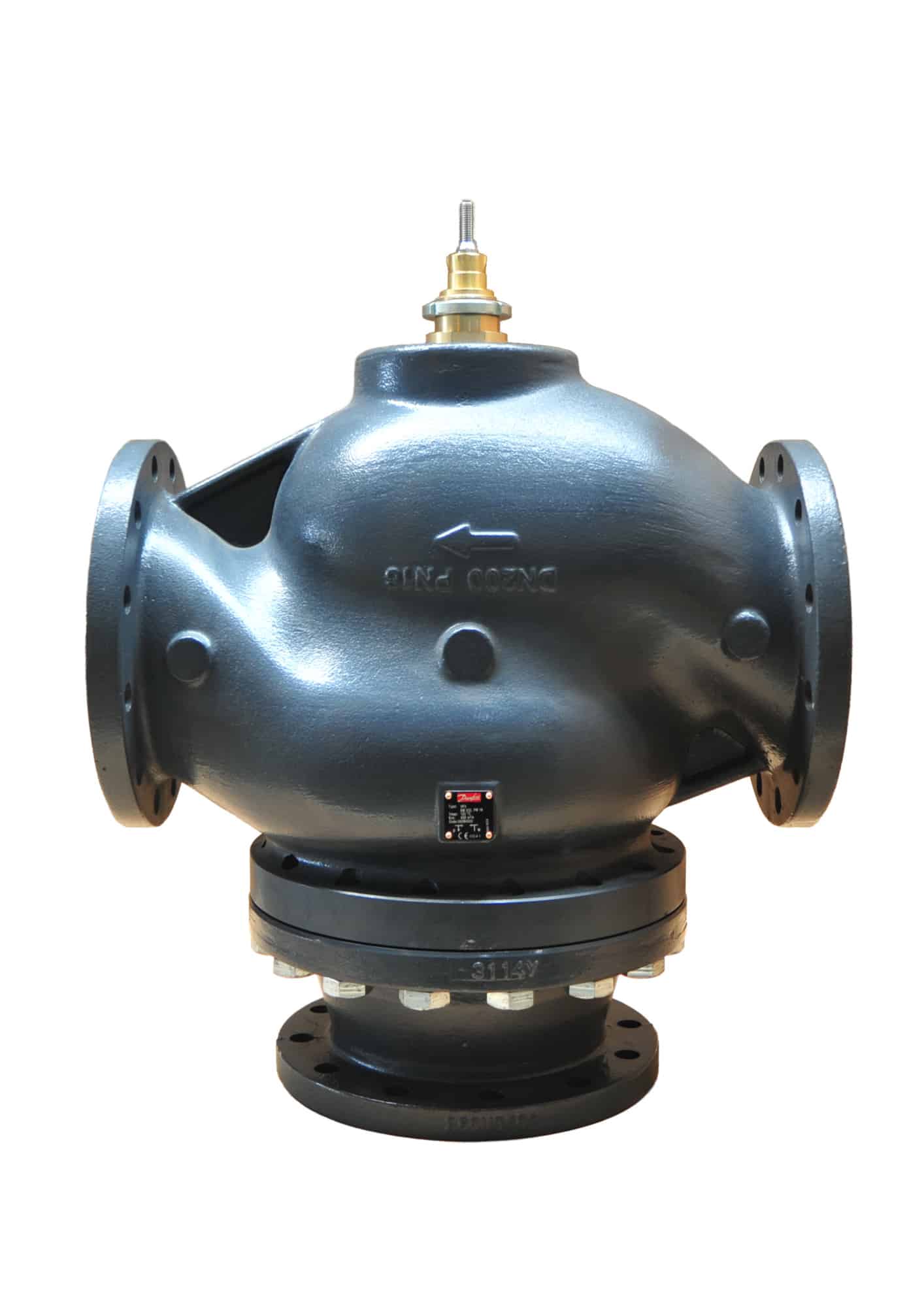

VF3 PN16 200/630 3-way seated flange
| Gross weight |
239.1 Kilogram |
| Net weight |
239 Kilogram |
| Volume |
547.2 Liter |
| EAN |
5710104508504 |
| Type |
VF 3 |
| Product group |
Other valves |
| Application |
Heating and cooling |
| Application alternative VSP |
District heating |
| Cavitation factor |
0.45 |
| China RoHS compliance |
Out of scope |
| Connection types |
Flange |
| Contains batteries |
No |
| Control ratio |
50:1 |
| Description |
VF3 PN16 200/630 3-way seated flange |
| Diameter [mm] |
200 mm |
| EU RoHS compliance |
Out of scope |
| Flow characteristic |
Equal percentage |
| Function |
Mixing valve |
| Kvs values [m³/h] |
630 m³/h |
| Media pH [Max] |
10 |
| Media pH [Min] |
7 |
| Media temperature [°C] [Max] |
130 °C |
| Media temperature [°C] [Min] |
-10 °C |
| Medium alternative |
Glycolic water up to 50% |
| Mounting version |
Flow |
| Number of ports |
3 |
| Permissible media |
District heating/cooling circulation water |
| Pressure nominal [bar] |
16 bar |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| SCIP dossier no. |
bc60a1f4-fe0c-4ec8-9e0a-9c8316b7044c |
| SCIP dossier product name |
VF3 DN200-300 |
| Stroke [mm] |
57 mm |
| Valve body material |
Grey cast iron (EN-GJL-250) |
| Valve cone material |
Stainless steel |
