Water Detection Module WL-DT24
Price range: £30.00 through £33.00
A range of single-zone water leak detection modules in DIN mounting carriers.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Description
The WL-DT24 has been designed as a low-cost water detection module suitable for use as a level alarm for water tanks or drip trays.
It has 1 normally open contact and can be supplied as a panel- or DIN rail-mount.
Specification
Output: 10Amp @ 230Vac Normally open contact
Supply Voltage: 24Vac/dc +/- 10% 25mA max.
Termination: Rising clamp for 0.5 to 2.5mm² cable
Ambient: -10 to +40°C
Dimensions: Din rail mount: 58(W) x 50(D) x 92(H)mm

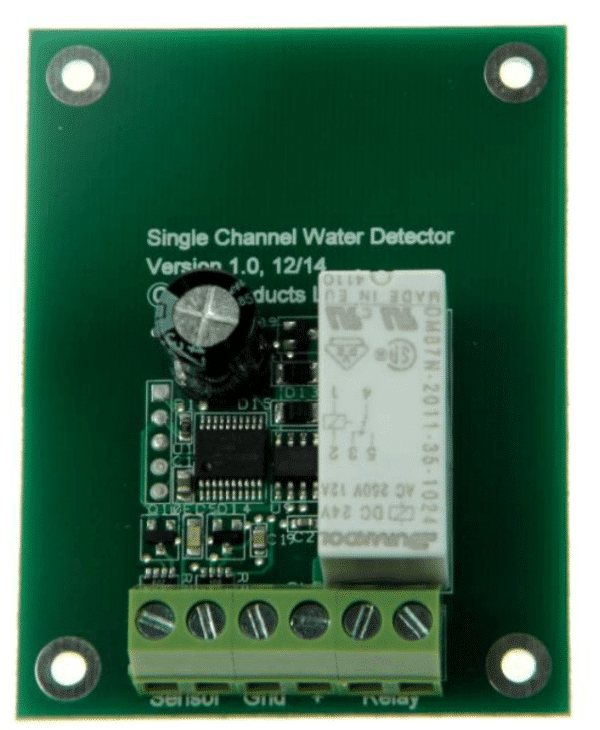

WL-DT24 24-Volt Water Detection Module (Panel Mount)

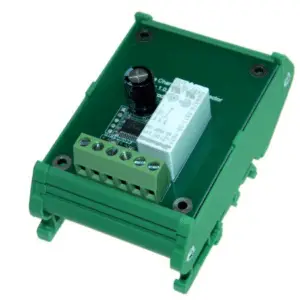

WL-DT24/D 24Volt Water Detection Module (Rail Mount)
LED Status:
Steady green– Standby
Short Pulse– Short circuit sensor.
Quick flashing– water detected.
Additional information
| Types |
DIN Rail Mounted, Panel Mounted |
|---|
