Ball Valves, Belimo, FCU Controllers, Humidity Sensors, Pressure Products, Water Leak/Condensation Detection

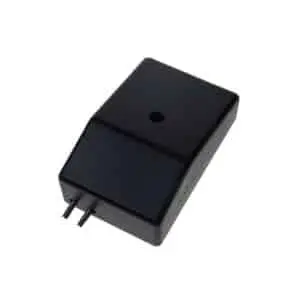

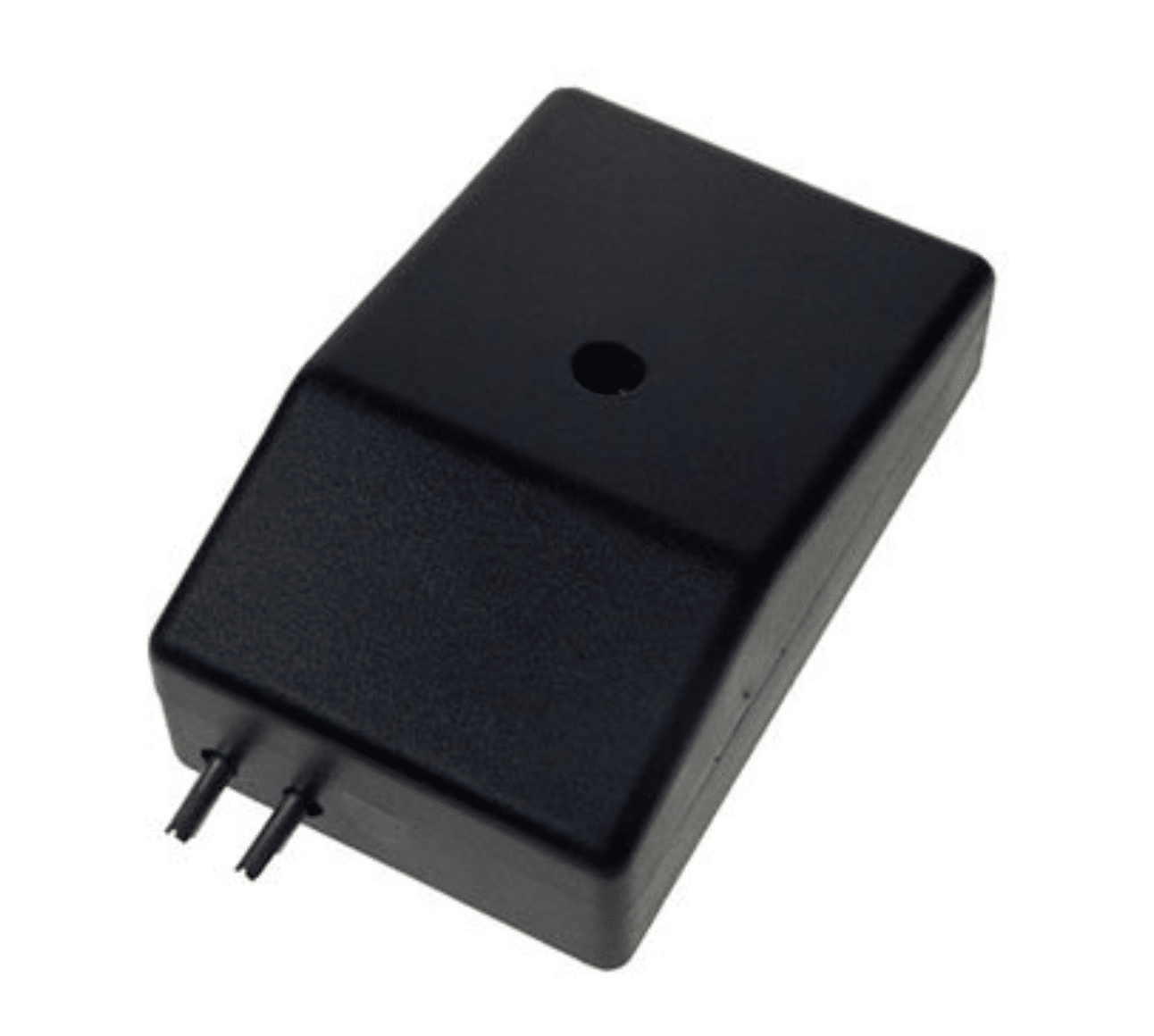

Water Detection Point Sensor WL-PS1
£16.50
A range of single-zone water leak detection modules in DIN mounting carriers.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
A range of single-zone water leak detection modules in DIN mounting carriers.
One or more detector tapes or cables to remote water sensors totalling up to 200m in length can be connected and receive an AC excitation signal to minimise corrosion.
A relay output is provided with an LED indicating the alarmed condition.
Typical point water sensor applications include detecting a pool of water caused by a leak.
Specification
Connection Type: 2-way terminal block
Dimensions: Body: 75 x 45 x 32mm – Probes: 8mm long 8mm separation
Materials: Probes: Stainless steel – Body: ABS
