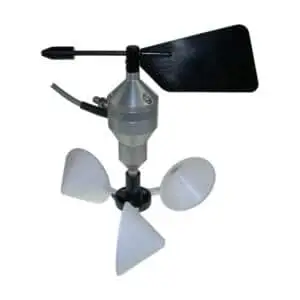

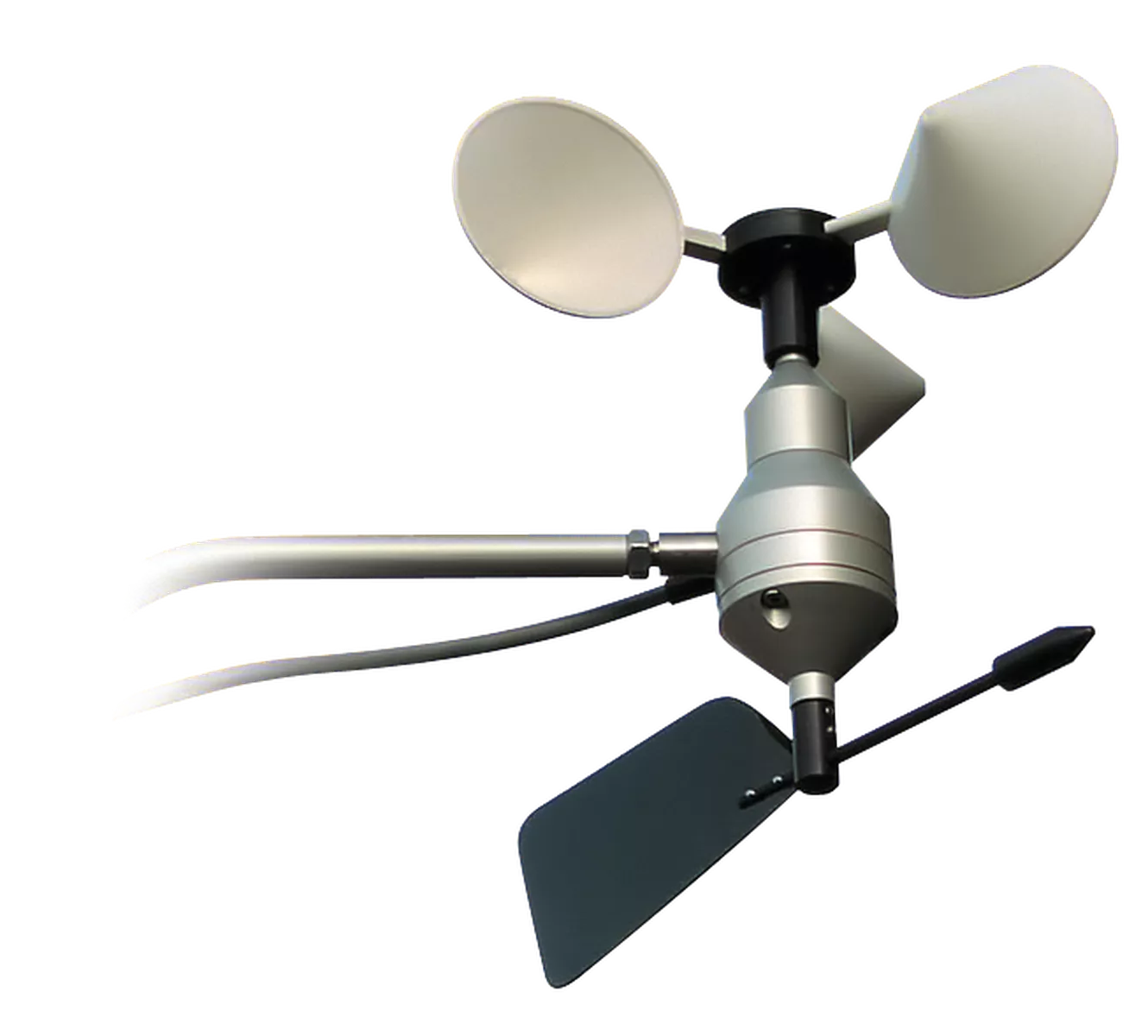

Wind Speed and Direction Sensor – AV-WSD
£1,140.00 Exc. VAT Exc. VAT
The AV-WSS wind speed sensor provides wind speed measurements and converts those measurements into a pulsed output which can be read by a PLC or Building Management System.
Description
The AV-WSS wind speed sensor provides wind speed measurements and converts those measurements into a pulsed output which can be read by a PLC or Building Management System.
Specification

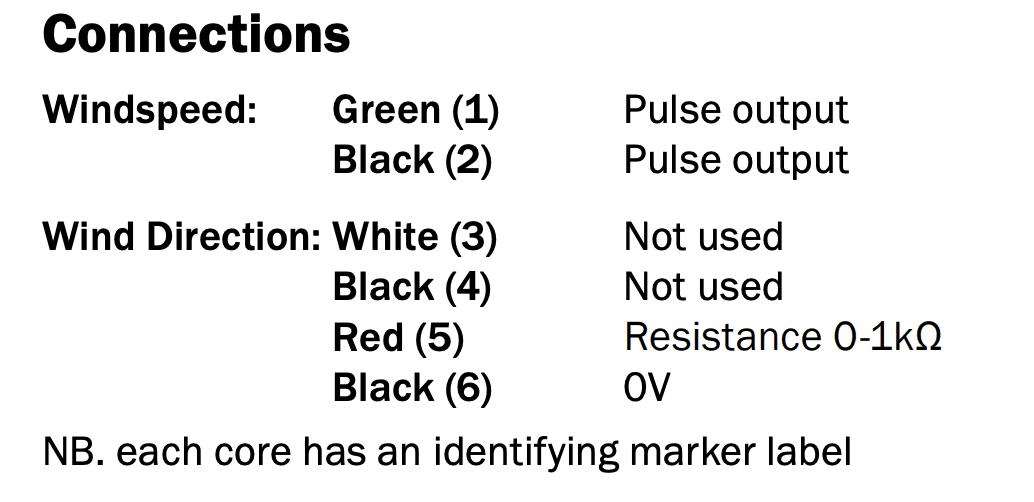

Electrical Conn: Flying lead 3m long.
Ambient Temperature: -20˚C/+70˚C
Dimensions: Height 280mm.
Protection: IP65
Wind Speed Output: 1 contact closure per 1.493m/s (zero bounce).
Min. Start Speed: 0.5m/s
Accuracy: ± 2%
Contact Rating: 50W, 100Vdc max, 1A
Direction Output: 0-1KΩ for 0-357˚
Mechanical Travel: 360˚ endless travel.
Electrical Travel: 357˚ (± 2˚)
Resistance Tolerance: ± 3%
Linearity Tolerance: ± 0.5%
