Wind Speed And Direction Switch – AV-WSDS
£795.00
Wind Speed And Direction Switch – AV-WSDS
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Description

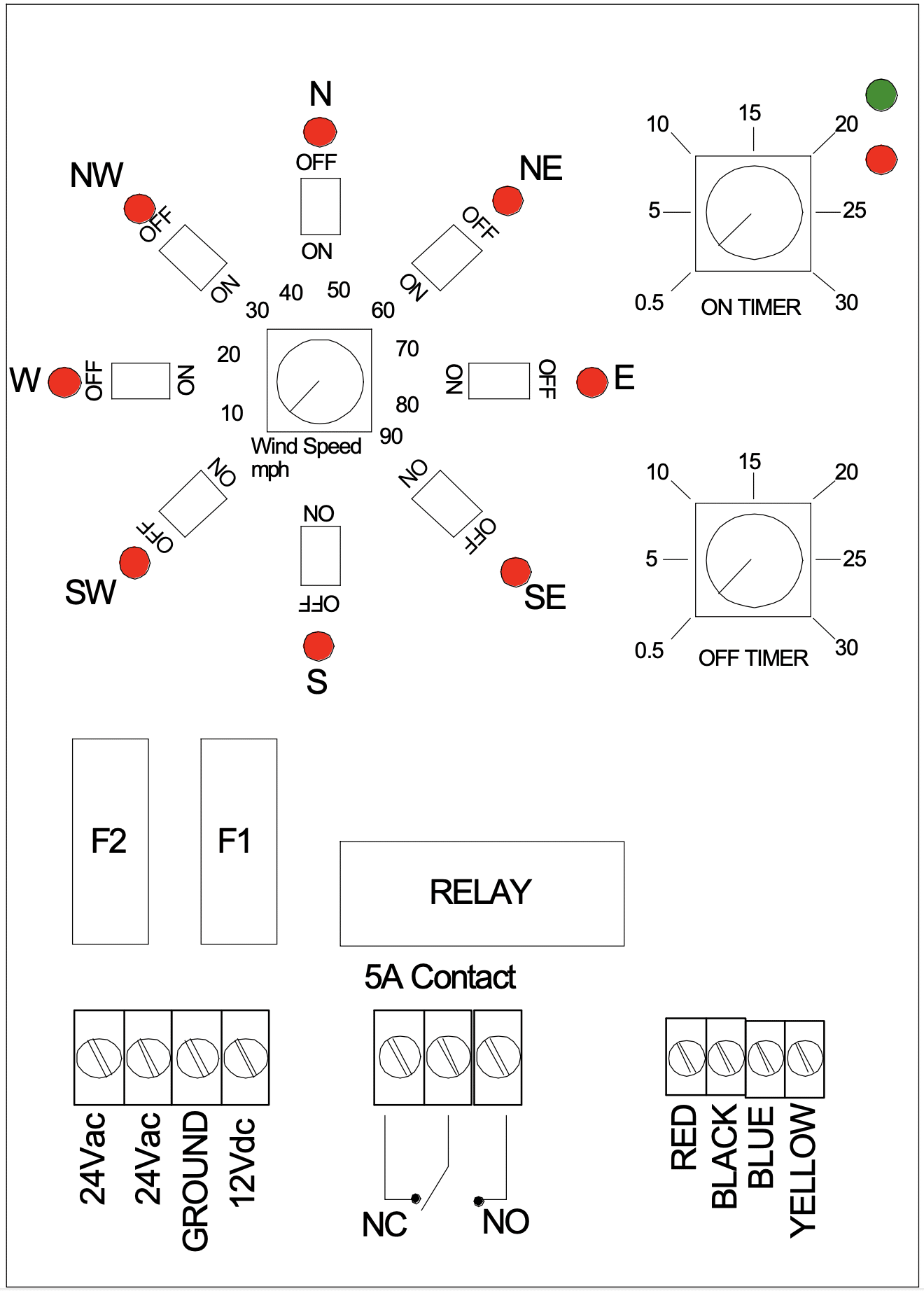

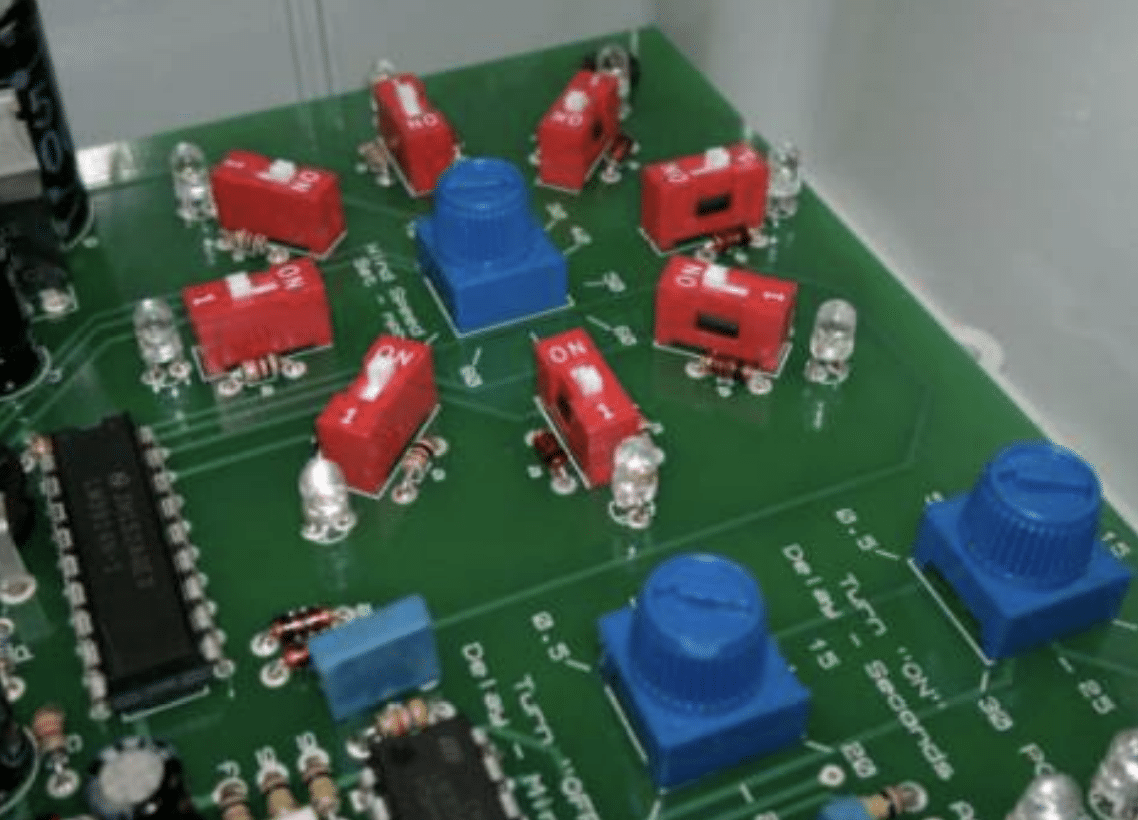

The AV-WSDS is designed to operate from both 24 Vac and 12 Vdc power sources. The controls box is housed in an IP65-rated enclosure with a clear lid, allowing the indicator lights and controls to be easily viewed from the outside. Cable entry to the control box is via three PG7 cable glands, accepting cables between 3 & 6.5mm in diameter. Wind speed to 90mph selectable. Wind direction selectable via 8 DIP switches for each main compass point (N, NE, E, SE, S, SW, W, & NW). On-and-off timers are available to prevent frequent switching caused by unexpected wind gusts, etc.
Specification
The system is supplied with the following items:
- Control box
- Wind speed and direction sensor (inc alignment compass)
- 25m of 4-core cable
- 24V AC Adaptor
