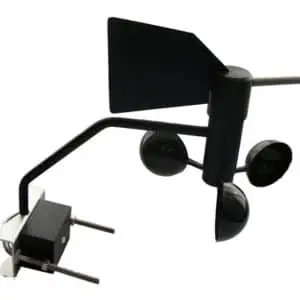

Wind Speed & Direction Sensor 4-20mA – AV-WSD-20
£795.00
Wind Speed & Direction Sensor 4-20mA – AV-WSD-20
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Description

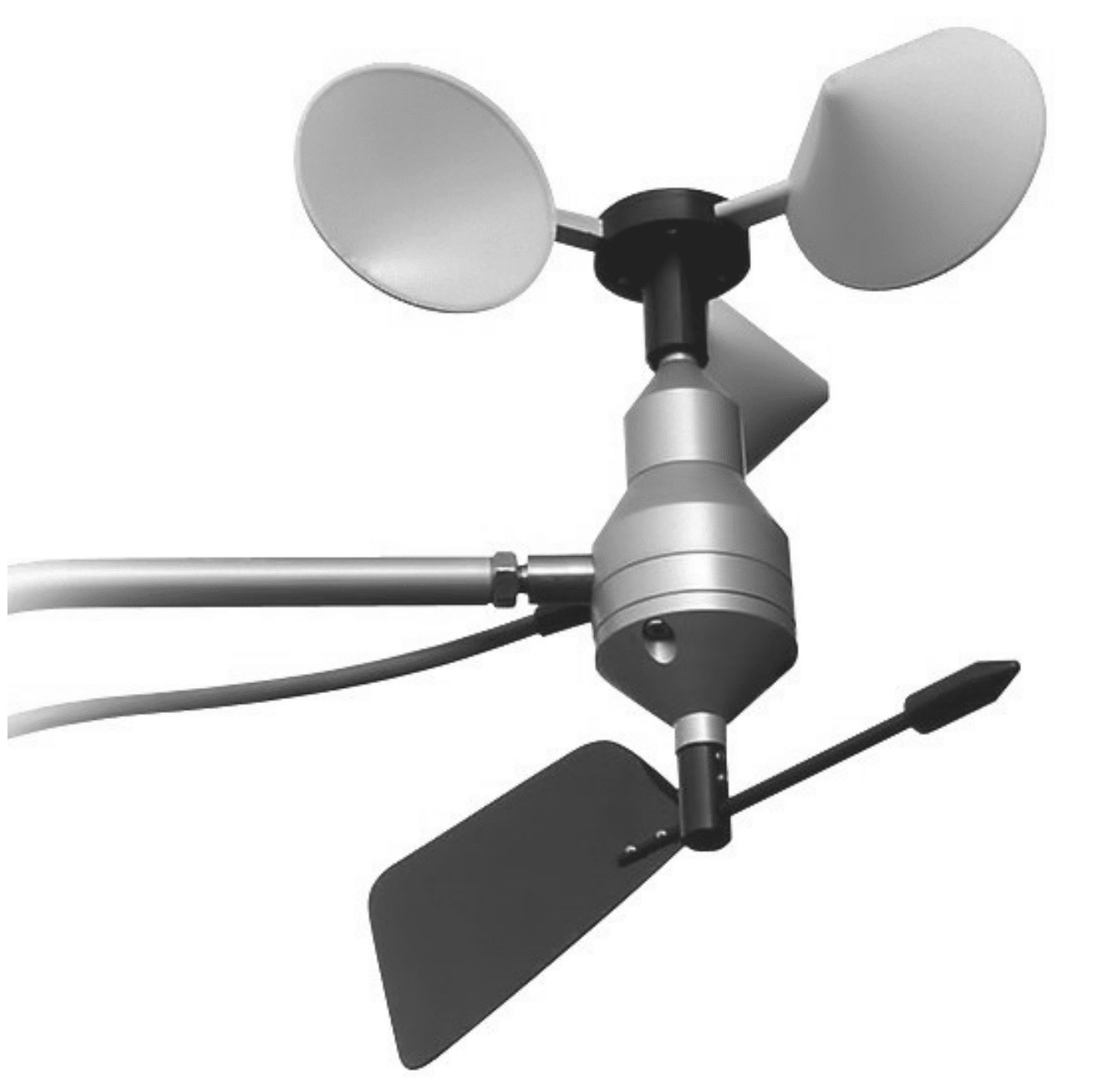

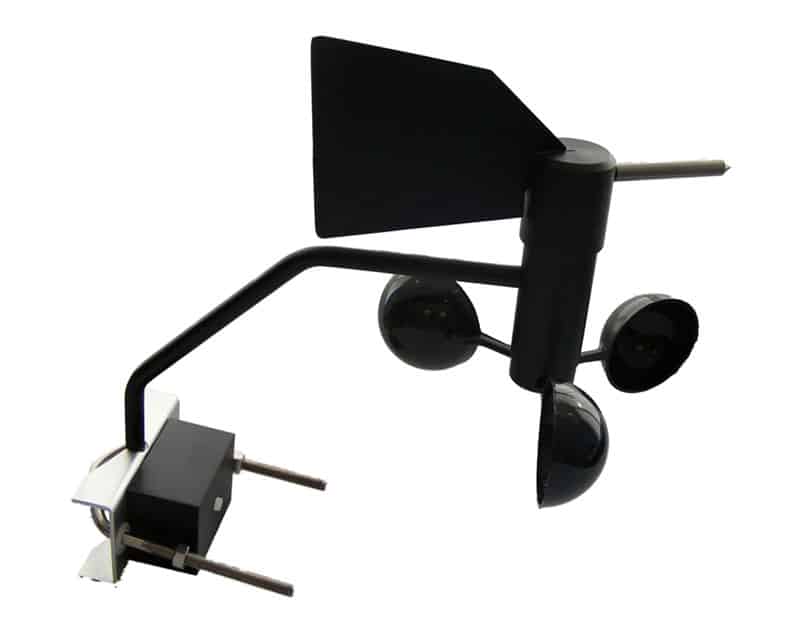

The AV-WSD-20 combined Wind Speed and Direction sensor is manufactured from anodised aluminium alloy, UPVC, and stainless steel with moulded polypropylene cups. The units are lightweight yet very robust. The sensors are designed to be mounted to a mast of between 30…50mm diameter by means of a V-shaped clamp and bracket. This allows for simple orientation to the North using the provided compass; the only setup required. Wind Direction is sensed by a precision conductive potentiometer that combines exceptionally long life with high sensitivity. Wind speed is derived from a Hall-effect solid-state magnetic switch activated by magnets in the cup rotor, running in the precision stainless-steel ball race and ‘Oilite’ bearings, giving very high sensitivity and very long life.
Specification

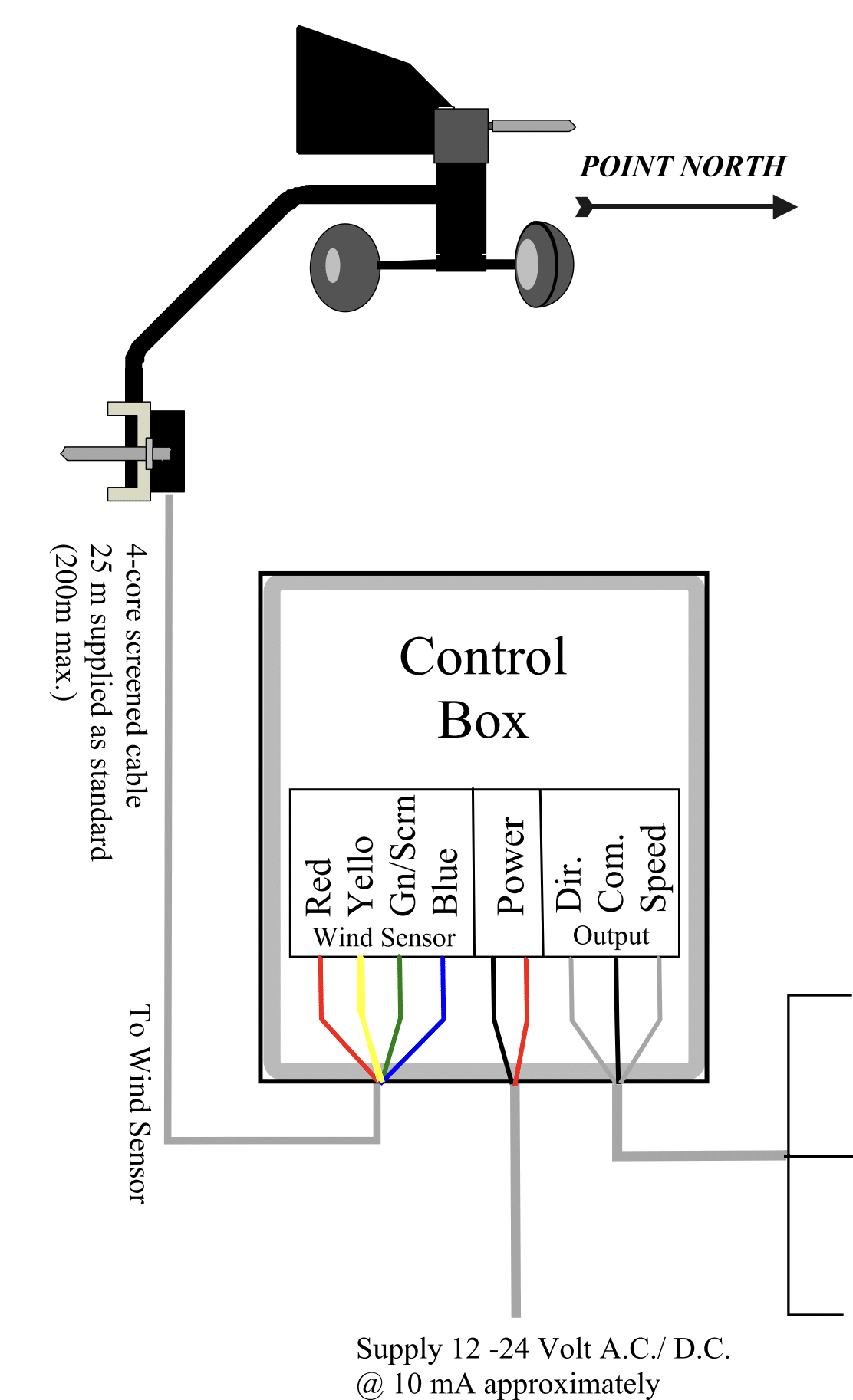

Electrical Connection: 4-core cable 25m supplied as standard.
Wind Speed Output: 0…10Vdc range 0…50m/s OR 4-20mA.
Accuracy: ± 5%
Direction Output: 0…10Vdc range 0…50m/s OR 4-20mA.
Mechanical Travel: 360˚C endless travel.
Resistance Tolerance: ± 5%
