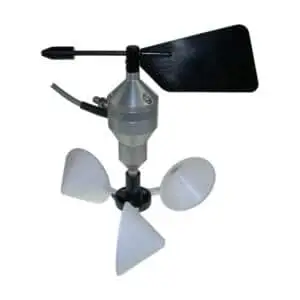

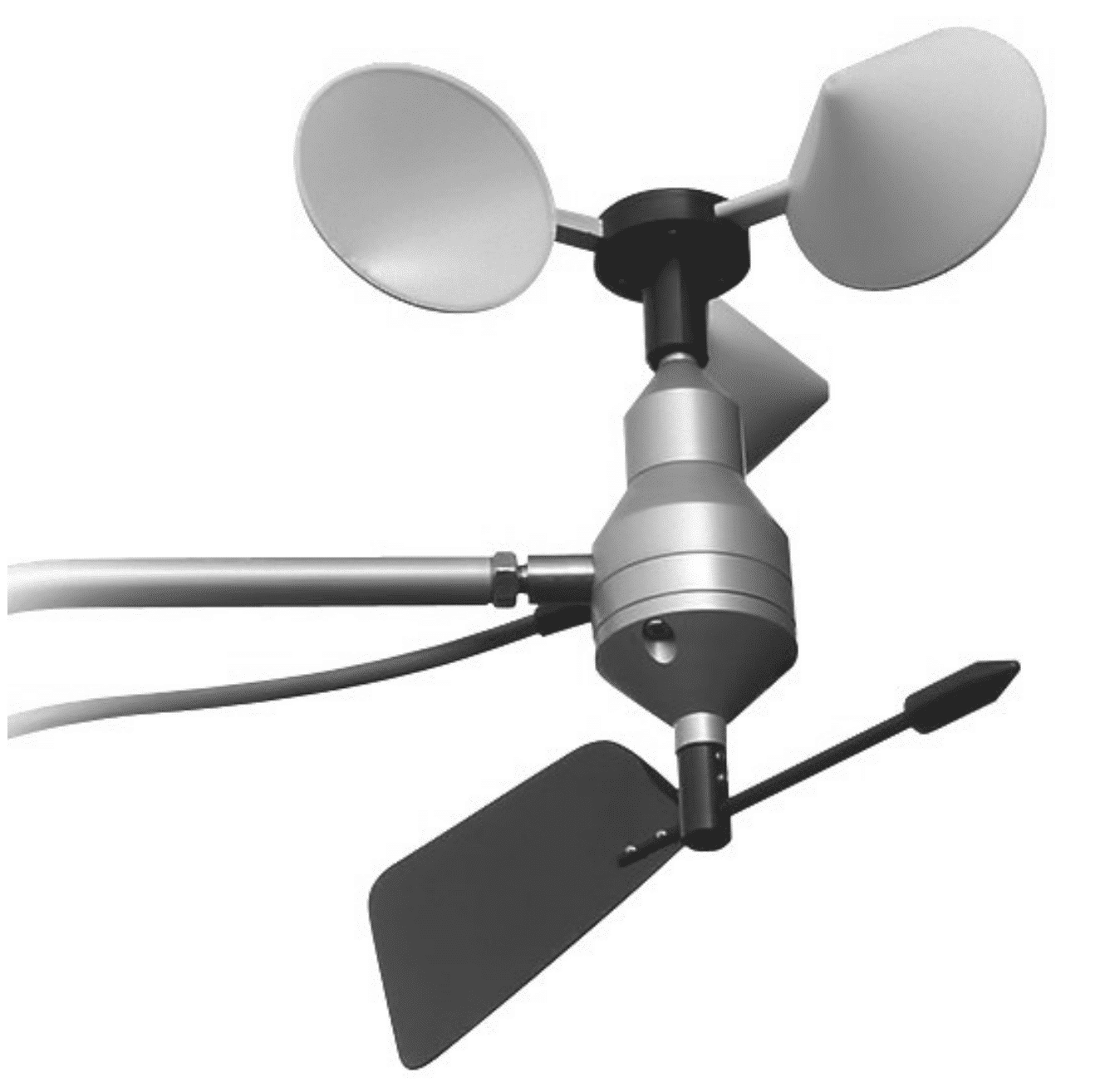

Wind Speed Sensor – AV-WSS

The AV-WSS wind speed sensor provides wind speed measurements and converts them into a pulsed output that can be read by a PLC or Building Management System.

Specification

Electrical Conn:                Flying lead 3m long.
Ambient Temperature:     -20˚C/+70˚C
Dimensions:                     Height 280mm.
Protection:                       IP65
Wind Speed Output:        1 contact closure per 1.493m/s (zero bounce).
Min. Start Speed:             0.5m/s
Accuracy:                         ± 2%
Contact Rating:               50W, 100Vdc max, 1A
Direction Output:            0-1KΩ for 0-357˚
Mechanical Travel:         360˚ endless travel.
Electrical Travel:             357˚ (± 2˚)
Resistance Tolerance:    ± 3%
Linearity Tolerance:        ± 0.5%
