Wireless Room CO2 Indicator
£141.00
The Gen 3 sensors feature a sleek, modern design, creating our slimmest room sensor to date.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 12 | 1 |
| 16 | 1.5 |
| 20-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description

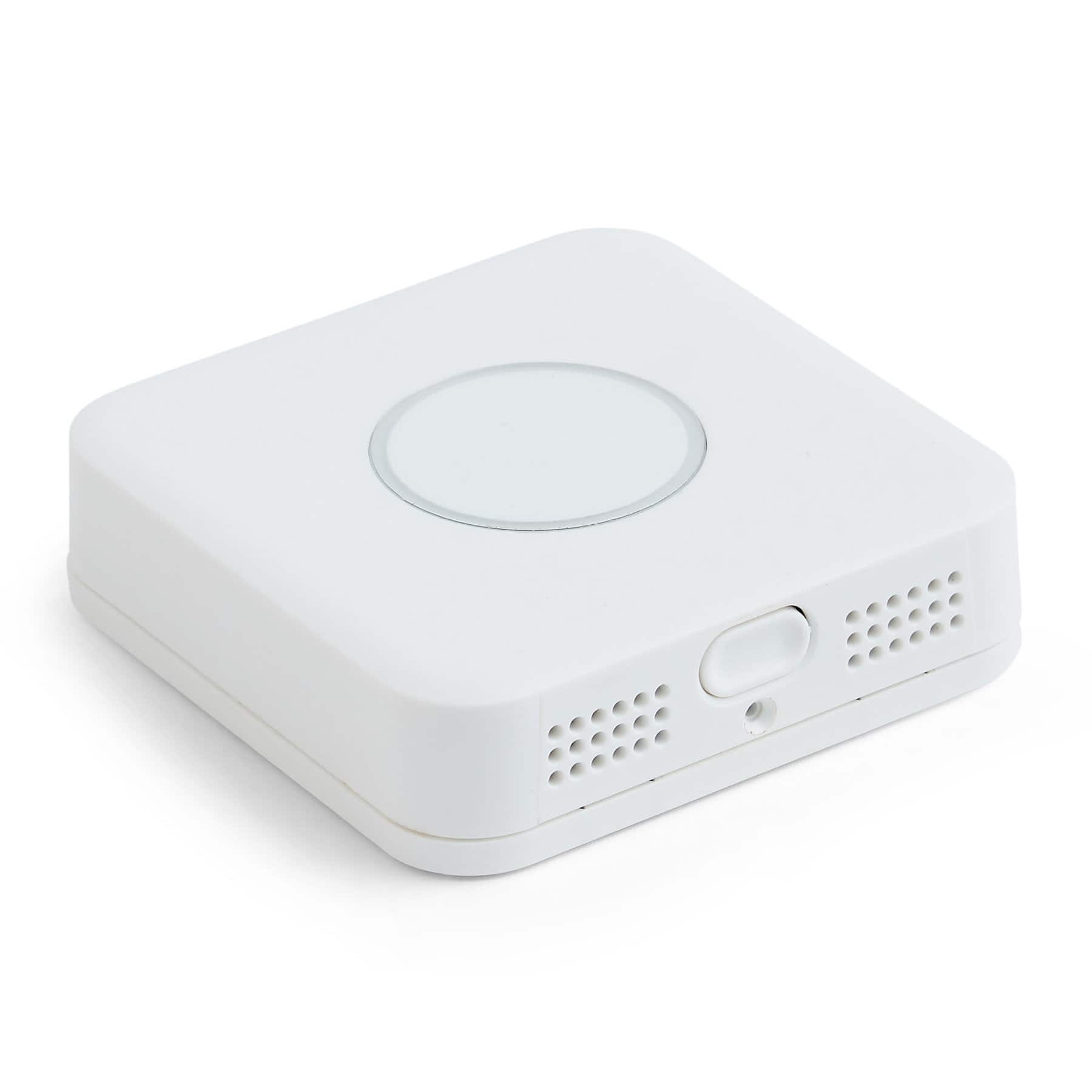

The Battery-Powered CO2 Indicator monitors carbon dioxide levels in a space and displays them via a traffic-light LED.
Ideal for schools and universities, they provide a visual indication of whether extra ventilation is required in a space.
CO2 sensors with LED indicators offer extremely effective visual guidance for carbon dioxide levels, a key indicator of the air quality. They indicate the need to ventilate the space or open windows

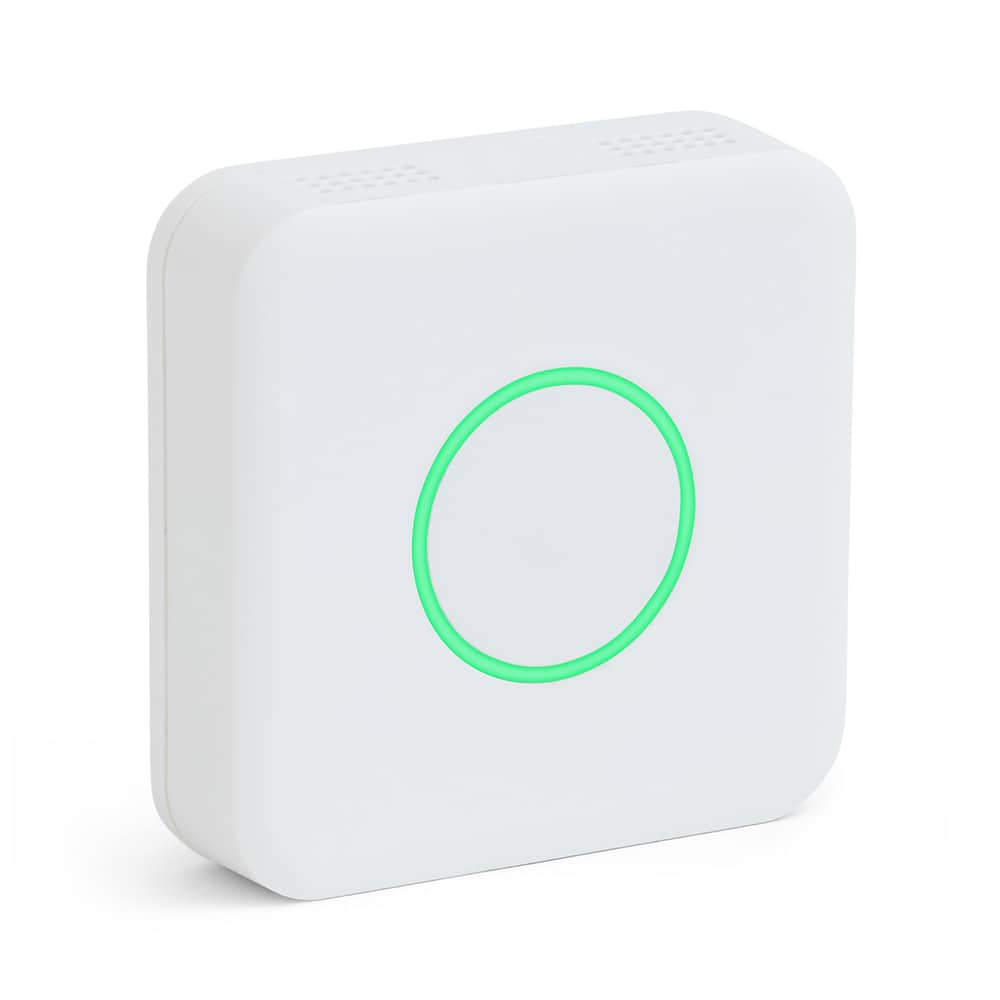

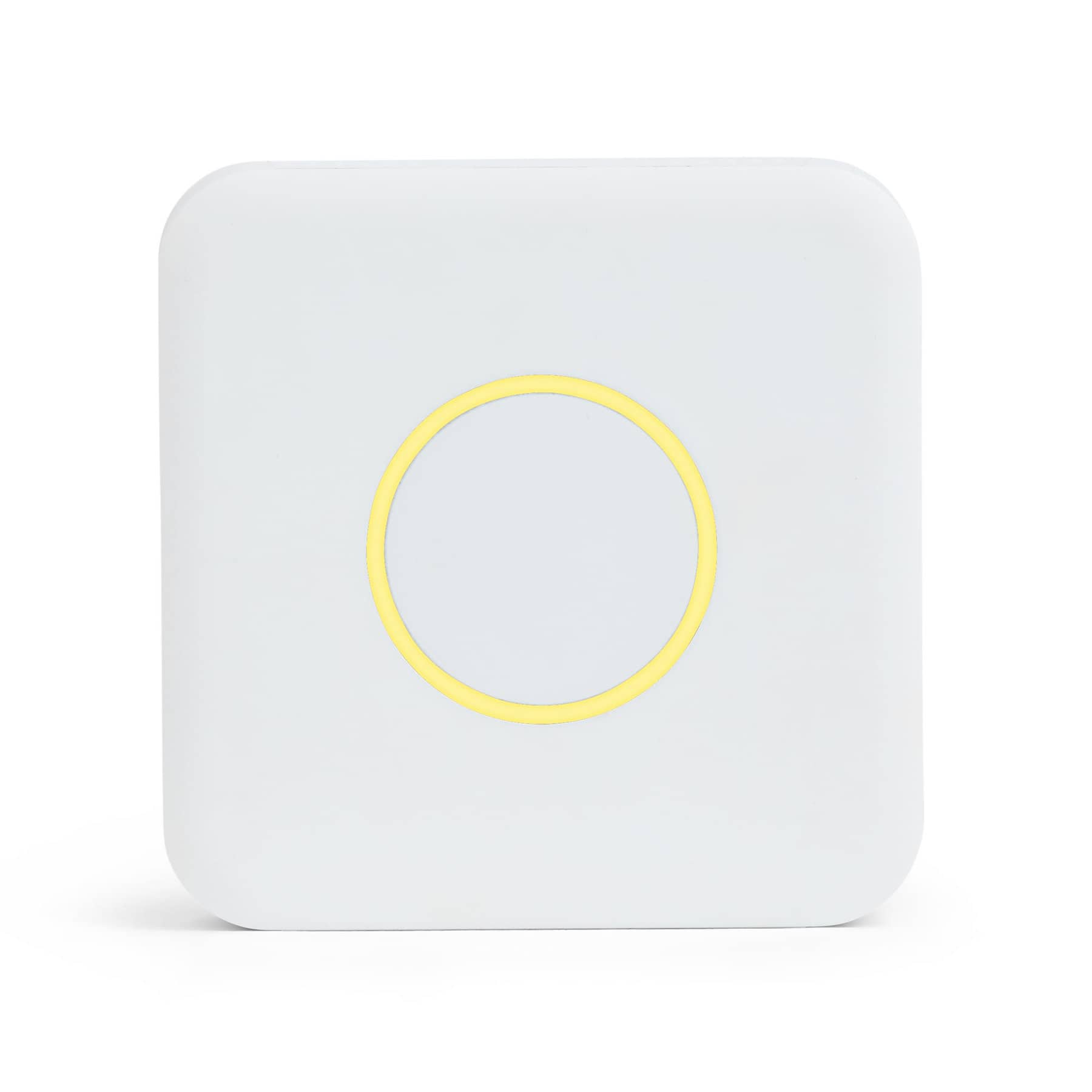

Depending on the CO2 levels in the space, the LED HALO will flash to let the occupant know that levels are rising.
The CO2 indicator uses a low-power-consuming CO2 cell, giving it the best possible battery life. Because it uses a 3.6V, 2600mAh lithium thionyl chloride battery, you do not need to wire the unit, making it extremely easy and cost-effective to install.
The Battery-Powered CO2 Indicator is rated IP30 and is designed for indication purposes only.
Part of our CO2 and CO sensor range, we also offer 0-10V wired CO2 sensors or a full wireless solution.
Key Benefits:
- LED indication for CO2 levels
- Battery powered, with a battery life of up to three years
- Quick to install – no wires
- Low power-consuming CO2 cell for excellent battery life
- Non-dispersive infra red (NDIR) CO2 Sensor
- Designed and manufactured in the UK
Additional information
| Output Type |
0-10V, 4-20mA |
|---|---|
| Colour |
White, Black |
