10Vdc Single Relay and Base – IOR1-10DC
£5.56
The IOR1 range of single relay modules is suitable for a wide range of voltages and is supplied complete with a DIN rail mounting base and retaining clip.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Description
The IOR1 range of single relay modules is suitable for a wide range of voltages and is supplied complete with a DIN rail mounting base and retaining clip.

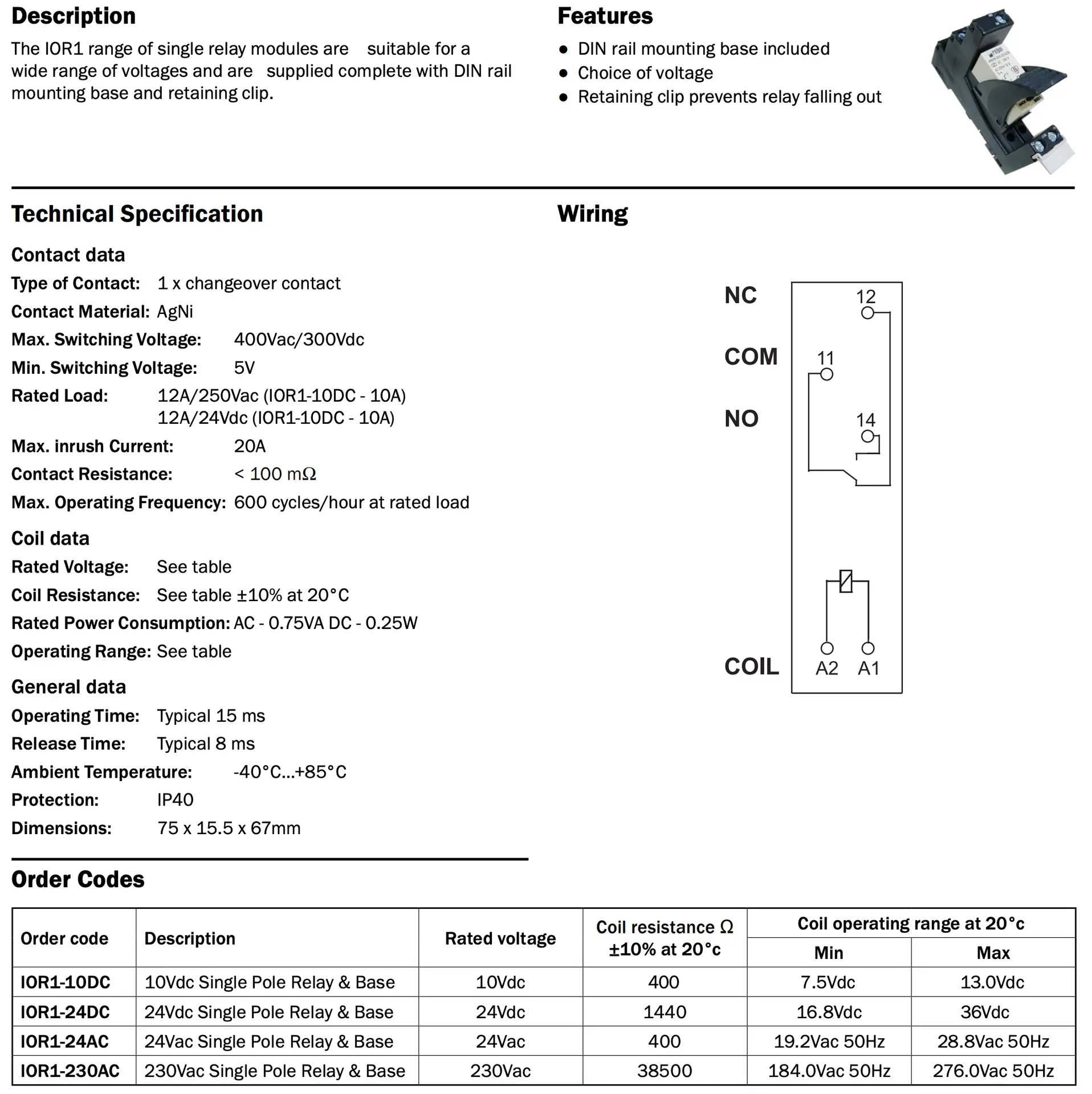

Specification
Coil Rated Voltage: 10Vac
Coil Resistance: 400Ω ± 10% at 20°c
Rated Power Consumption: 0.75VA
Operating Range at 20°C: Min. 19.2Vac 50Hz, Max. 28.8Vac 50Hz
Switching Load: 12Amps
Operating Time: Typical 15 ms
Release Time: Typical 8 ms
Ambient Temperature: -40°C…+85°C
Protection: IP40

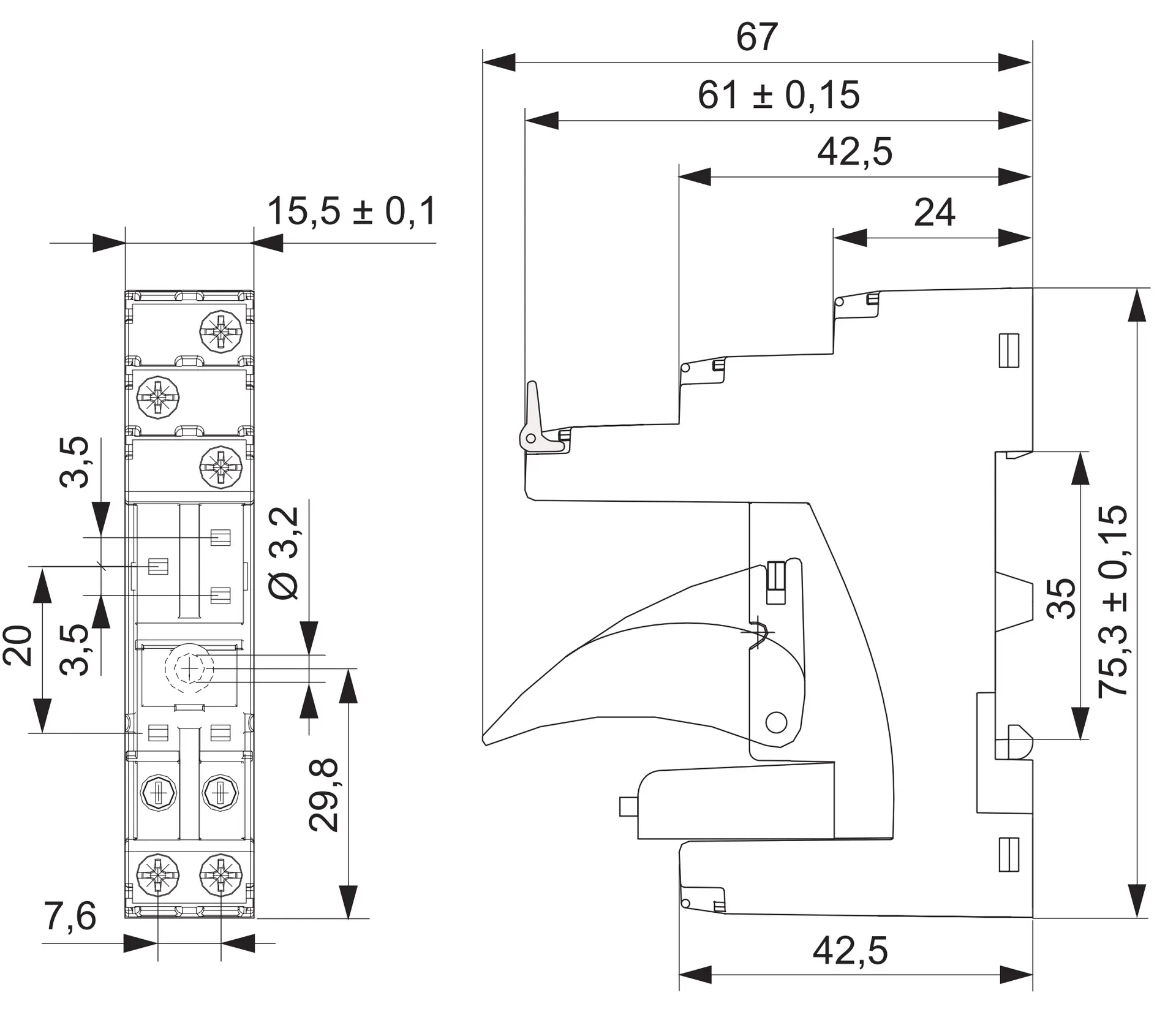

Dimensions: 75 x 15.5 x 67mm
Additional information
| Weight | 0.67 kg |
|---|---|
| Dimensions | 6 × 8 × 5 cm |
| Amps |
4A, 6A, 8A |
