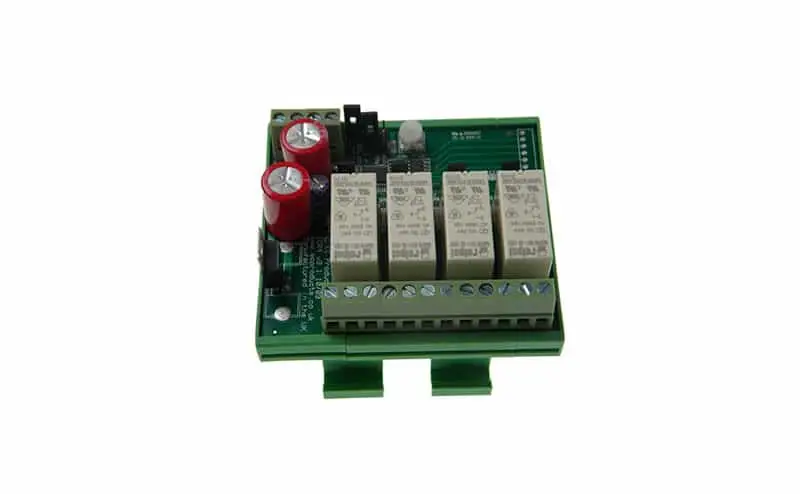

Four Stage Relay Module – IOR4
£47.25
The IOR4 is intended for use with BMS controllers to convert an analogue control output to a binary, staged, or sequenced relay mode. LEDs indicate correct operation, and Hand/Off/Auto jumpers ease commissioning.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
The IOR4 is intended for use with BMS controllers to convert an analogue control output to a binary, staged, or sequenced relay mode. LEDs indicate correct operation, and Hand/Off/Auto jumpers ease commissioning. Low current draw from the 0-10Vdc controller output means that the IOR4 can work successfully with most BEMS controllers.
Specification
Input Signal: 0 – 10Vdc 1mA min. into 22kΩ impedance
Output Contacts: 8A at 230Vac (resistive load)
Power Supply: 24Vac ± 15% @ 50Hz or 24Vdc ± 15% / -6%, 90mA max.
Hysteresis: ± 0.2Vdc about switching points (± 0.1Vdc in binary)

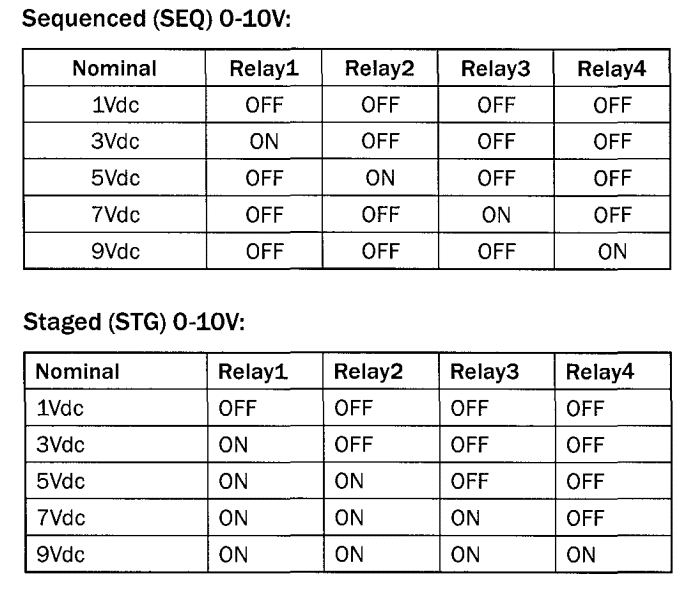

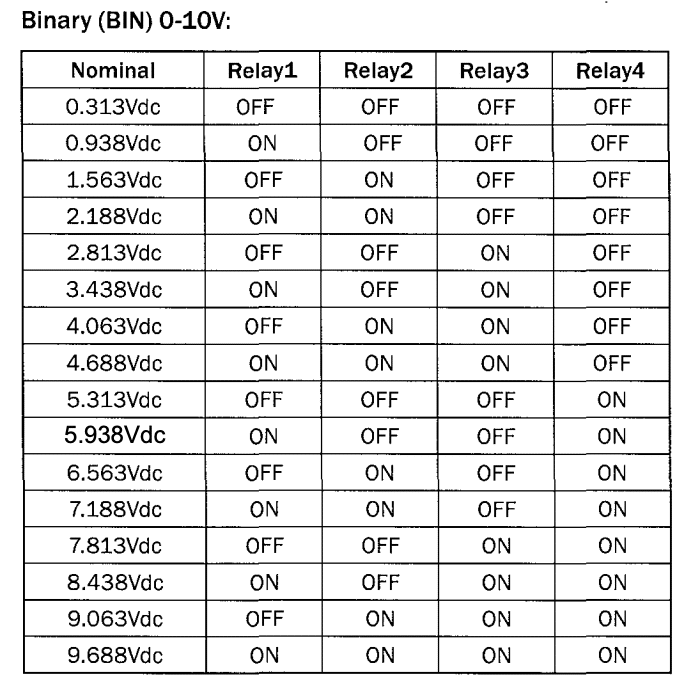

Operating Modes: Binary, raise/lower, staged, sequenced

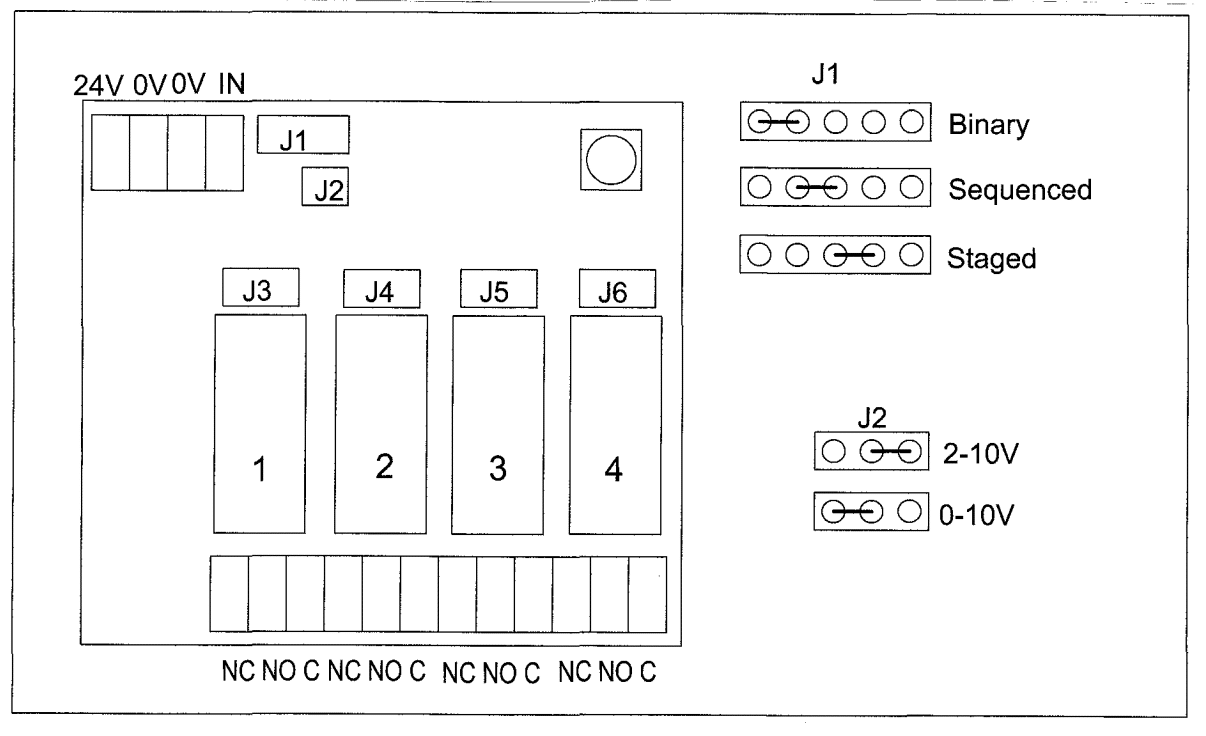

Manual Override: On/Off/Auto jumper selectable
Electrical Terminals: Rising cage connectors for 0.5 – 2.5mm² wire
Operating Temp.: -10˚C to +40˚C RH 0 – 80% non-condensing
Dimensions: 52(H) x 82(W) x 77(D)mm
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 33 × 10 × 5 cm |
| Amps | 4A, 6A, 8A |
