AB-QM, DN 100, Test plugs: With test plugs, Flange

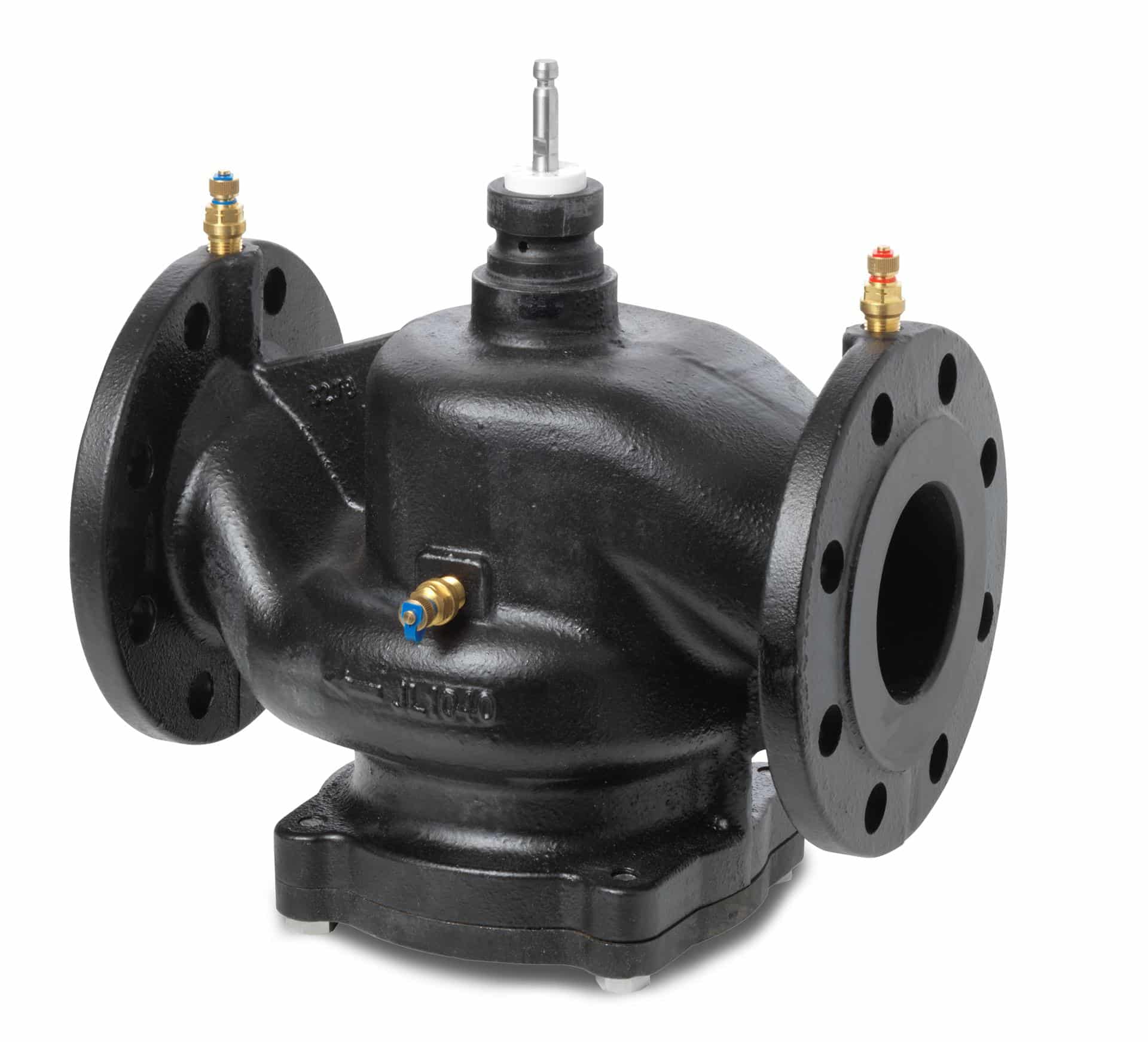

AB-QM DN 100, with three test plugs, pressure-independent balancing and control valve
| Gross weight |
57.8 Kilogram |
| Net weight |
57.8 Kilogram |
| Volume |
88.8 Liter |
| EAN |
5710104034102 |
| Type |
AB-QM |
| Product group |
Pressure-independent balancing and control valves |
| Actuator connection |
Danfoss standard |
| China RoHS compliance |
Out of scope |
| Connection types |
Flange |
| Contains batteries |
No |
| Description |
AB-QM DN 100, with three test plugs, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] |
600 KPa |
| EPD available |
Yes |
| EU RoHS compliance |
Yes with exemptions |
| EU RoHS exemption clause |
6(c) |
| Flow nominal [m³/h] |
38 m³/h |
| Media temperature [°C] [Max] |
120 °C |
| Media temperature [°C] [Min] |
-10 °C |
| Pressure class |
PN 16 |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| SCIP dossier no. |
b01c3cca-8324-4bda-8070-982597d4a155 |
| SCIP dossier product name |
AB-QM DN65-150 |
| Stroke [mm] |
15 mm |
| Test plugs |
With test plugs |
| Valve body material |
Grey iron (EN-GJL-250) |
| Valve size |
DN 100 |
| Version |
AB-QM |
