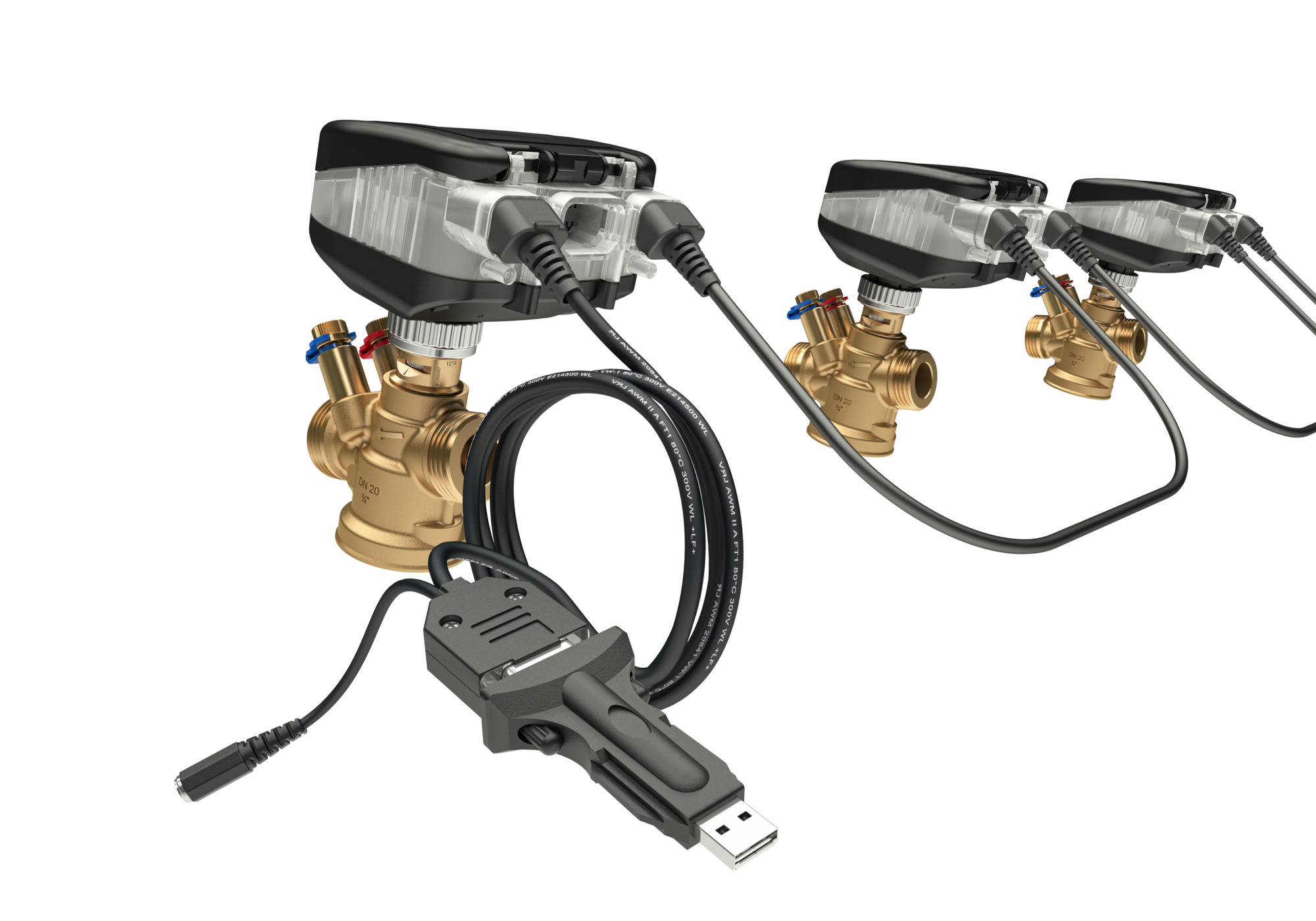

AB-QM, DN 32, Test plugs: With test plugs, Internal thread ISO 7/1; Rp 1 ¼
AB-QM, DN 32, with test plugs, internal thread, PN25, pressure independent balancing and control valve
| Gross weight |
1.857 Kilogram |
| Net weight |
1.735 Kilogram |
| Volume |
3.225 Liter |
| EAN |
5715162441596 |
| Type |
AB-QM |
| Product group |
Pressure-independent balancing and control valves |
| Actuator connection |
M30 x 1.5 |
| China RoHS compliance |
Out of scope |
| Connection types |
Internal thread ISO 7/1
Rp 1 ¼ |
| Contains batteries |
No |
| Description |
AB-QM, DN 32, with test plugs, internal thread, PN25, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] |
600 KPa |
| Differential pressure [kPa] [Min] |
20 KPa |
| EU RoHS compliance |
Yes with exemptions |
| EU RoHS exemption clause |
6(c) |
| Flow limitation |
Yes |
| Flow nominal [m³/h] |
3.6 m³/h |
| Leakage rate with recommended actuator (IEC 60534-4) |
Class III |
| Media temperature [°C] [Max] |
95 °C |
| Media temperature [°C] [Min] |
-20 °C |
| Mounting position |
Supply/return pipe |
| Pressure class |
PN 25 |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| SCIP dossier no. |
54e972d3-3b3b-47b6-b954-706d7127f196 |
| SCIP dossier product name |
AB QM DN32 |
| Setting range [%] [max] |
100 % |
| Setting range [%] [min] |
10 % |
| Setting scale |
Yes |
| Shut-off function |
Yes |
| Shut-off leakage rate (ISO 5208) |
Rate A |
| Storage and Transport temperature [°C] [Max] |
70 °C |
| Storage and Transport temperature [°C] [Min] |
-40 °C |
| Stroke [mm] |
4 mm |
| Test plugs |
With test plugs |
| Valve body material |
DZR Brass (CW 602N) |
| Valve size |
DN 32 |
| Version |
AB-QM 4.0 |
