Relay and IO Modules

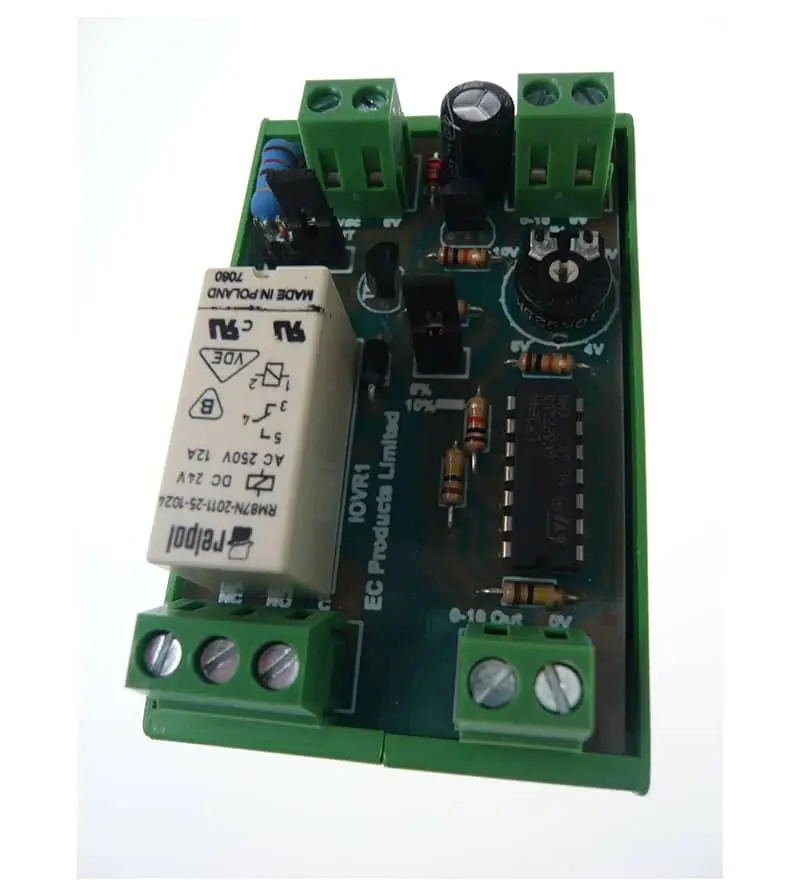

Adjustable Single Relay Module – IOVR1
£27.35
The IOVRI is an SPCO change-over relay output from 0 to 10Vdc with a fully adjustable switch point. The unit also has a buffered 0-10Vdc output, which will allow one 0-10V input to be passed on to another device.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
The IOVRI is an SPCO change-over relay output, ranging from 0 to 10 Vdc, with a fully adjustable switch point.
The unit also has a buffered 0-10Vdc output, which will allow one 0-10V input to be passed on to another device.
Specification
Power Supply: 24Vac +/- 10% @ 50Hz / 24Vdc +/- 15% 40mA max.
Input Signal: 0…10Vdc 1mA min.

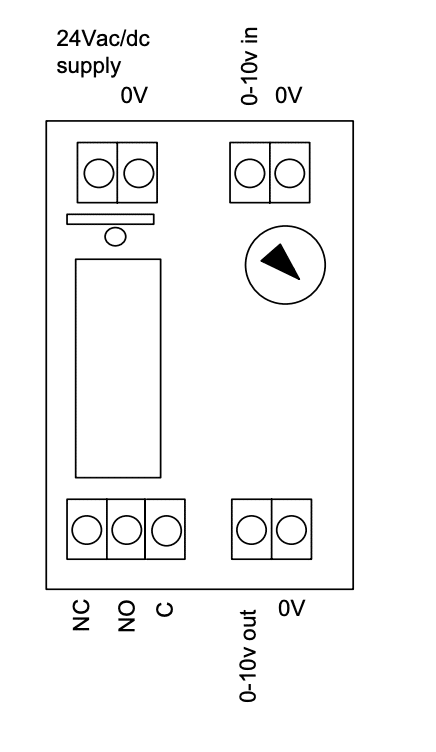

Connection: 1.5mm rising cage terminal.
Dimensions: 35 x 82 x 47mm
Output contacts: 8A @ 230Vac (resistive)
Additional information
| Weight | 0.31 kg |
|---|---|
| Dimensions | 6 × 8 × 5 cm |
| Amps | 4A, 6A, 8A |
