Air Differential Pressure Switch IP65 with Duct Kit
£53.00
Please select your pressure range from the below options
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |

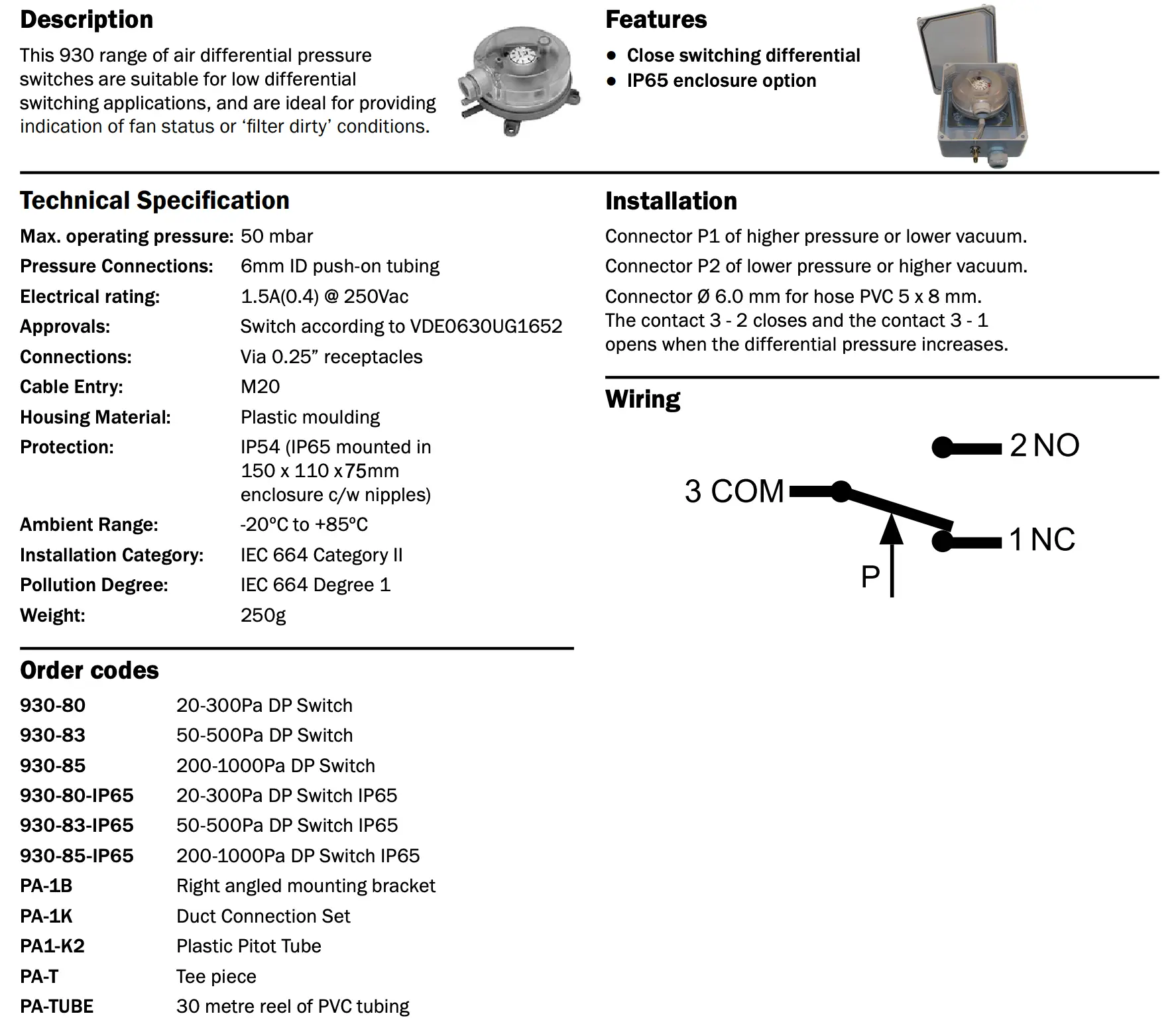

Description

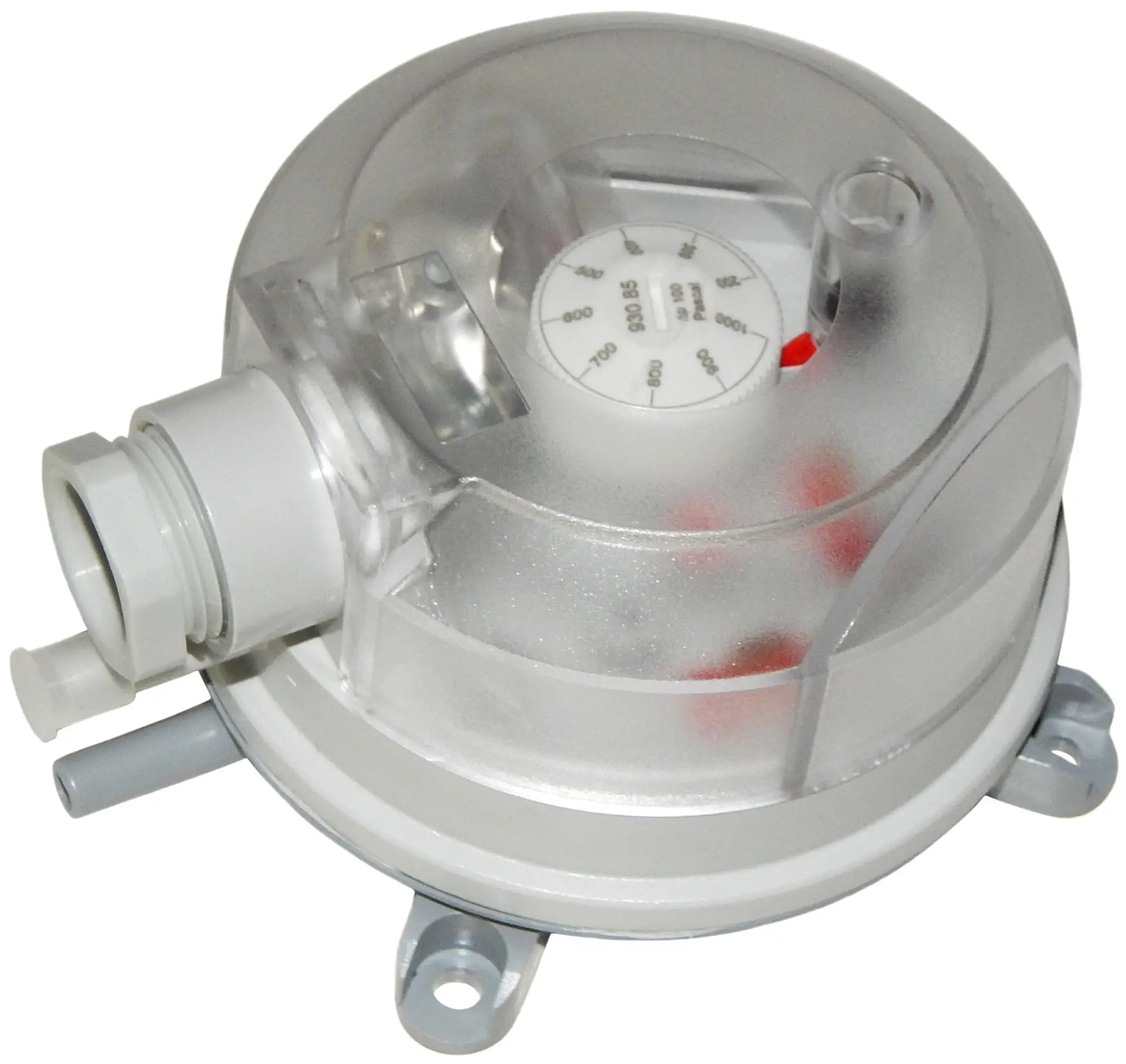

This 930 range of air differential pressure switches are suitable for low differential switching applications and are ideal for providing an indication of fan status or ‘filter dirty’ conditions.
Specification
Max. Operating Pressure: 50 mbar
Pressure Connections: 6mm ID push-on tubing
Electrical Rating: 1.5A (0.4) @ 250Vac
Approvals: Switch according to VDE0630UG1652
Connections: Via 0.25” receptacles
Cable Entry: M20
Housing Material: Plastic moulding

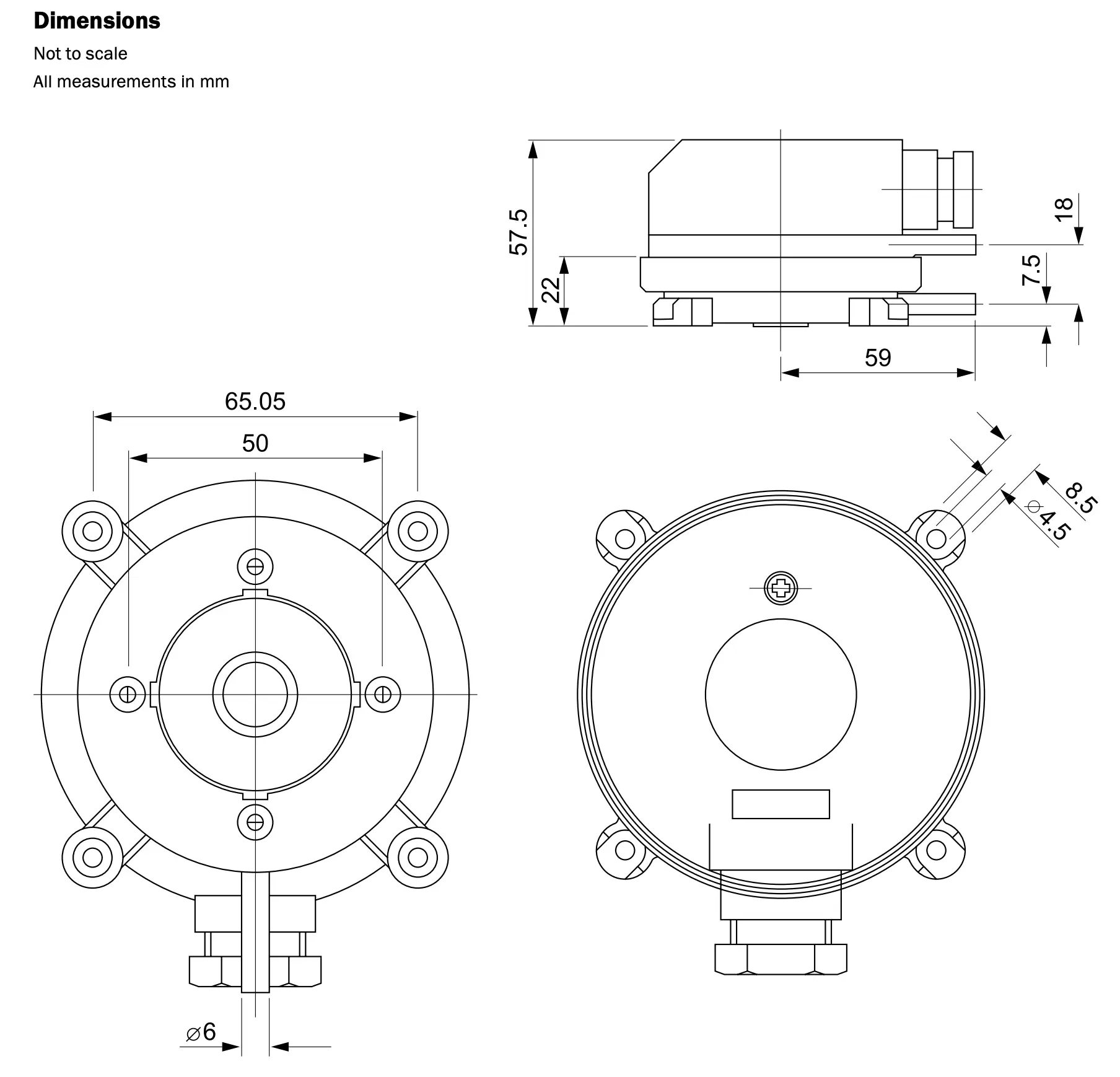

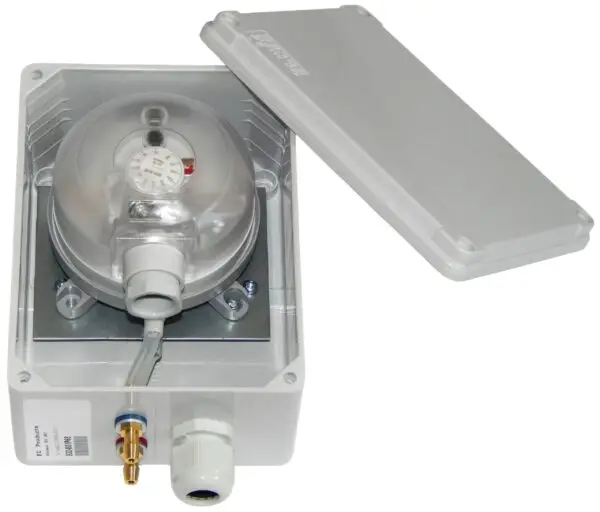

Protection: IP65 mounted in 150 x 110 x 75mm enclosure c/w nipples.
Ambient Range: -20ºC to +85ºC
Installation Category: IEC 664 Category II
Pollution Degree: IEC 664 Degree 1
Replace your old pressure sensor and Pitots.
Replace your old weathered sensor https://hvacproducts.co.uk
PDF Datasheet
Datasheet
Additional information
| Pressure |
20-300Pa, 50-500Pa, 200-1000Pa |
|---|
