Liquid, Pressure Products
Liquid Differential Pressure Switch LDP
£116.00 Exc. VAT
Please select the Pressure range required from below
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description

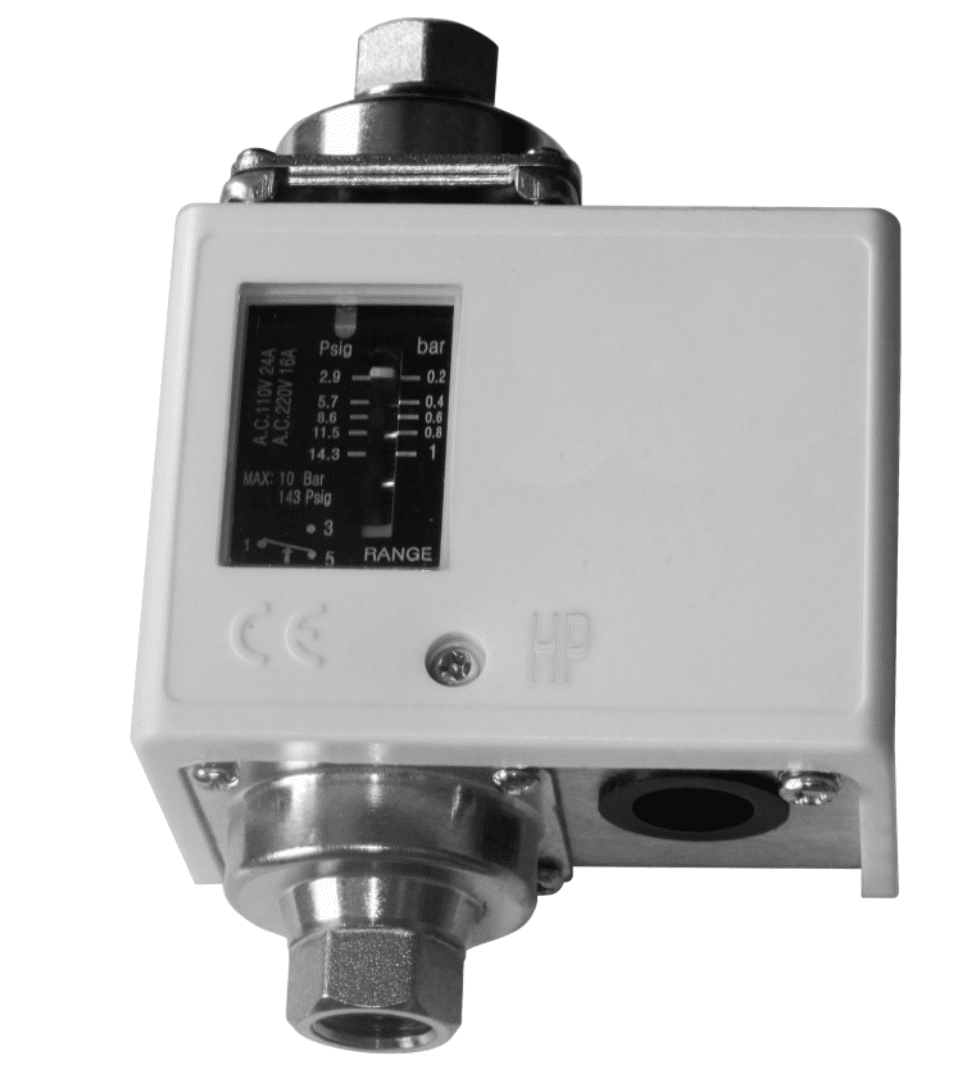

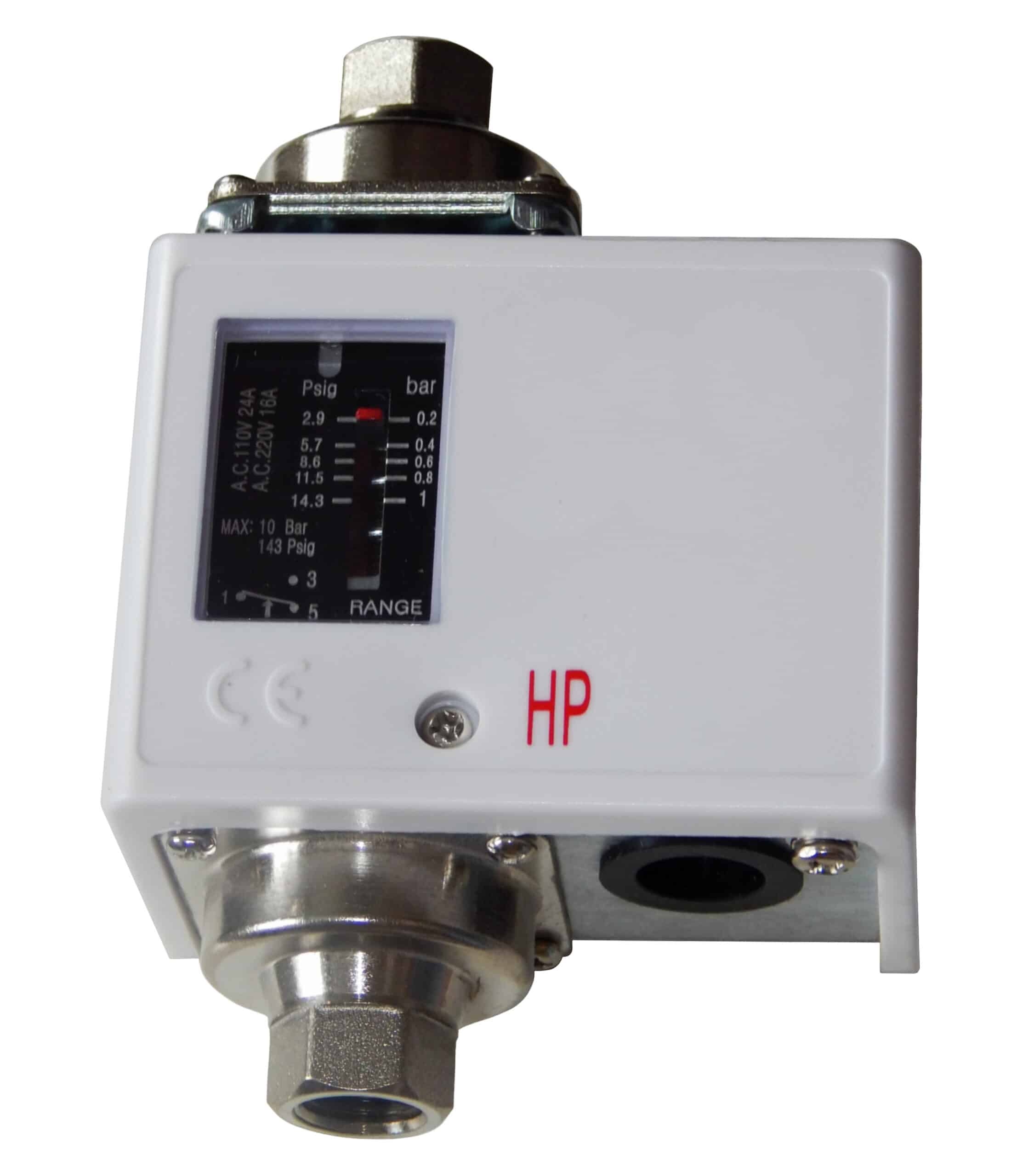

The LDP series is a differential pressure switch that makes a contact output based on the difference between two pressure sources.
Wetted materials of brass and fluoroelastomer are suitable for use with most gases and water-based solutions.
The switch can be used to indicate low differential pressure with a set point for a decrease in pressure.
Business & Industrial > Automation Control Components
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 16 × 11 × 6 cm |
| Pressure | 0.17-0.69 Bar, 0.69-1.72 Bar, 1.72-3.45 Bar |
