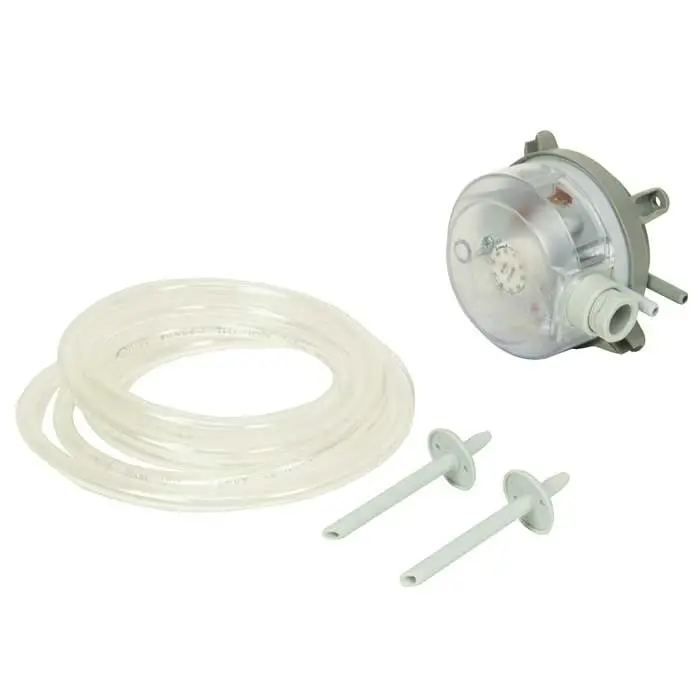

Air Differential Pressure Switch with Duct Kit
£19.00
Please select your pressure range from the below options
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
The 930 range of air differential pressure switches is suitable for low-differential-switching applications and is ideal for indicating fan status or ‘filter dirty’ conditions.
Specification
Max. Operating Pressure: 50 mbar
Pressure Connections: 6mm ID push-on tubing
Electrical Rating: 1.5A (0.4) @ 250Vac
Approvals: Switch according to VDE0630UG1652
Connections: Via 0.25” receptacles
Cable Entry: M20
Housing Material: Plastic moulding
Protection: IP54
Ambient Range: -20ºC to +85ºC
Installation Category: IEC 664 Category II
Pollution Degree: IEC 664 Degree 1
Replace your old pressure sensor and Pitots.
<
Datasheet
930
Additional information
| Weight | 0.56 kg |
|---|---|
| Dimensions | 8 × 7 × 5 cm |
| Pressure |
20-300Pa, 50-500Pa, 200-1000Pa |
