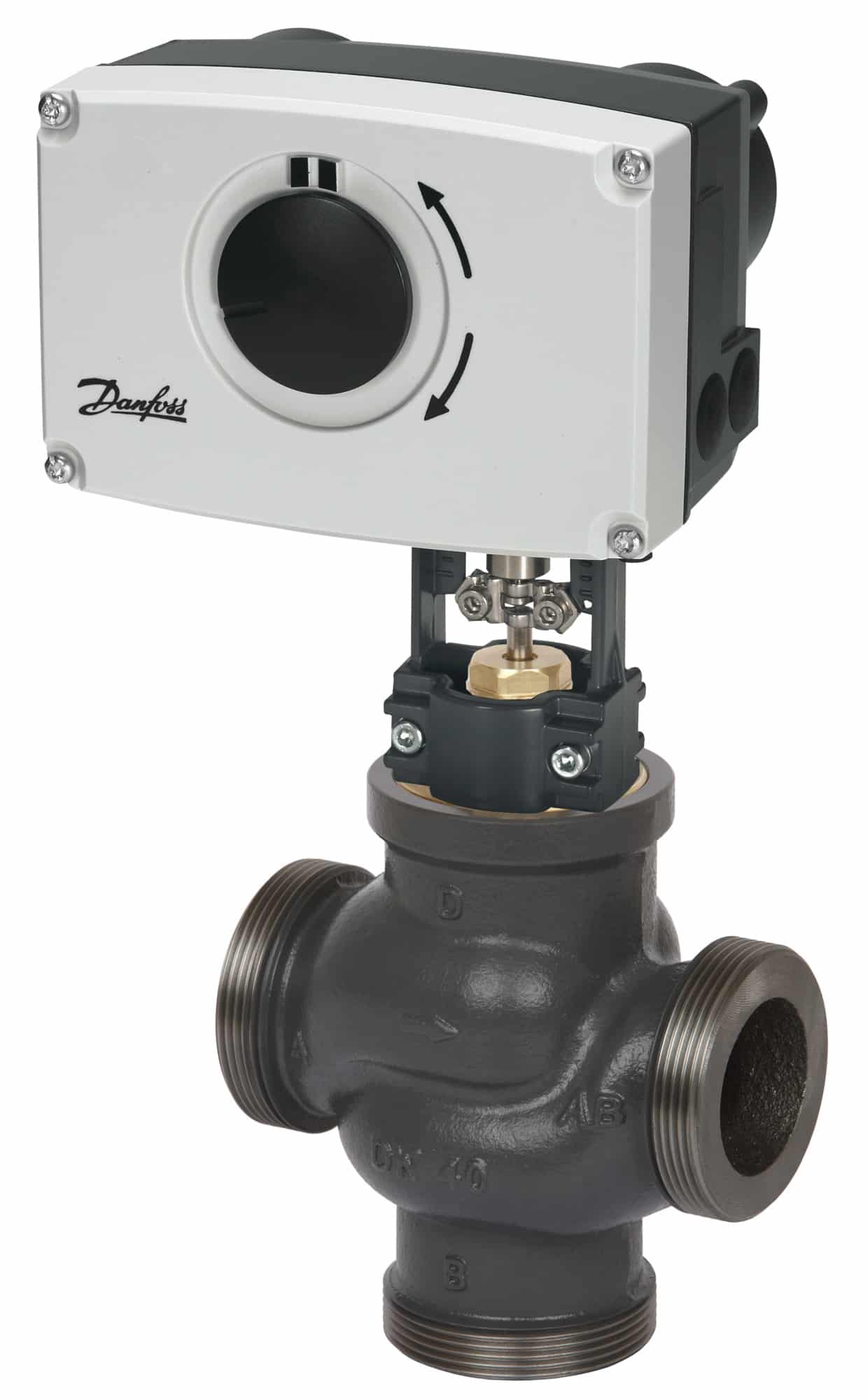

AMV 438 SU 24V 15s/mm 15mm 450N
| Gross weight |
2.402 Kilogram |
| Net weight |
2.402 Kilogram |
| Volume |
4.874 Liter |
| EAN |
5710104005270 |
| Type |
AMV 438 |
| Product group |
Gear actuators |
| Actuator speed [s/mm] |
15 s/mm |
| Actuator type |
Electrical |
| Ambient temperature [°C] [max] |
55 °C |
| Ambient temperature [°C] [min] |
0 °C |
| Application |
HVAC |
| China RoHS compliance |
Out of scope |
| Closing force [N] |
450 N |
| Contains batteries |
No |
| Control signal type |
3-point |
| Description |
AMV 438 SU 24V 15s/mm 15mm 450N |
| EU RoHS compliance |
Yes with exemptions |
| EU RoHS exemption clause |
6(c) |
| IP protection class |
IP54 |
| Manual operation |
Yes |
| Position feedback |
no – potentiometer needed |
| Power consumption [W] |
12 W |
| Protection Class of the Coating |
II |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| Safety function |
Yes |
| SCIP dossier no. |
709f2fca-a1c4-4b25-8629-a1bcca55ce69 |
| SCIP dossier product name |
AMV(E) 438 SU |
| Speed type |
Standard |
| Spring down (return) |
No |
| Spring up |
Yes |
| Storage temperature [°C] [Max] |
70 °C |
| Storage temperature [°C] [Min] |
-40 °C |
| Stroke [mm] |
15 mm |
