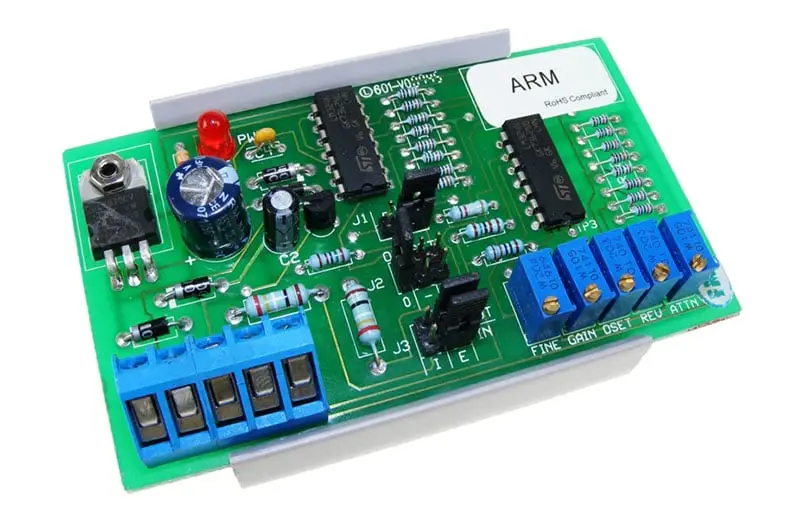

Analogue Rescaling Module – ARM
£125.00

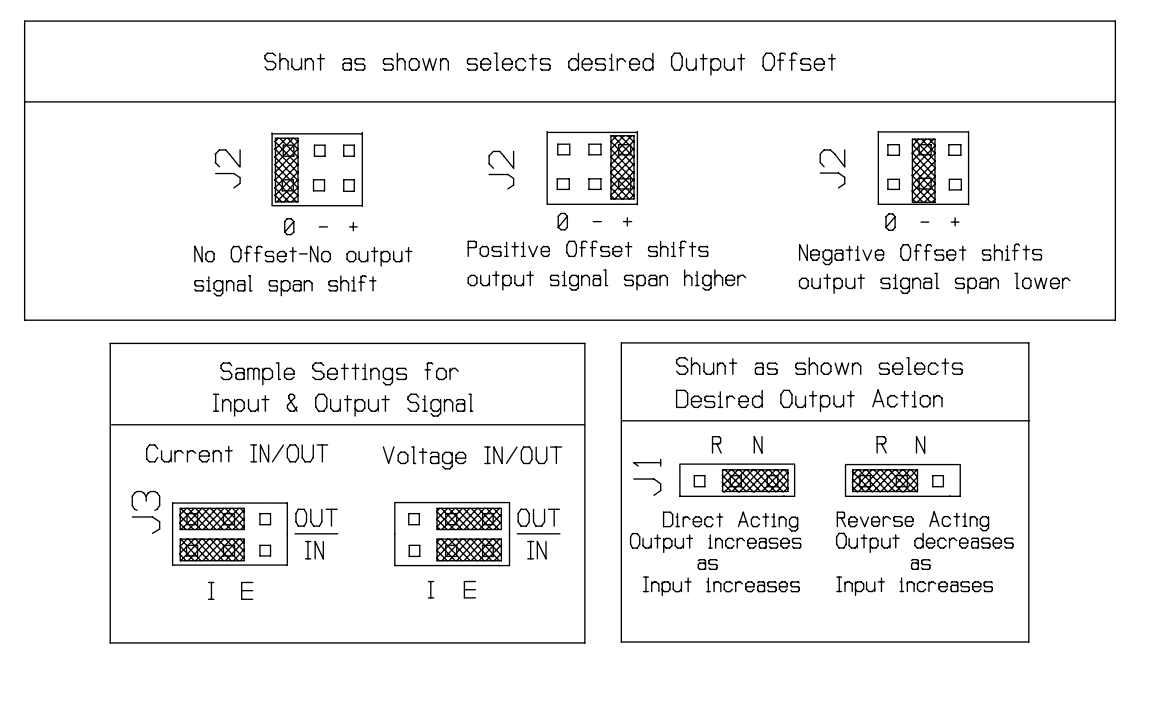

The ARM analogue re-scaling module accepts voltage or current inputs and rescales them to voltage or current outputs. A range of preset values is link-selectable, and fine adjustments can be made using trim potentiometers.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
The ARM analogue re-scaling module accepts voltage or current inputs and rescales them to voltage or current outputs. A range of preset values is link selectable, and fine adjustments can be made using trim potentiometers.
The ARM can also reverse the signal. Units are supplied in a DIN rail mounting housing.
Specification
Input signals: 0 to 35Vdc / 0 to 44mA
Ambient range: -10°C to +50°C
Output signals: 0.25 to 20Vdc / 1 to 44mA
Power supply: 24Vac/dc @ 200mA max.
Dimensions: 94 x 55 x 26mm
Additional information
| Weight | 0.31 kg |
|---|---|
| Dimensions | 6 × 8 × 5 cm |
| Amps |
4A, 6A, 8A |
