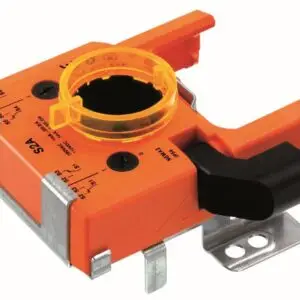

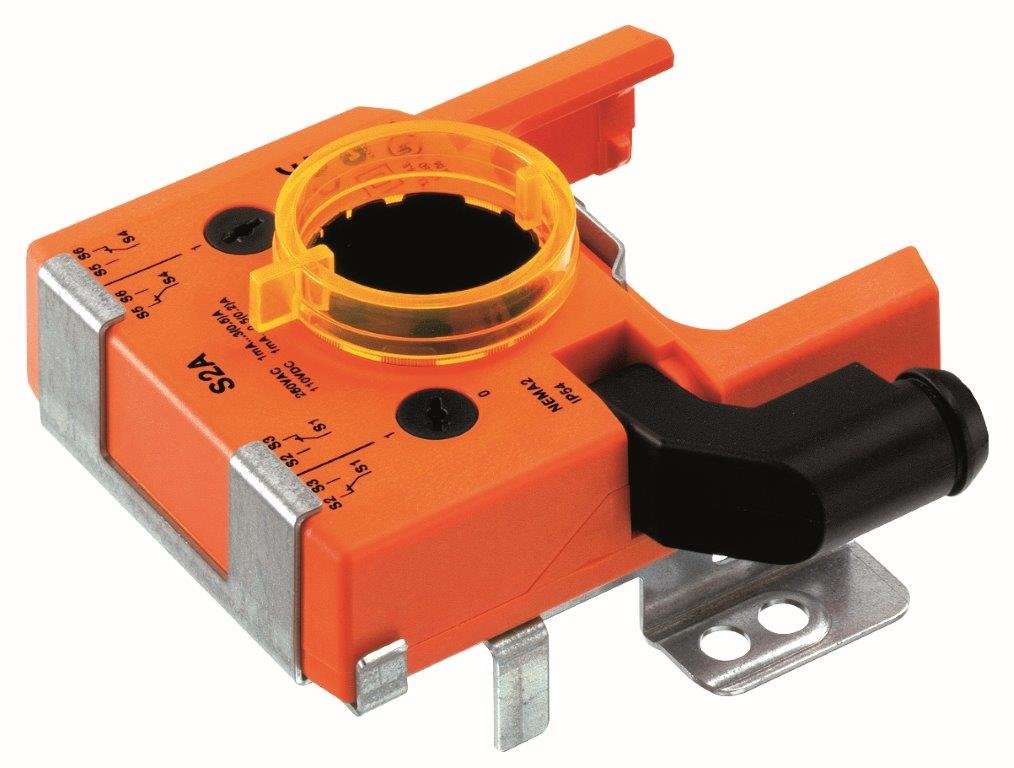

Auxiliary Switch 2 x SPDT S2A-F
£46.00
Auxiliary switch unit, suitable for the spring-return actuators NF..A.., SF..A.., LF.. Use with the LF, NF, and SF actuators.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Auxiliary switch unit, suitable for the spring-return actuators NF..A.., SF..A.., LF..
Use with the LF, NF, and SF actuators.
Specification
Auxiliary Switch: 2 x SPDT, 0…100% adjustable
Switching Capacity Auxiliary Switch: 1mA…3 (0.5 inductive) A, AC 250V (II reinforced insulation), 1mA…0.5 (0.2 inductive; L/R = 3.4ms) A, DC 110V (II reinforced insulation).
Switching Points Auxiliary Switch: Adjustable across the entire range of rotation 0…1 of the actuator. Pre-setting with scale possible.
Connection auxiliary switch: Cable 1m, 6 x 0.75mm²
Additional information
| Cable Length |
10 Meters, 15 Meters, 5 Meters |
|---|
