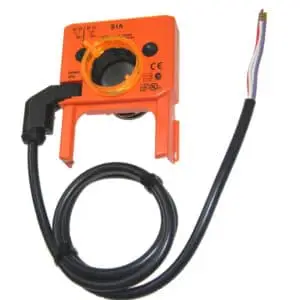

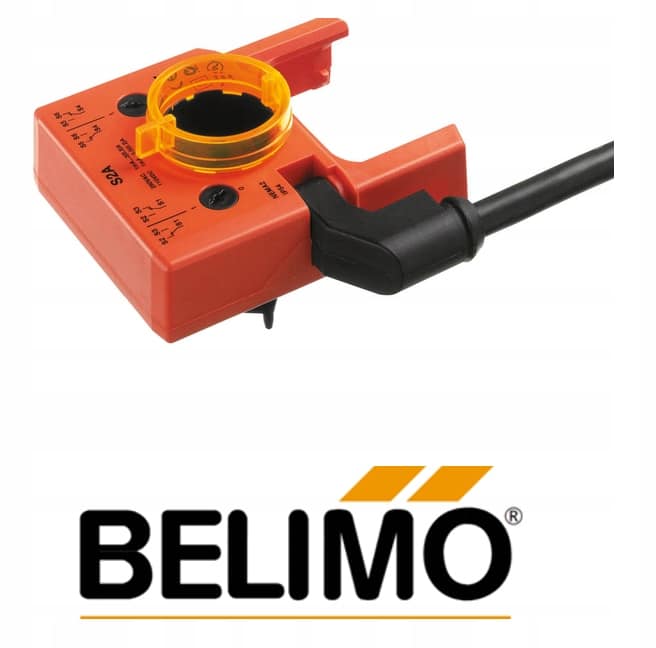

Auxiliary Switch 2 x SPDT S2A
£54.00 Exc. VAT
Auxiliary switch for damper actuators and rotary actuators. Use with the LM, NM, SM, GM, and GK actuators.
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Auxiliary switch for damper actuators and rotary actuators.
Use with the LM, NM, SM, GM, and GK actuators.
Specification
Auxiliary Switch:                                                             2 x SPDT, 0…100% adjustable
Switching Capacity Auxiliary Switch:         1mA…3 (0.5 inductive) A, AC 250V (II reinforced insulation), 1mA…0.5 (0.2 inductive; L/R = 3.4ms) A, DC 110V (II reinforced insulation).
Switching Points Auxiliary Switch:             Adjustable across the entire range of rotation 0…1 of the actuator. Pre-setting with scale possible.
Connection auxiliary switch:                                      Cable 1m, 6 x 0.75mm²
Additional information
| Cable Length | 10 Meters, 15 Meters, 5 Meters |
|---|
