Flow and Level Control, IO Modules
CIM 200 Modbus Interface Module For Magna3 Range
£369.00
CIM 200 is a standard interface for data transmission between a Modbus RTU network and a Grundfos pump
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description

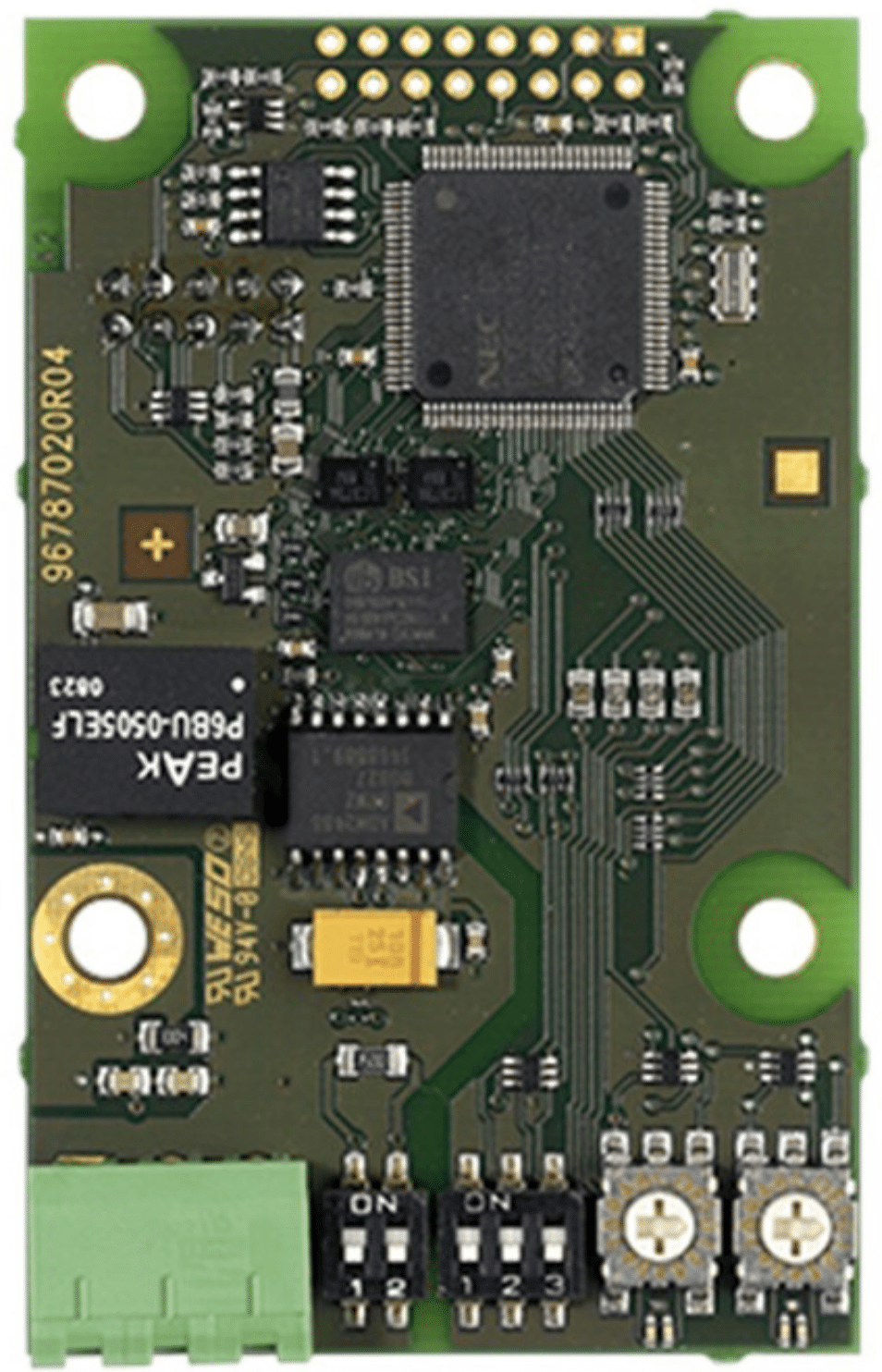

The CIM 200 is a standard interface for data transmission between a Modbus RTU network and a Grundfos pump. It enables data exchange between a Grundfos pump and a PLC/BMS or SCADA system via high level Modbus communication.
Extensive amounts of data points are available from each product via the CIM 200. The interface offers uncomplicated system integration with both new and legacy systems, as the Modbus RTU protocol is widely supported by existing control systems and PLCs.
The CIM 200 is an add-on communication module installed internally in the Grundfos product.
Product name: CIM 200 MODBUS RTU
Product No: 96824796
EAN number: 5700311213797
