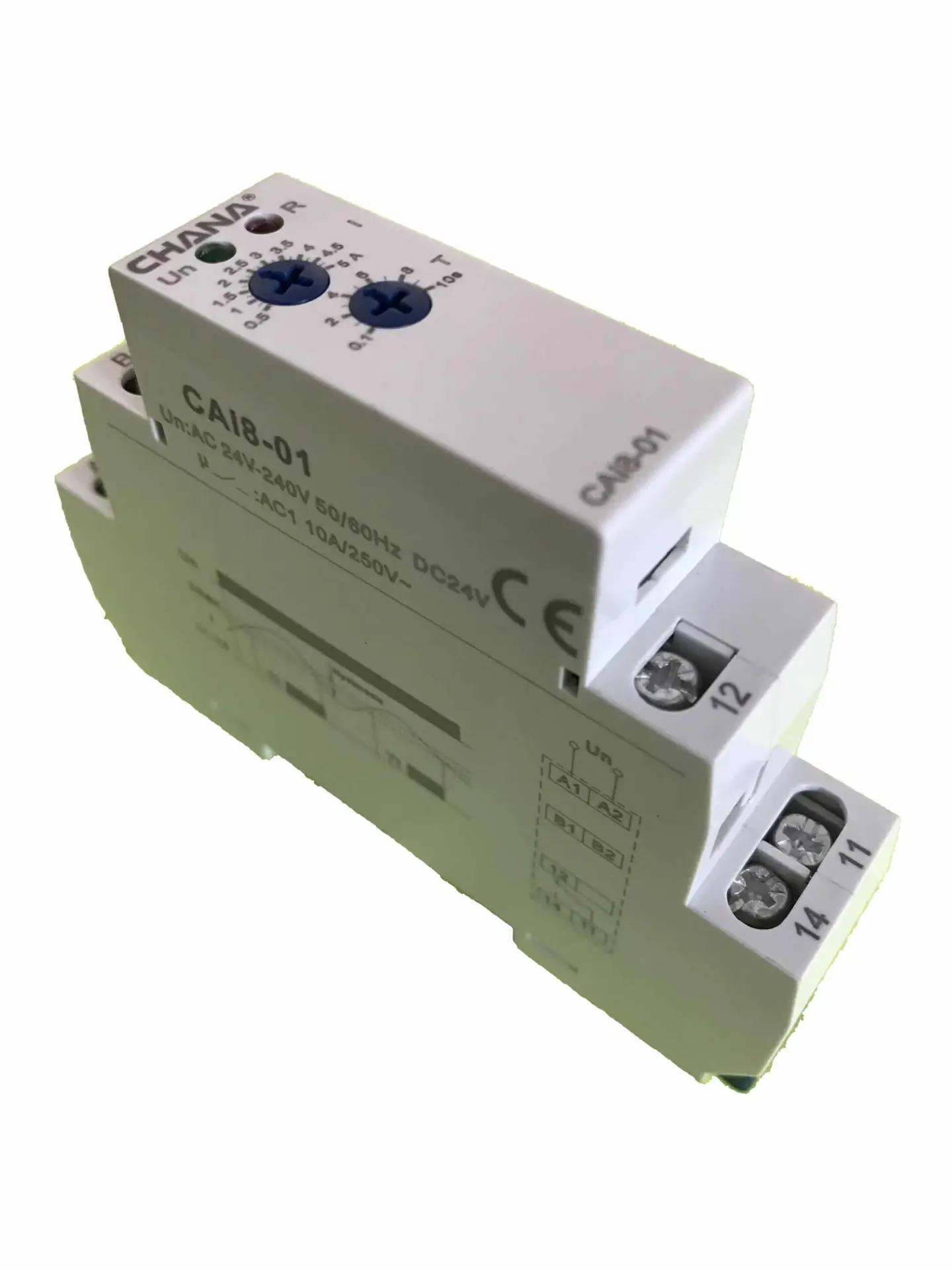

Current Monitoring Relay
£35.00 Exc. VAT
The Current Monitoring Relay is designed to monitor Current to equipment and can be set to switch the voltage-free contact at a set current.
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
The Current Monitoring Relay is designed to monitor Current to equipment and can be set to switch the voltage-free contact at a set current. There is an adjustable time delay to eliminate current peaks. It can also be used with a current transformer to monitor higher currents. It has an LED indicator and is DIN rail-mountable.
Specification
Supply Voltage:                24 – 240Vac, or 24Vdc
Frequency:                    50 – 60Hz
Current Range:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0.5 to 5 Amp
Time Delay:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0.1 to 10 seconds
Contact Rating:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 10 Amps (AC1)
Contact:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â SPDT
Additional information
| Types | CSW-NO-ASD, CSW-NO-ASD2, CSW-NO-ASP, CSW-NO-ASP2, CSW-NO-FSD, CSW-NO-FSP |
|---|
