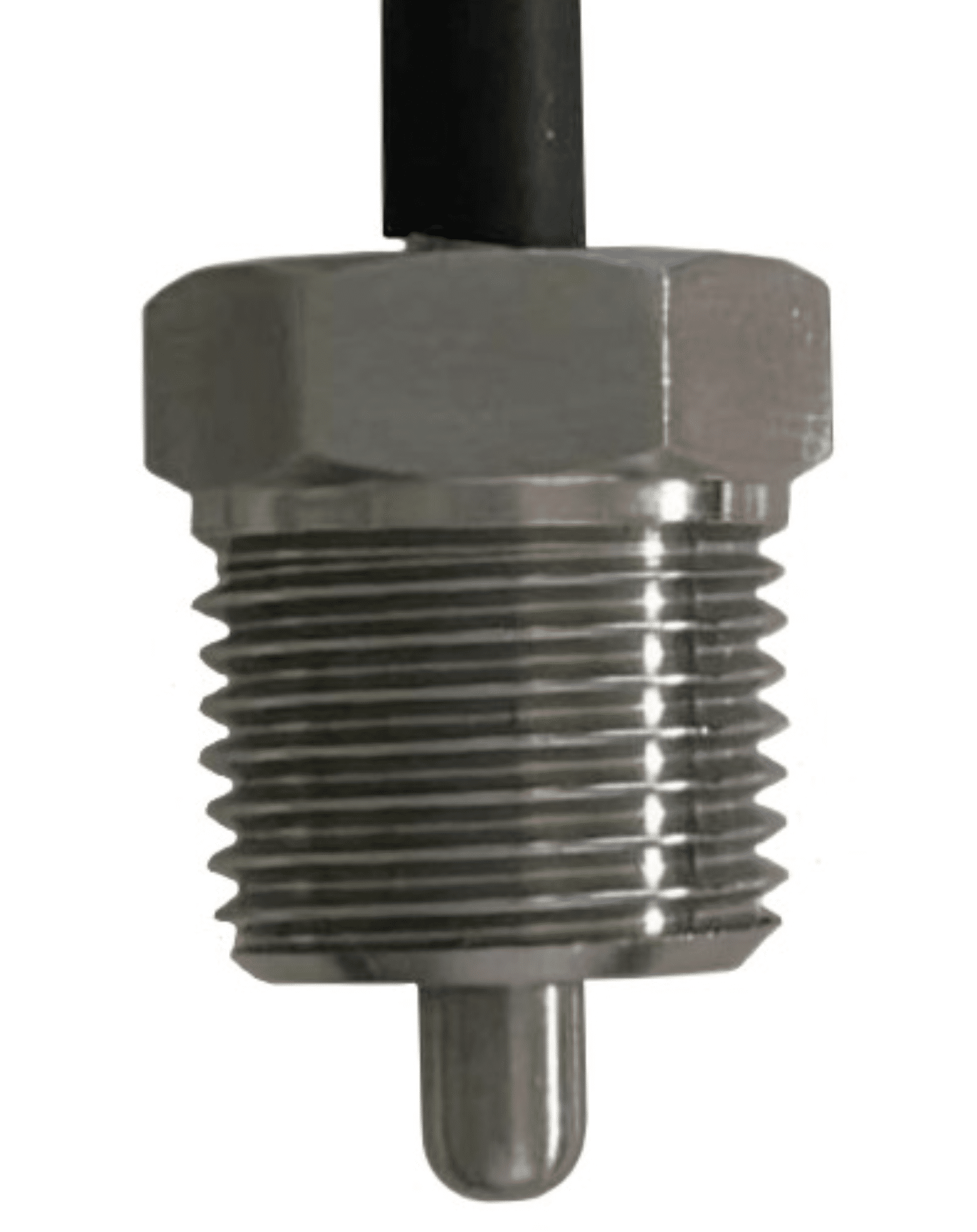

Direct Insertion Sensor for 32mm pipe

The Direct Insertion Temperature Sensor is for installing in a T piece on small pipework without the need for a pocket, eliminating the possibility of a dead leg.

Direct Insertion Sensors are designed for precise temperature measurement in various applications.
They are typically used in small pipework and do not require a pocket, which helps avoid dead legs.
These sensors are made from materials like platinum, which provide a stable, repeatable relationship between temperature and resistance.
They are suitable for measuring temperatures in liquids used for process control, effluent treatment, and water treatment.
The sensors are available in different models, including RTD’s and PRT’s, with options for PT100 or PT1000 temperature sensors.
They are rated to a maximum temperature of 250°C and are not recommended for temperatures exceeding 300°C.

Specification

Type:                        10K3A1, 10K4A1 , TAC 1.8K, SAT1, 3K3A1, 20K6A1, 30K6A1 , 50K6A1, Pt100, Pt1000 and Ni1000TK5000
Pipe Size (mm):    32
Protection:             IP65
Termination:          Flying Lead
Temperature:       -10 to 100°C
Fitting:                     32mm Pipe L=34mm
Probe:                         316 Stainless Steel
Cable Length:        1 Meter

TE-DI

Temperature Resistors Chart
