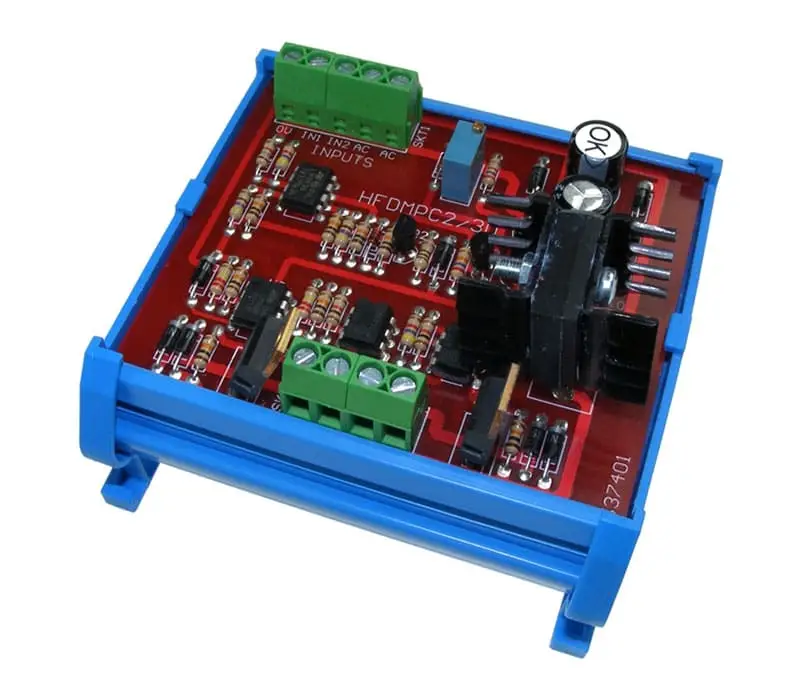

Dual Phase Cut Module 30VA per channel – IOPC2
£92.00
The IOPC2 converts two 0-10V DC input signals to drive two separate 0-20V 50Hz phase-cut outputs, at 30VA per channel, for the control of small valve or damper actuators. The IOPC2 features an optoisolator that is powered from 24V ac (with a common connection to the input signal) and has Rising Clamp Screw Terminals. The output from the IOPC2 can be boosted to 60VA by using two IOPCA1, 1 per channel.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
The IOPC2 converts two 0-10V DC input signals into two separate 0-20V 50Hz phase-cut outputs, each delivering 30VA, for the control of small valve or damper actuators. The IOPC2 features an optoisolator that is powered from 24V ac (with a common connection to the input signal) and has Rising Clamp Screw Terminals. The output from the IOPC2 can be boosted to 60VA by using two IOPCA1, 1 per channel.
Specification

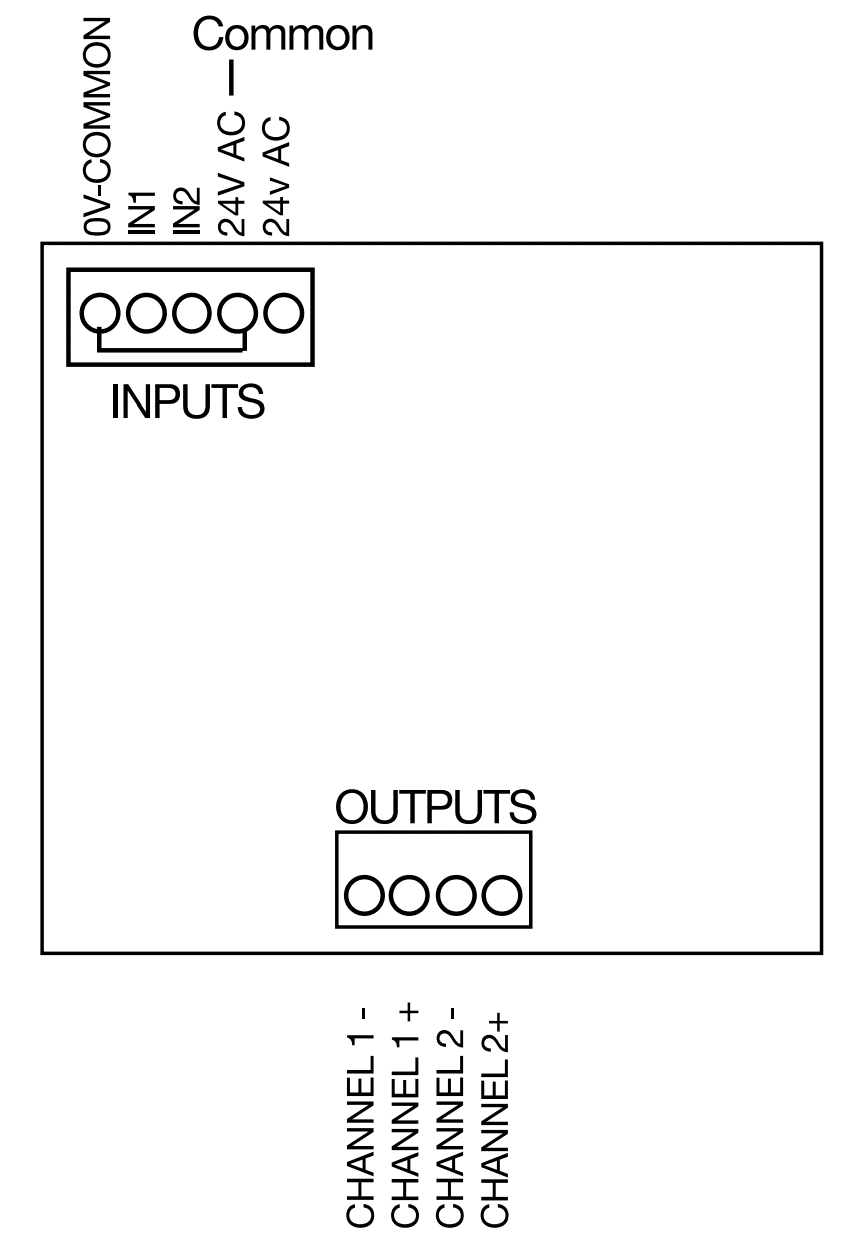

Input Signal: 2 x 0 – 10Vdc
Output Signal: 2 x 20V phase cut – 30VA per channel.
Power Supply: 24Vac (common to 0 – 10Vdc input).
Terminals: Rising clamp for 0.5 – 2.5mm² cable.
LED Indicators: ON when Power on.
Ambient Temp: 0 to 50˚C
Dimensions: 78 x 92.5 x 55mm (approx.)
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 33 × 10 × 5 cm |
| Amps |
4A, 6A, 8A |
