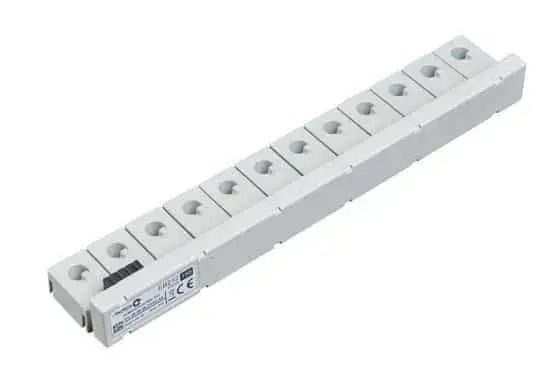

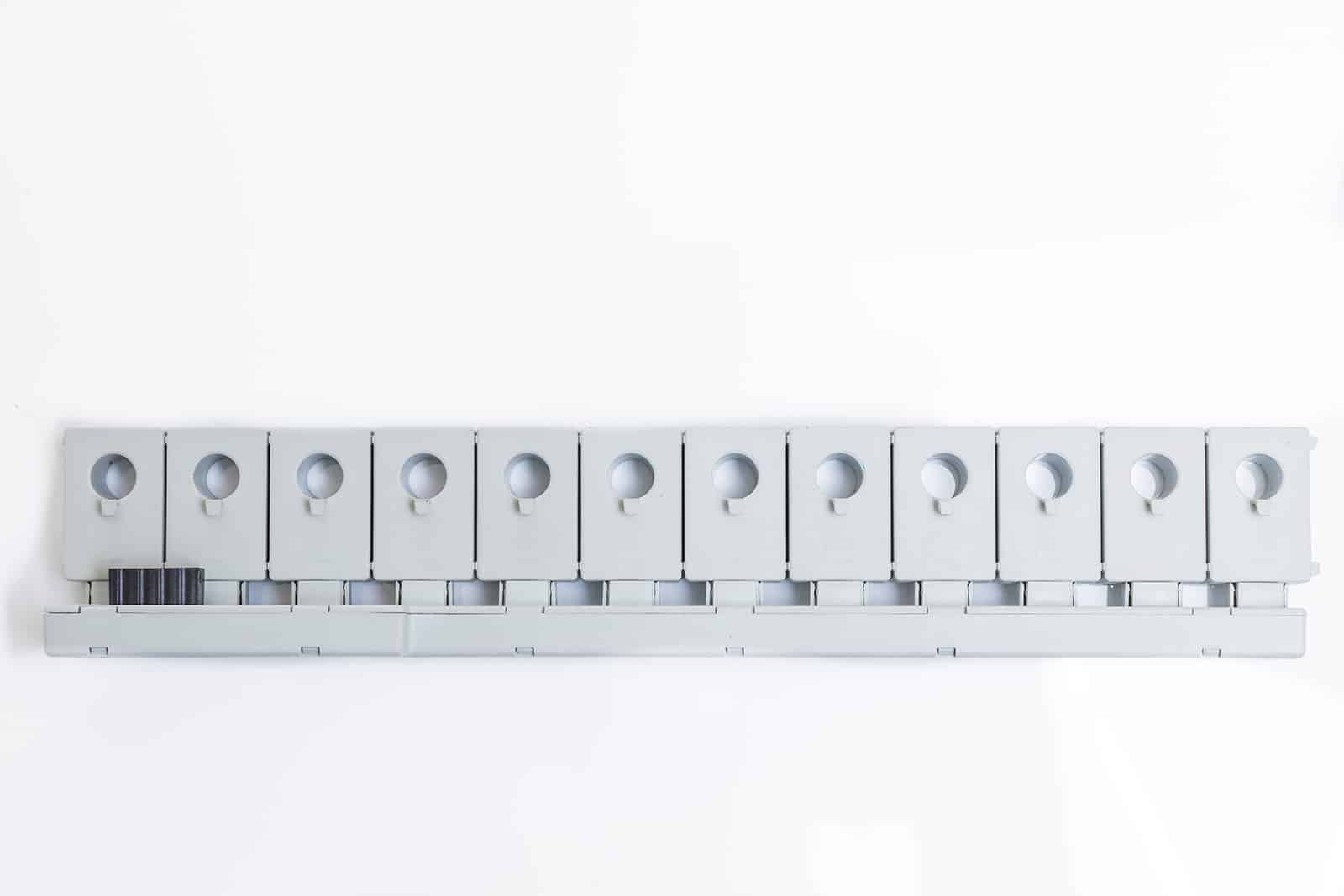

EB-312 Current Bar

The EB-312 Current Bar is a modular current meter formed of 2 parts:

• The bar (With Label) itself is a Modbus-enabled meter and is available in three sizes, supporting up to 12 input channels.
• The 12 Current Sensors (CTs) are pre-assembled with the EB Current Bar.

The EC is a current sensor for standard miniature circuit breakers (MCB).
It is designed to fit any type of IEC-standard MCB, Residual-Current Device (RCD), and Residual-current Circuit Breaker with Overload protection (RCBO) capable of measuring devices up to 40A.
The EC includes a current transformer (CT) with a turn ratio of 1:1000 and a burden resistor of 10Ω.
The EC does not interfere with or affect the MCB’s function.

• Fitted on top of all EU standard circuit breakers
• Output Values: A, °C (Environmental temperature)
• Device Bus: 12V DC
• Interface Protocol: Modbus RTU – 19200, 8, E, 1 (default settings)
• Available in 3 sizes: 3, 6, and 12 inputs
• mA current transformers (up to 63A)
• Accuracy: +/- 1% of full-scale signal @25°C
